Ridgid Tools 50075 14mm X 2 Iso High Speed 500B Dies

Product Description

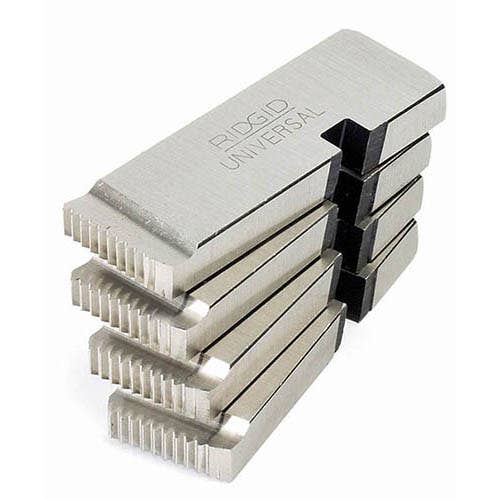

The RIDGID TOOLS 50075 is a set of 14mm x 2 ISO high speed (HS) threading dies designed for use with the RIDGID 500B die head. These dies cut clean, accurate ISO-standard external threads on pipe and round stock in 14mm diameter with a 2mm pitch. High speed steel construction provides durability and heat resistance during extended threading operations. Licensed plumbers, pipefitters, and mechanical contractors rely on these dies for consistent thread quality on threaded pipe connections in both new installation and retrofit work.

These threading dies are intended for use in commercial and industrial piping applications where ISO metric thread standards are required. The 14mm x 2 specification suits metric pipe and fastener work encountered in mechanical rooms, process piping, and imported equipment service. They are installed into a compatible 500B die head, which is then mounted to a RIDGID pipe threading machine or used manually depending on the job setup.

Key Features

• 14mm x 2 ISO metric thread specification for accurate metric external threading
• High speed steel (HS) construction for durability and extended tool life
• Designed for use with the RIDGID 500B die head
• Cuts clean, consistent threads in compliance with ISO metric standards
• Suitable for both machine-driven and manual threading operations

Compatibility

Designed for use with the RIDGID 500B die head for 14mm x 2 ISO metric threading applications.

Installation Notes

Threading dies should be installed and replaced by qualified pipefitters, plumbers, or mechanical trades familiar with pipe threading equipment. Ensure the threading machine or die head is fully powered down and de-energized before removing or installing dies. Apply cutting oil generously during threading to reduce heat buildup and extend die life. Inspect dies for wear or chipping before each use and replace as a set to maintain thread quality.

Technical Specifications

• Thread Size: 14mm x 2
• Thread Standard: ISO Metric
• Die Material: High Speed Steel
• Compatible Die Head: RIDGID 500B
• UPC: 095691500755

Standard Information

• Brand: RIDGID TOOLS
• Manufacturer Part Number: 50075
