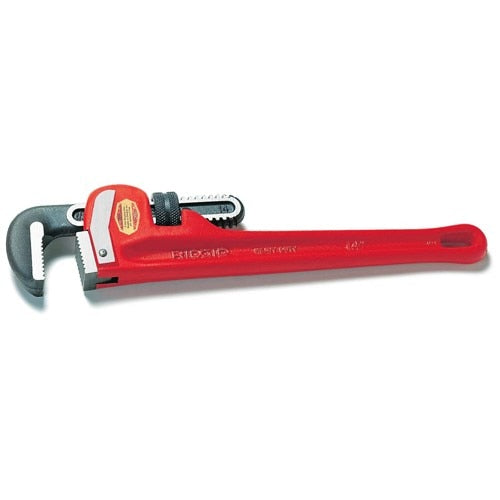

Ridgid R31020 Heavy-duty Straight Pipe Wrench 14 Inch

Product Description

The RIDGID R31020 is a heavy-duty straight pipe wrench built for professional plumbing, pipefitting, and mechanical work. Constructed with a cast-iron housing and I-beam handle, it delivers the rigidity needed for high-torque applications on threaded pipe and fittings. The full floating forged hook jaw maintains consistent gripping pressure throughout the turn. Self-cleaning threads keep the adjustment mechanism clear of debris, reducing binding on the job. The hook and heel jaws are replaceable, extending the service life of the tool. Overall length is 14 inches with a maximum pipe capacity of 2 inches.

This wrench is suited for residential and commercial plumbing, gas piping, and general mechanical applications where a reliable, full-size straight pipe wrench is required. It is the go-to tool for licensed plumbers and pipefitters working on iron, steel, or galvanized pipe installations, repairs, and tie-ins. The 14-inch OAL provides adequate leverage for 2-inch pipe without excessive bulk at the work site.

Key Features

• Cast-iron housing and I-beam handle for maximum rigidity under high-torque loads
• Full floating forged hook jaw provides consistent grip and reduces pipe damage
• Self-cleaning threads prevent debris buildup in the adjustment mechanism
• Replaceable hook and heel jaws extend tool service life
• Complies with federal specifications GGG-W65IE, Type II, Class A

Compatibility

Designed as a standard straight pipe wrench for use on threaded iron, steel, and galvanized pipe up to 2 inches in diameter.

Installation Notes

This tool is typically used by licensed plumbers and pipefitters. Always ensure the pipe or fitting is secured before applying torque. Inspect the jaw teeth and heel jaw for wear before each use and replace as needed to prevent slippage. Follow applicable IFGC and IPC guidelines when working on gas or water piping systems.

Technical Specifications

• Pipe Capacity: 2 inches
• Overall Length: 14 inches
• Weight: 3.69 pounds
• Handle Construction: I-beam
• Housing Material: Cast iron
• Jaw Type: Replaceable hook and heel jaws
• Compliance: Federal Specification GGG-W65IE, Type II, Class A
• UOM: Each

Standard Information

• Brand: RIDGID
• Manufacturer Part Number: R31020
