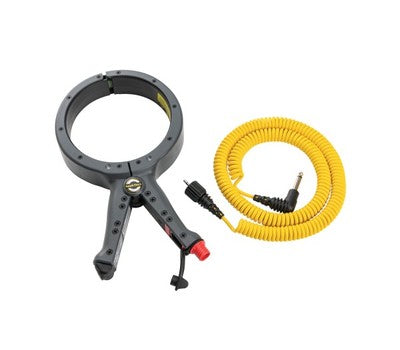

RIDGID 72963 Inductive Signal Clamp for SeekTech Line Transmitters

Product Description

The RIDGID 72963 Inductive Signal Clamp for SeekTech Line Transmitters allows users to apply a signal to a cable or pipe when direct connection is not possible. Compatible with all RIDGID SeekTech line transmitters.

• Applies signal to cable or pipe less than 4.7 inches in diameter
• Works with RIDGID SeekTech and other compatible transmitters
• Handles frequencies from 8 kHz to 262 kHz

Product Highlights

Use the RIDGID SeekTech Inductive Signal Clamp to effortlessly apply a signal to cables or pipes. The clamp features an ergonomic handle, a removable coiled cord, and a convenient pull tab for operation in tight spaces.

Product Information

Standard Information

• Brand: RIDGID
• MPN: 72963
• Product Name: Inductive Signal Clamp for SeekTech Line Transmitters
• Use: Apply signal to cable or pipe
• Compatibility: All RIDGID SeekTech transmitters

Technical Specifications

• Weight: 1.1 lb
• Height: 10.4 inches
• Width: 5.8 inches
• Depth: 1.5 inches
• Inside Diameter: 4.7 inches
• Cord Length: 2.5 ft
• Power Source: Line transmitter with max 10 watt if < 45 kHz, 1 watt if > 45 kHz
• Frequencies: 8 kHz to 262 kHz
