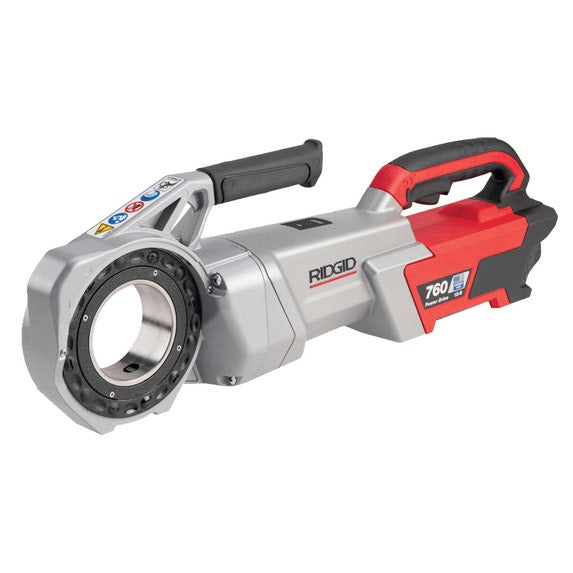

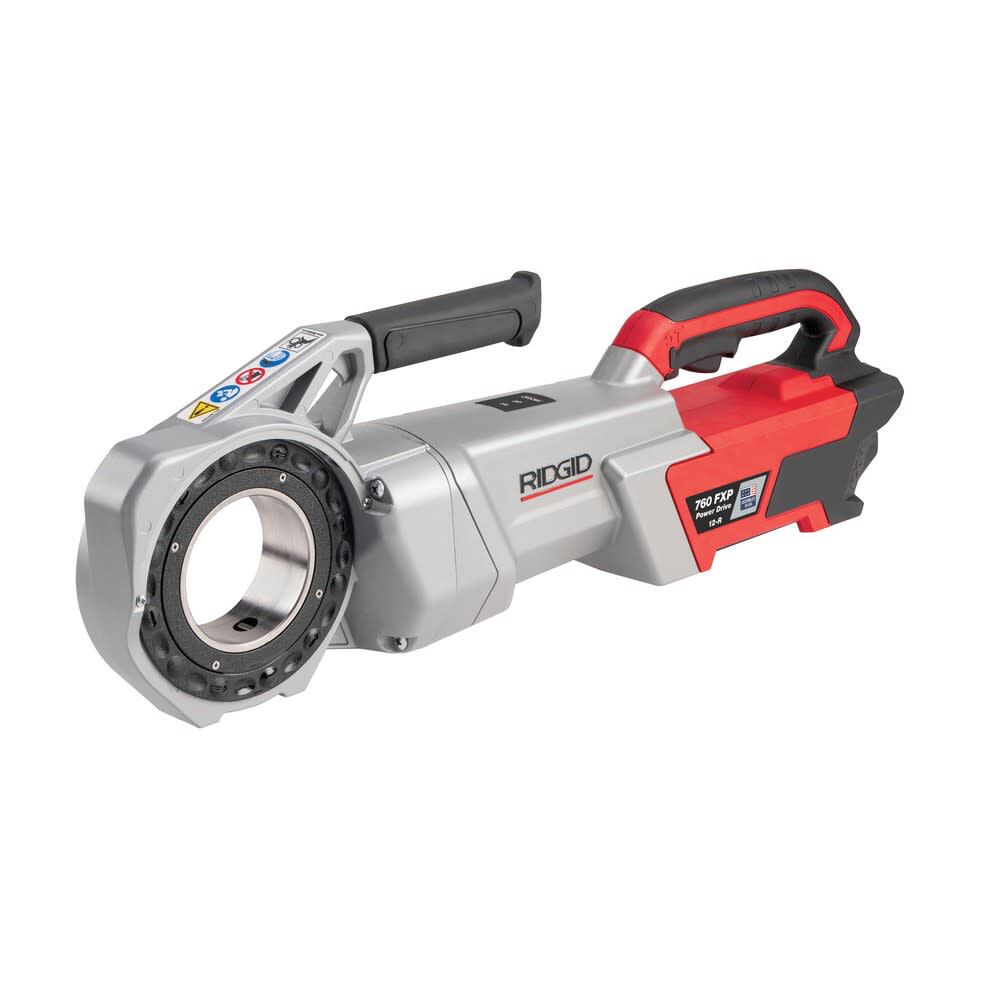

Product Description

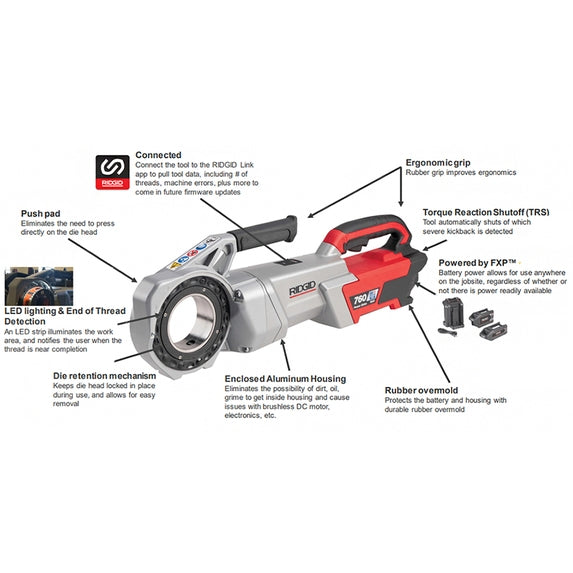

The RIDGID 72013 760 FXP Power Drive/Hand Held Threader threads pipe from 1/8 in to 2 in. Cordless freedom allows up to 30 2 in threads on a single charge. The tool automatically shuts off if kickback is detected, and an LED near the die head illuminates the work area.
- Cordless Freedom, complete up to 30 2 in threads on a single charge
- Tool automatically shuts off if kickback is detected
- LED near die head illuminates the work area
Product Highlights
The RIDGID 72013 is a cordless power drive threader with an anti-kickback safety mechanism and LED work light.
Product Information
Standard Information
-
Brand: RIDGID
-
Manufacturer Part Number: 72013
-
Country of Origin: United States
Technical Specifications
-
Die Head Type: NPT
-
Height [Nom]: 9.1 in
-

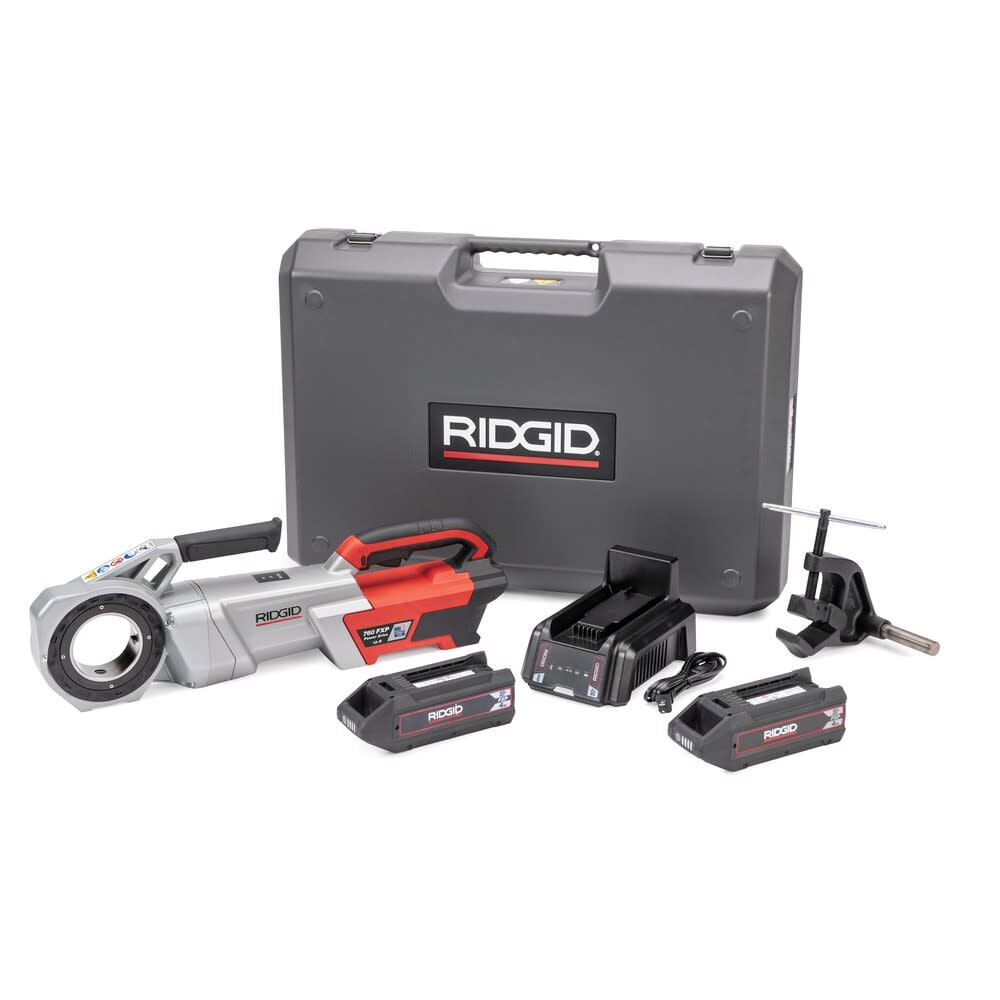

Includes: 2x 4Ah FXP Batteries, 760 FXP Power Drive, Case, FXP Charger, Support Arm
-
Length [Nom]: 27.8 in
-
Phase: Single
-
Pipe Cap. [Max]: 2 in
-
Pipe Cap. [Min]: 1/8 in
-
Speed [Nom]: 42 RPM
-
Type: Cordless Power Drive Threader
-
Width [Nom]: 5.2 in
-
Voltage: 60 V
-
Capacity: 1/8" to 2" Pipe
-
Power Source: Cordless
-
Product Type: Pipe Threaders
-
Batteries Included: 2
-
Item [Specifications]: Cordless Pipe Threader Kit
-
Chuck Type [Specifications]: Threading Die Heads
-
Free Speed [Specifications]: 42 RPM
-
Motor Type [Specifications]: Brushless DC
-
Reversible [Specifications]: Yes
-
Switch Type [Specifications]: Slide
-
Tool Series [Specifications]: RIDGID FXP 60V Series
-
Tool Weight [Specifications]: 24 lb
-
Machine Type [Specifications]: Portable Handheld Power Drive
-
Overall Height [Specifications]: 9.1 in
-
Battery Platform [Specifications]: 60V MAX
-
Housing Material [Specifications]: Aluminum/Glass Filled Plastic
-
Number of Speeds [Specifications]: 1
-
Maximum Bolt Size [Specifications]: 1 in
-
Minimum Bolt Size [Specifications]: 0.25 in
-
Battery Model Number [Specifications]: B-FXP40
-
Charger Model Number [Specifications]: RBC-FXP
-
Compatible Die Head Type [Specifications]: 12R
-
Maximum Compatible Pipe Size [Specifications]: 2 in
-
Minimum Compatible Pipe Size [Specifications]: 1/8 in
-
Number of Batteries Included [Specifications]: 2
-
Threading Equipment Included [Specifications]: Power Drive Only
-
Anti-Kickback Safety Mechanism [Specifications]: Yes
-
RPM: 42, no load
-
Weight: 24 lbs
-
Height: 9.1"
-
Length: 27.8"
-
Width: 5.2"
-
Body: Aluminum/Glass Filled Plastic
-
Pipe Threading Capacity: Pipe 1/8" tp 2" (3 to 50mm)
-
Bolt Threading Capacity: Bolt 1/4" to 1" (6 to 25mm) with 00-RB Die Head
-
Die Type: High Speed Dies Recommended
-
Watts: 1080W
-
Operating Speed (RPM): 42 RPM, no load
-
Dimensions: 27.8" x 5.2" x 9.1" (706mm x 132mm x 231mm)
-
Weight (no battery): 24lb
-
Voltage [Specifications]: 60 V
