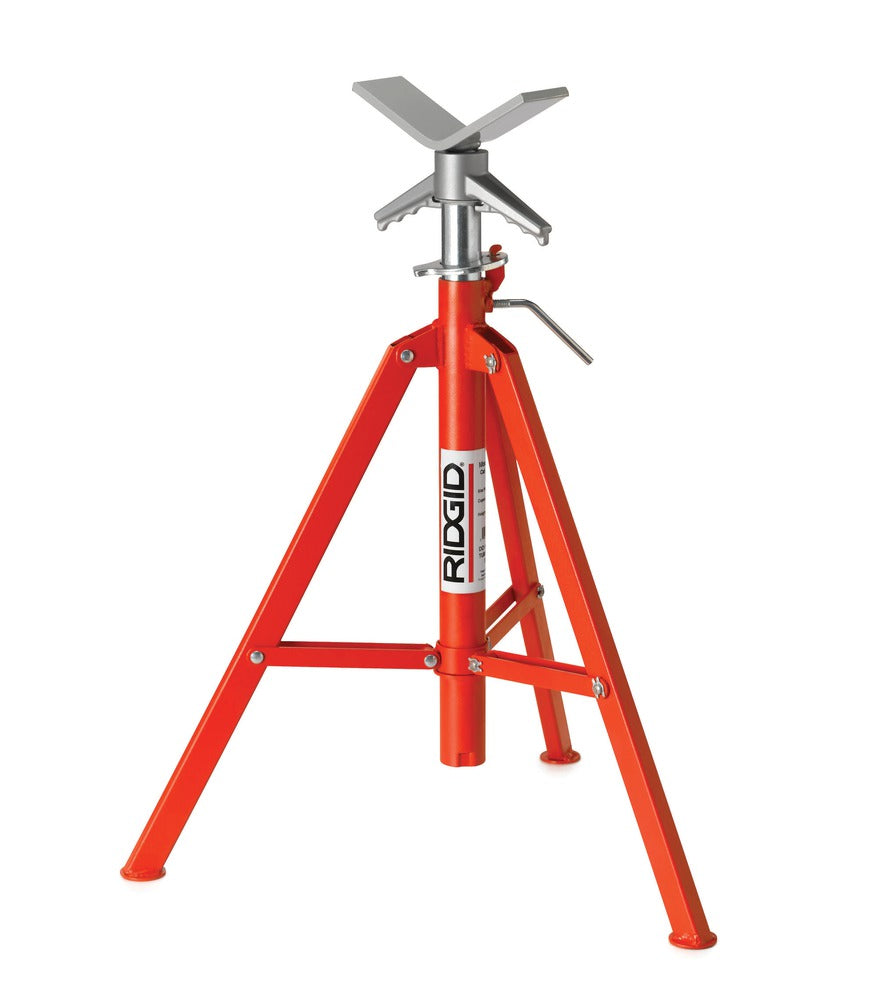

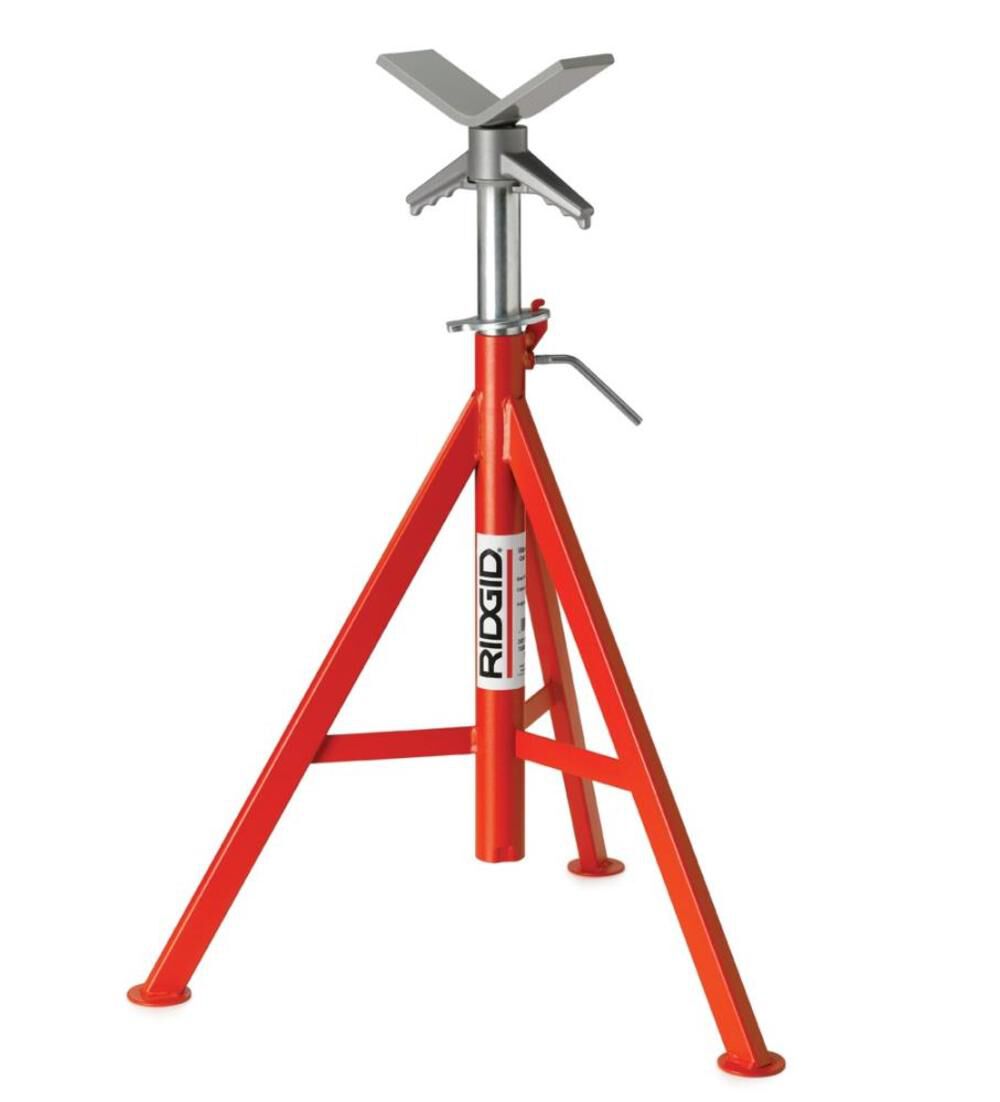

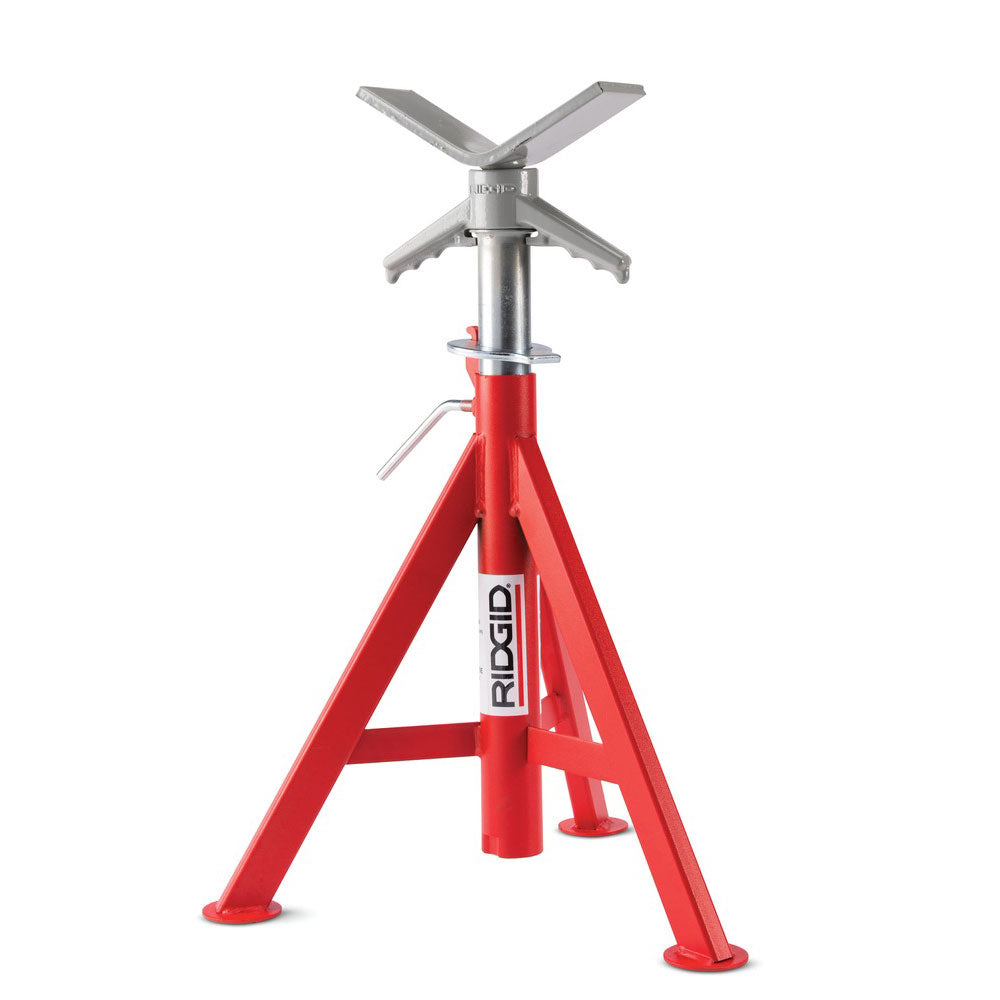

Ridgid Tools 56657 Stand, Vj98 V-Head Low Pi

Product Description

The RIDGID TOOLS 56657 V-Head Low Pipe Stand provides heavy-duty support for pipe working applications. It adjusts in height from 20 to 38 inches and supports up to 12-inch diameter pipe with a load capacity of 2500 lbs. The locking ring allows for quick vertical height adjustments.

• Adjustable height from 20 to 38 inches
• Supports up to 12-inch diameter pipe
• Features a locking ring for quick vertical height adjustments

Product Highlights

This steel constructed V-Head Low pipe stand is ideal for threading machines, roll grooving, and other pipe working applications.

Product Information

Standard Information

• Brand: RIDGID TOOLS
• Manufacturer Part Number: 56657
• Country of Origin: United States

Technical Specifications

• Type: V-Head Low
• Brand: Ridgid Tools
• Height: 20 - 38 Inch
• Material: Steel
• Applications: For Threading Machines, Roll Grooving or other Pipe Working Applications
• Load Capacity: 2500 lb
• MPN: 56657
• Pipe Capacity: 12 in
• Suitable for: Use with threading machines, roll groovers, etc.
• Base Style: Leg
• Model: VJ-98
• Height Adjustment Low-High in: 20 - 38
• Height Adjustment Low-High cm: 51 - 96
• Max. Pipe Capacity in: 12
• Max. Pipe Capacity mm: 300
• Max Weight Capacity lb.: 2,500
• Max Weight Capacity kg.: 1,134
• Weight lb.: 21
• Weight kg.: 9.5
• Head Type: V
• MFG Part # (OEM): 56657
• Safe Working Load (lbs): 2500
• Warranty Type: Lifetime against Manufacturer's Defects
