Product Description

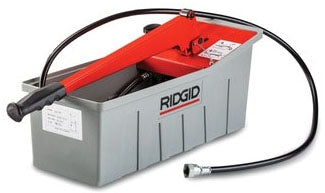

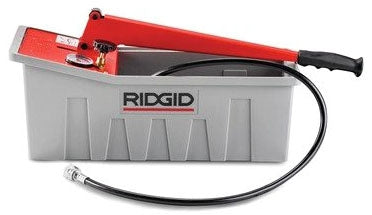

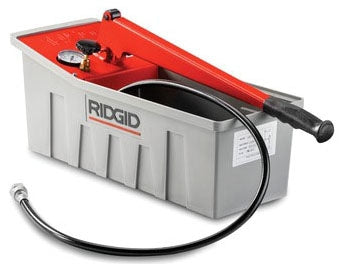

The Ridgid pressure test pump, model 50557, operates at a maximum pressure of 725 psi. This pump is designed for testing various piping systems for leaks. It is suitable for applications including heating, refrigeration systems, oil installations, and sprinkler systems.
- Overall size is twenty-eight inches in length, eight and one-half inches in width, and nine and one-half inches in height.
- End connection is one-half inch threaded.
- Features a two-stage lever action for efficient pressurization.
Product Highlights
This pressure test pump is user-friendly and requires minimal effort to operate. The pressure is maintained automatically, eliminating the need to close any valves manually. Additionally, it includes filters on both the inlet and outlet for better reliability.
Product Information
Standard Information
-
Brand: Ridgid
-
Model Number: 50557
-
Warranty: Full lifetime warranty
Technical Specifications
-
Application: Heating, Compressed Air, Refrigeration, Oil Installation, Sprinkler System, Small Bore Pipe
-
Displacement: 38 cubic centimeters
-
Reservoir Capacity: 3.6 gallons
-
Weight: 14 pounds
-
Temperature Rating: 120 degrees Fahrenheit
-
Piston Volume: 2.3 cubic inches
-
Number of Stages: 2
-
Pressure Rating: 725 psi
