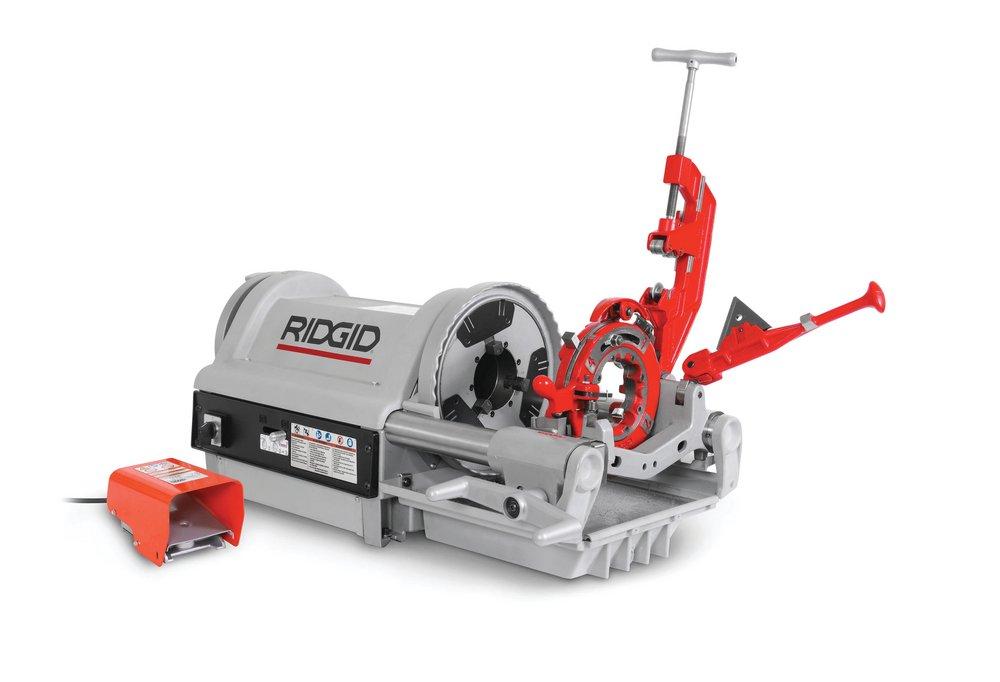

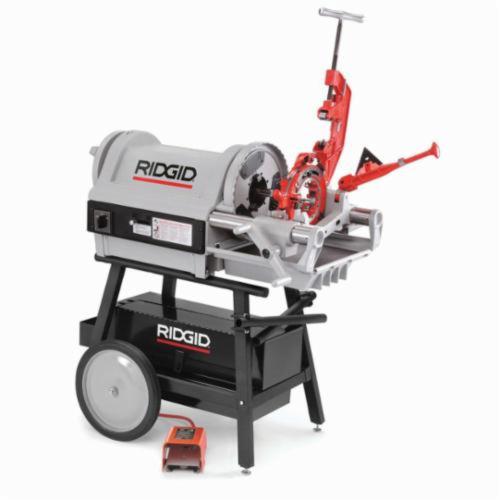

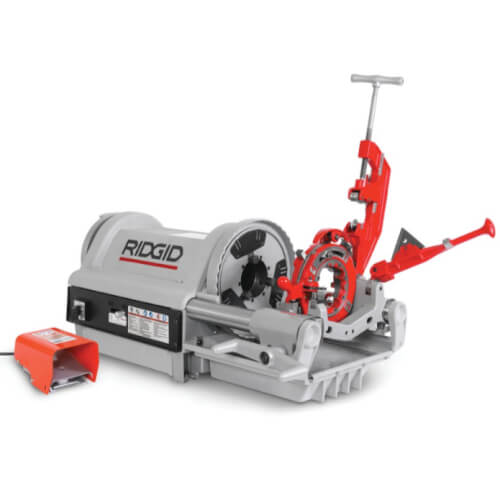

Ridgid 26092 Model 1224 Threading Machine 120V 1/4 to 4 Pipe Capacity

Product Description

The Ridgid 26092 Model 1224 Threading Machine is designed to thread a wide range of pipe, including black, galvanized, and plastic-coated pipes, stainless steel, IMC, and heavy-wall conduit. This machine also handles rod up to 30 Rockwell C.

• Threads 1/4 to 2 inches at 36 RPM and 2-1/2 to 4 inches at 12 RPM
• Induction motor ensures quiet operation
• Includes various die heads for different threading needs

Product Highlights

The model features an induction motor that minimizes noise, a robust capacitor-start/capacitor-run motor for handling a range of materials even with voltage drops, and constant lubrication through the die head for precise threading.

Product Information

Standard Information

• Brand: Ridgid
• MPN: 26092
• Name: Model 1224 Threading Machine
• Power: 120V
• Capacity: 1/4 to 4 inches

Technical Specifications

• Motor Type: Induction
• Speed: 36/12 RPM
• Voltage Rating: 120 V AC
• Horsepower: 1.5 HP
• Control Type: Heavy-duty rotary forward/off/reverse and integral foot switch
• Oiling Pump: Self-priming, gerotor-type, automatic-reversing, constant-flow
• Standards/Certifications: ANSI/UL listed, CSA certified
• Warranty: Lifetime
