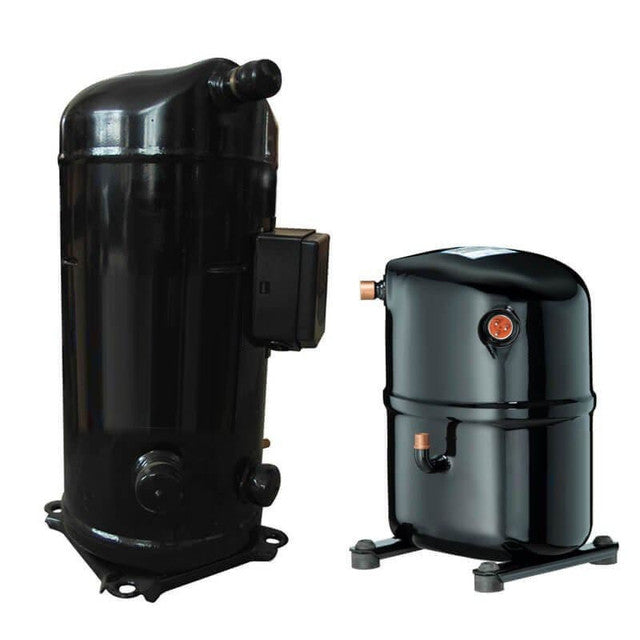

Rheem ZR42K5E-PFV-800 Copeland Scroll ZRK5 Series Compressor, 1-5 HP, R-22, R-407C, Single-Phase, 42200 BTU, 208/230 Volts

Product Description

The Rheem ZR42K5E-PFV-800 is a Copeland Scroll Compressor designed for use with R-22 and R-407C refrigerants. This compressor delivers a cooling capacity of forty-two thousand two hundred BTUs and operates on a voltage of two hundred eight to two hundred thirty volts. Its single-phase design makes it suitable for various HVAC applications.

• Cooling capacity: 42200 BTU
• Voltage range: 208-230 volts
• Type: Scroll compressor

Product Highlights

This model is designed to work efficiently in residential and commercial settings, providing reliable performance. It is compatible with both mineral refrigerant oil and modern switching applications.

Product Information

Standard Information

• Manufacturer: Rheem
• Part Number: 052214

Technical Specifications

• Kick Start: 42-KS1
• Run Capacitor (μF/V): 55/370
• Start Capacitor Capacitance (μF/V): 88-106/330
• Start Relay P/N: 42-25105-01
• Crankcase Heater Part Number: 44-17402-45
• Locked Rotor Current (A): 104.0
• Max Continuous Current (A): 31.0
• Overall Compressor Height (in): 16-7/16
• Mounting Base Dimensions (in x in): 7-1/2 x 7-1/2
• Refrigerant: R-22
• Frequency (Hz): 50-60
• Soundwrap (Brinmar): 68-25217-10
• Rated Load Current (A): 22.1
• Refrigerant Oil: Mineral (85-H2301)
• No of Phases: 1
