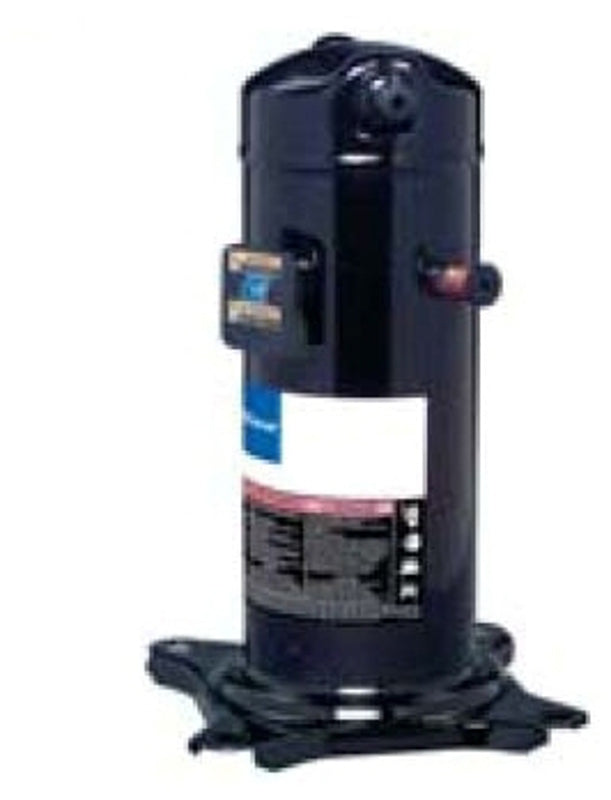

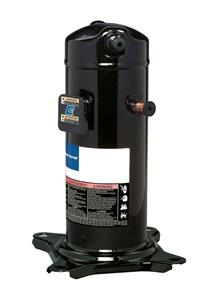

Rheem ZR38K5E-PFV-800 Hermetic Scroll Compressor

Product Description

The Rheem ZR38K5E-PFV-800 is a hermetic scroll compressor for residential and light commercial HVACR systems. This compressor is built using scroll technology, making it suitable for R-22 refrigerant systems. It offers a compact and lightweight design, making installation more manageable. The unit is charged with polyolester (POE) oil and includes built-in protection features.

• Scroll technology for efficient compression.
• Hermetic housing protects internal components from damage.
• Optimized for use with R-22 refrigerant.

Product Highlights

This compressor is ideal for HVACR applications and provides reliable cooling performance.

Product Information

Standard Information

• Brand: Rheem
• MPN: ZR38K5E-PFV-800

Technical Specifications

• Compressor Type: Scroll
• Compressor Housing: Hermetic
• Refrigerant: R-22
• Oil Type: Polyolester (POE)
• Voltage: 208-230 VAC
• Phase: Single
• Frequency: 60 Hz
• Rated Load Amps (RLA): 21.4
• Locked Rotor Amps (LRA): 112
• BTU Output: 36,600
• Mounting Type: 7-1/2 Inch x 7-1/2 Inch Base Mount
• Suction Line Fitting: Stub Out
• Suction Line Size: 7/8 Inch
• Discharge Connection Size (OD): 1/2
• Discharge Connection Type: Stub
• Weight: 64.9
• Length: 13.4
• Width: 14.8
• Height: 16.94
• Approvals: UL Recognized
• Displacement: 3.11 (in^3/Rev)
• Oil Charge Initial (oz.): 42
