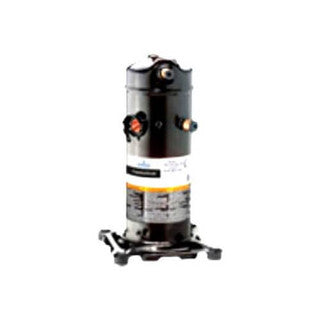

Rheem ZR25K5E-PFV-800 Copeland Scroll ZRK5 Series Compressor, 1-5 HP, R-22, R-407C, Single-Phase, 25300 BTU, 208/230 Volts

Product Description

The Rheem ZR25K5E-PFV-800 is a Copeland Scroll ZRK5 series compressor. It operates efficiently within a range of one to five horsepower. This compressor is suitable for R-22 and R-407C refrigerants, providing a cooling capacity of twenty-five thousand three hundred BTU. It connects to a voltage supply of two hundred eight to two hundred thirty volts and is designed for single-phase systems.

• Compatible with R-22 and R-407C refrigerants
• Provides a capacity of 25300 BTU
• Single-phase operation with input voltage of 208-230 volts

Product Highlights

This compressor supports a significant cooling capacity, suitable for various HVAC applications. It reduces the chances of overheating and maintains performance under different load conditions.

Product Information

Standard Information

• Manufacturer: Rheem
• Type: Scroll Compressor

Technical Specifications

• Kick Start: 42-TO5
• Run Capacitor (μF/V): 40/370
• Start Capacitor Capacitance (μF/V): 88-106/330
• Crankcase Heater Part Number: 44-17402-44
• Capacity BTU/hr: 25300
• Input Voltage (V): 208-230
• Locked Rotor Current (A): 68.0
• Max Continuous Current (A): 21.0
• Mounting Base Dimensions (in x in): 7.5 x 7.5
• Overall Compressor Height (in): 15.31
• Rated Load Current (A): 15.0
• Refrigerant: R-22
• Refrigerant Oil: Mineral (85-H2301)
• Soundwrap (Brinmar): 68-25217-10
• Frequency (Hz): 50-60
