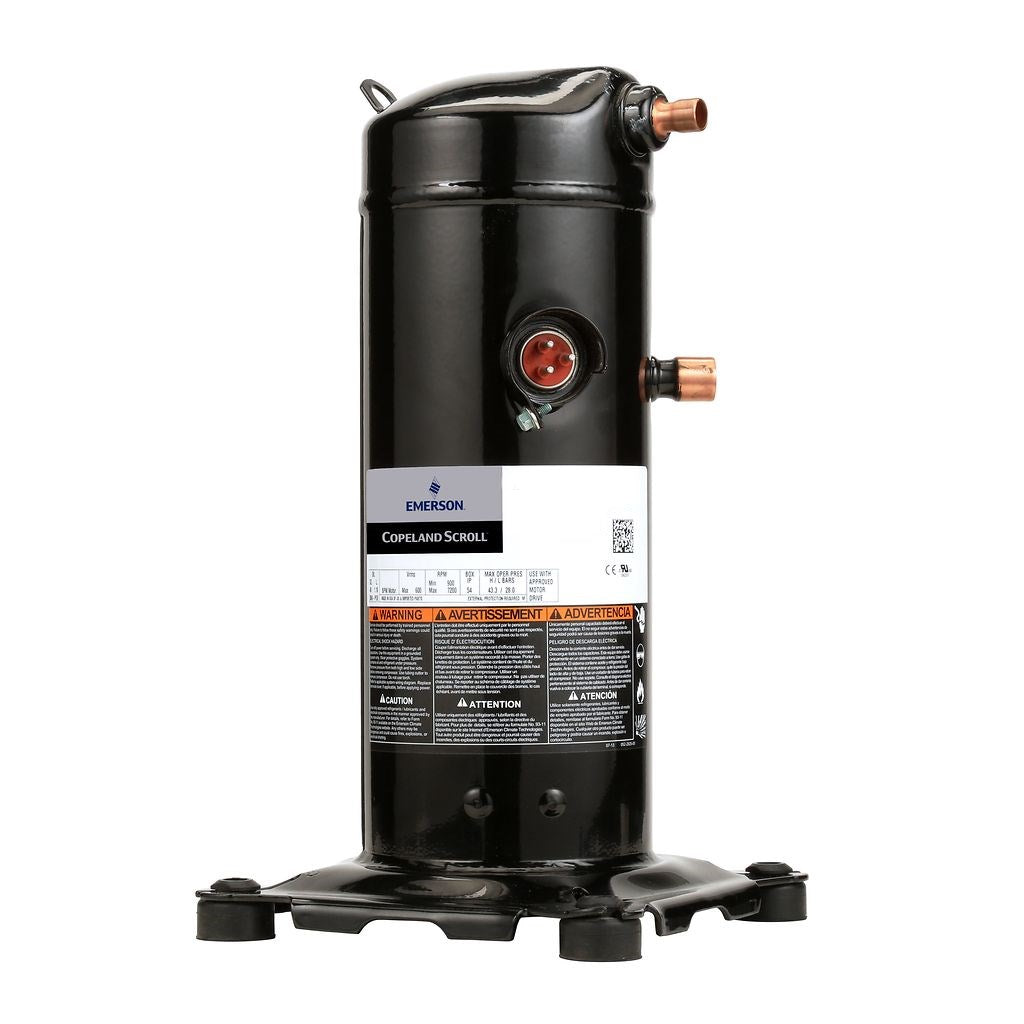

Rheem ZP31K5E-PFV-800 Scroll Compressor 31000 BTU/HR, 230V, 1 PHASE

Product Description

The Rheem ZP31K5E-PFV-800 is a genuine OEM replacement scroll compressor with a capacity of 31000 BTU/HR and operates at 230V, 1 Phase. This compressor is designed for use with R-410A refrigerant and is a direct factory replacement Copeland scroll compressor.

• 31000 BTU/hr capacity
• Operates at 230V, 1 Phase
• Uses R-410A refrigerant

Product Highlights

The Rheem ZP31K5E-PFV-800 scroll compressor is designed to compress refrigerants from a gas state into a liquid state for HVAC systems.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: ZP31K5E-PFV-800

Technical Specifications

• Manufacturer: Rheem
• Manufacturer #: ZP31K5E-PFV-800
• Parts Town #: RHMZP31K5E-PFV-800
• BTU Rating: 31000 Btu/hr
• Tonnage: 3 ton
• Voltage Rating: 208 to 230 VAC
• Amperage Rating: 13.5 A
• CFM Rating: 3.645 cfm
• Refrigerant Type: R-410A, HFC
• Series: ZP
• Suction Line Size: 3/4 in Stub
• Discharge Line Size: 1/2 in Stub
• Power Rating: 3070 W, 2-1/2 hp
• Speed Rating: 3500 rpm
• Sound Level: 68 to 73 dBA
• Temperature Rating: 45 to 50 deg F Evaporator, 100 to 130 deg F Condensing, 65 to 70 deg F Return Gas, 85 to 115 deg F Liquid
• Compressor Oil: POE-AK/DA, 3MA/SP32
• Flow Rate: 459 to 525 lb/hr
• Type: Scroll
• Input Voltage (V): 208 / 230
• No. of Phases: 1
• Freq. (Hz.): 50 / 60
• EER Rating: 10.1 to 21.1
