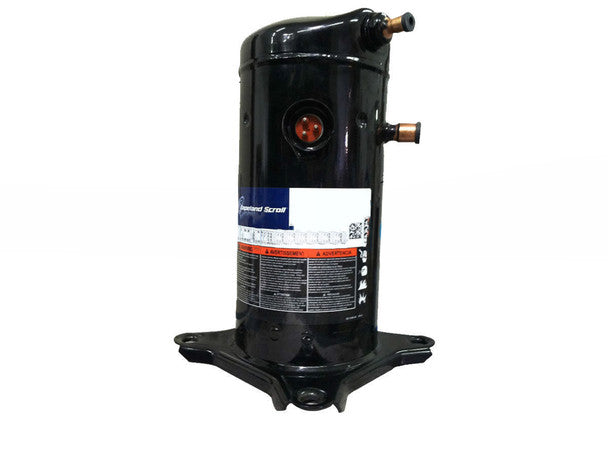

Rheem ZP20K5E-PFV-800 Scroll Compressor R-410A 208-230V

Product Description

The Rheem ZP20K5E-PFV-800 is a hermetic scroll compressor ideal for HVACR systems. This unit utilizes R-410A refrigerant and operates on 208-230 volts alternating current. It includes a streamlined design with fewer moving parts, enhancing reliability and efficiency. It is designed to start under various load conditions and is compatible with single-phase power systems, using polyol ester oil for optimal performance.

• Compressor type: Scroll
• Refrigerant type: R-410A
• Voltage: 208-230 VAC

Product Highlights

This compressor is highly efficient and suitable for a range of HVAC applications, delivering reliable performance.

Product Information

Standard Information

• Brand: Rheem
• Country of Origin: USA

Technical Specifications

• MPN: ZP20K5E-PFV-800
• Compressor Type: Scroll
• Refrigerant: R-410A
• Voltage: 208-230 VAC
• Phase: Single
• Cycle/Hertz: 50/60 Hz
• BTU Output: 20,000-27,300
• Oil Type: Polyolester (POE)
• Oil Charge Initial (oz.): 25
• Displacement: 1.18 in^3/Rev
• Weight: 47.4
• Height: 15.27
• Width: 9.69
• Length: 9.69
• Suction Line Size (OD): 3/4
• Discharge Connection Size (OD): 1/2
• Locked Rotor Amps (LRA): 58.3
• Rated Load Amps (RLA): 13.5, 15
• Amps: 6.1-9.1
• Sound Level (dBA): 66-71
• Evaporating Temperature: 45°F (7.22°C)
• Condensing Temperature: 130°F (54.44°C)
• Liquid Temperature: 115°F (46.11°C)
• Return Gas Temperature: 65°F (18.33°C)
• Mass Flow (lbs/hr): 295 lbs./hr.; 360 lbs./hr.
• Compressor Housing: Hermetic
• Suction Line Fitting Type: Stub
• Discharge Connection Type: Stub
• Mounting Dimensions: 7.5 X 7.5 X 16.02
• Approvals: UL Recognized
