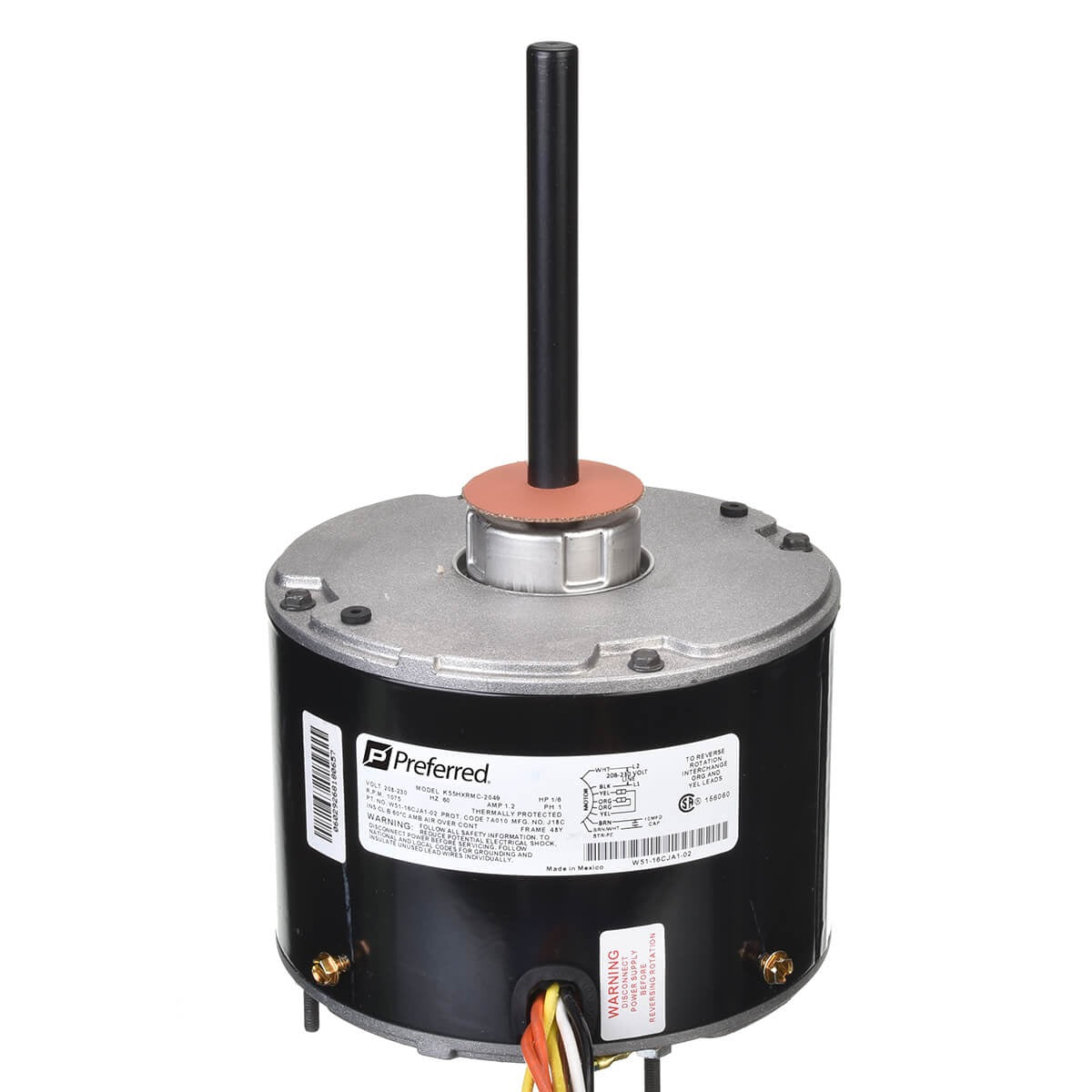

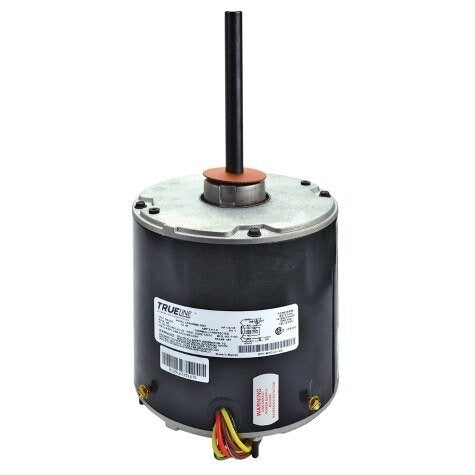

Rheem W51-16CJA1-02 Protech Universal Condenser Motor 1/6 hp (1075 RPM) Replaces W51-16CJA1-01

Product Description

Rheem W51-16CJA1-02 is a Protech universal condenser motor designed for HVAC condenser fan applications. The single-phase, direct-drive PSC motor delivers 1/6 hp at 208-230 V, 60 Hz and runs at 1075 RPM as a single-speed unit. It features a 48 frame, self-aligning sleeve bearing, reversible rotation, and multiple mounting options for integration into residential and light commercial condenser units.

• Electrical: 1/6 hp, 208-230 V input, single phase, 60 Hz, full load amps ~1.20 A
• Mechanical: 1075 RPM single speed, 48 frame, 1/2 in shaft diameter with 4 in or 5 in shaft length options
• Features: direct drive, self-aligning sleeve bearing, reversible rotation, mounting via shell-band, shell-screw, or thru-bolt

Product Highlights

Single-speed 1/6 hp condenser motor for 208-230 V systems with reversible rotation, multiple shaft options, and standard mounting configurations.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: W51-16CJA1-02
• Country of Origin: United States
