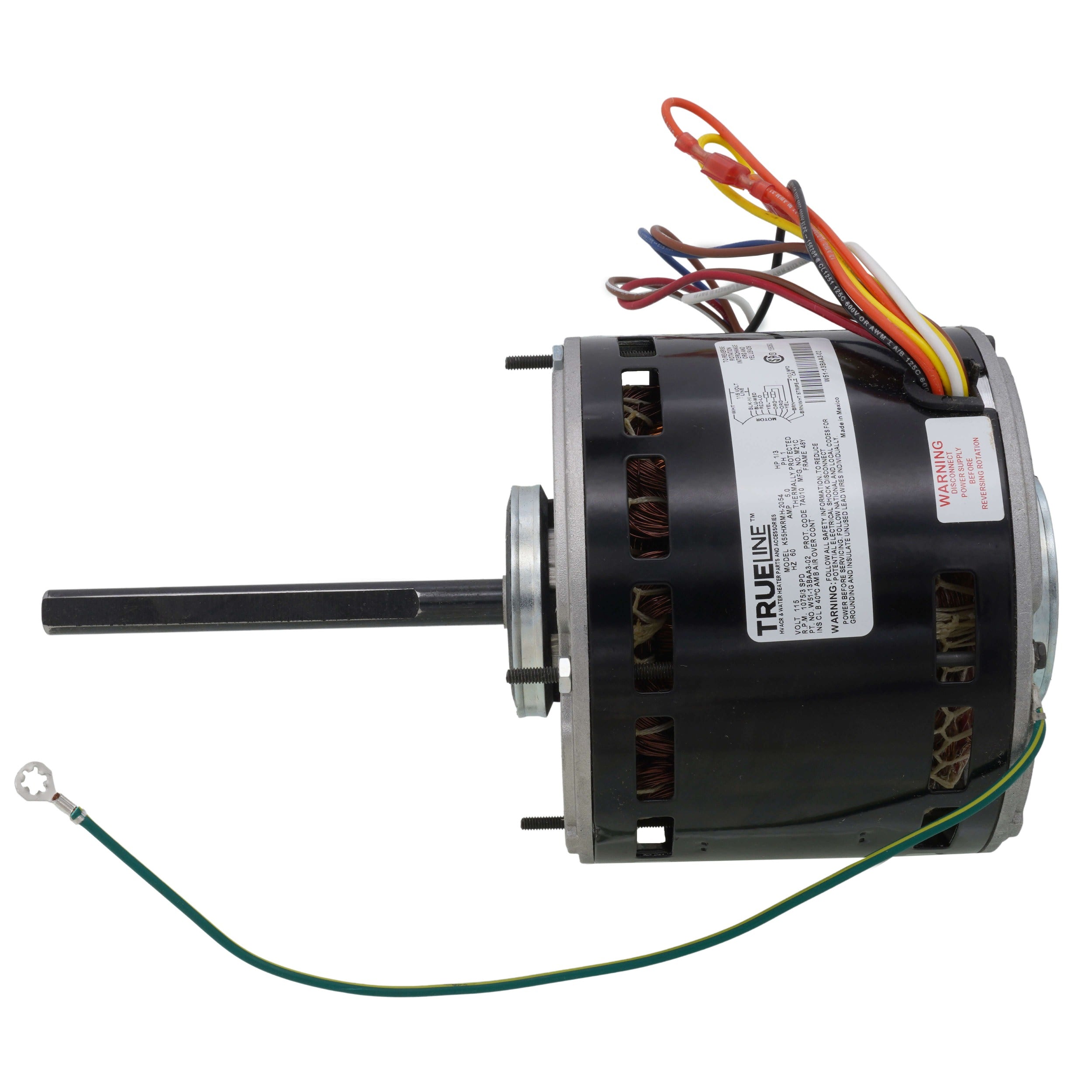

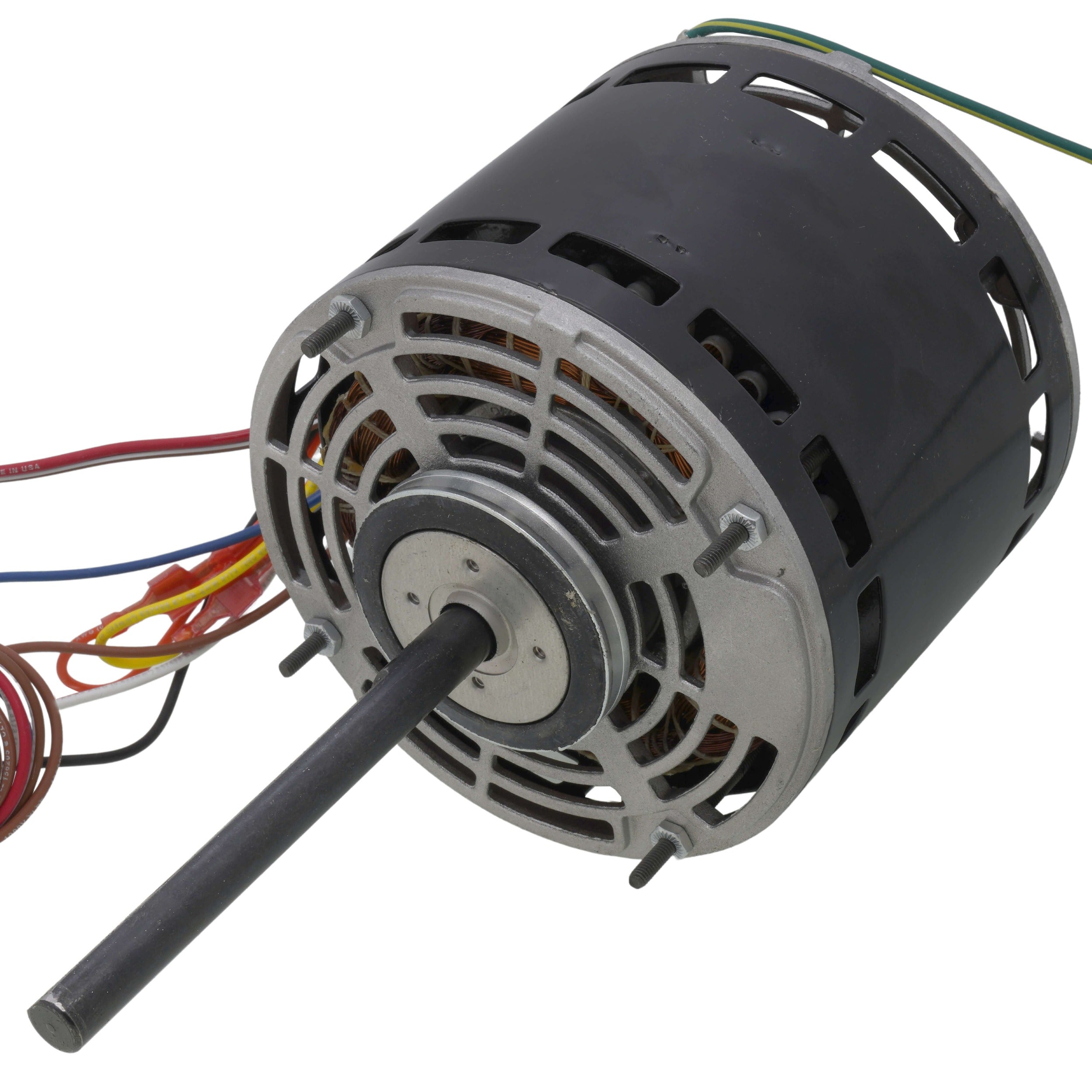

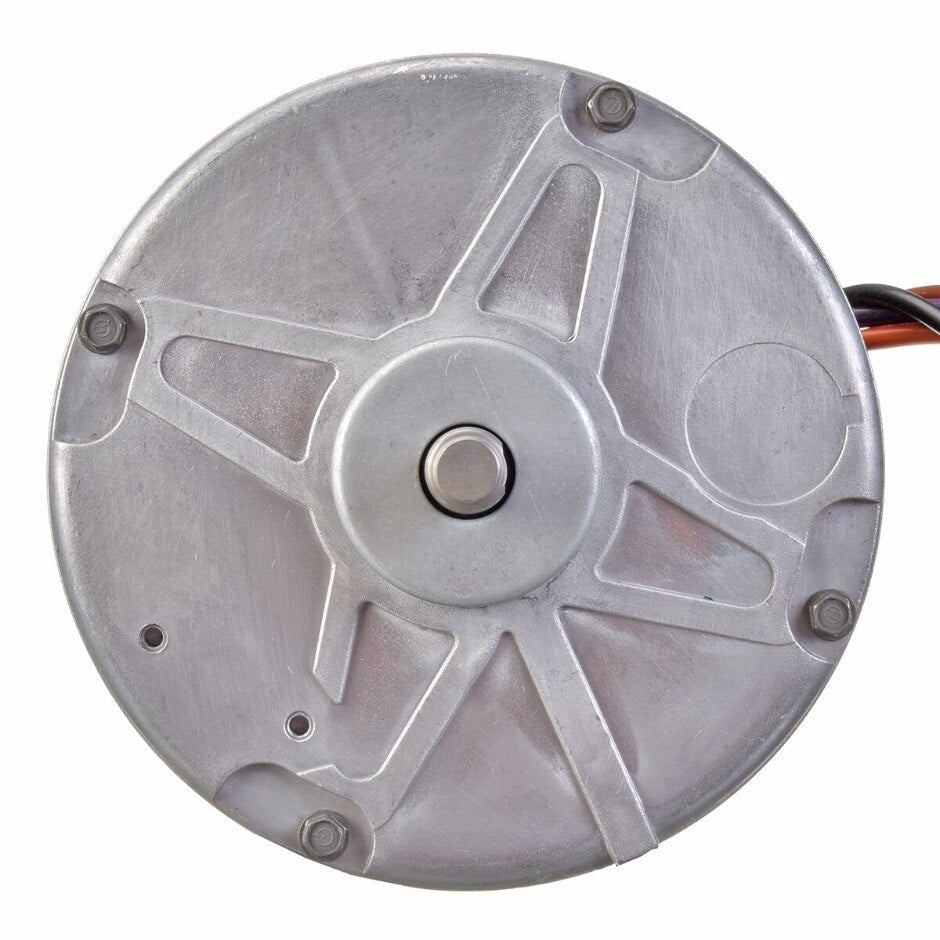

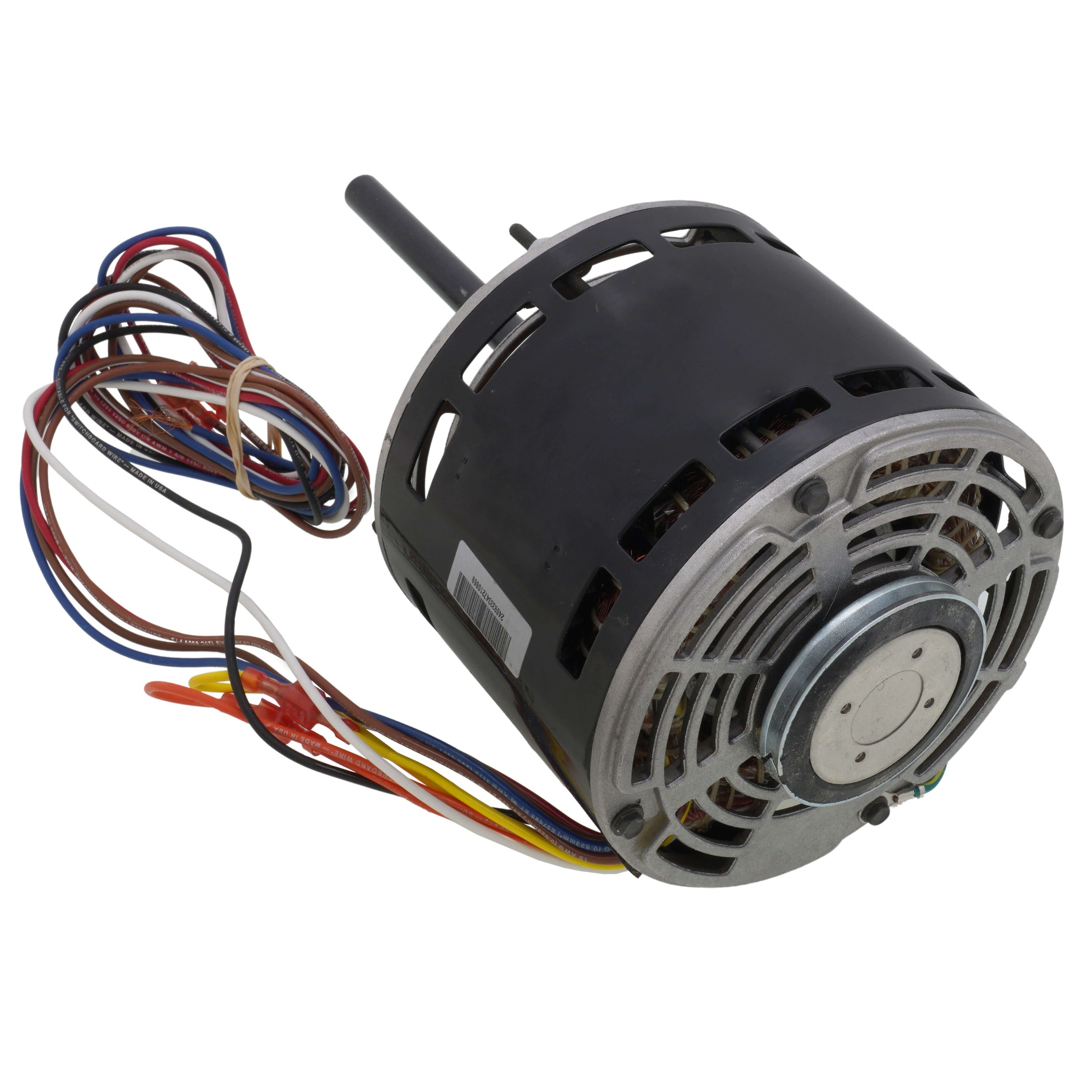

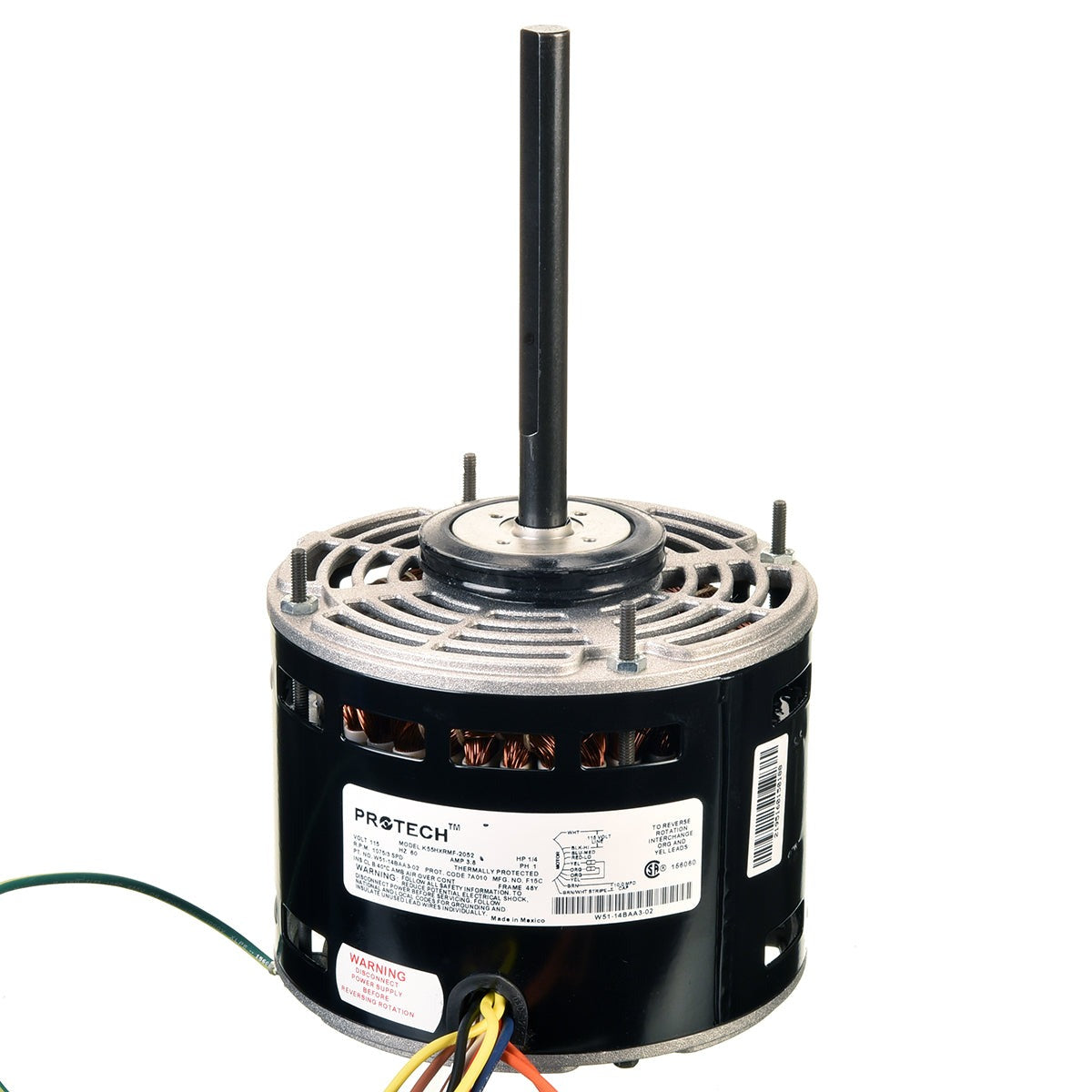

Rheem W51-13BAA3-02 Universal Blower Motor 1/3 hp (3-Speed) W51-13BAA3-02

Product Description

Rheem W51-13BAA3-02 is a universal blower motor rated at 1/3 horsepower for HVAC blower applications. The motor operates at 120 V, single phase, 60 Hz with a nominal shaft speed of 1075 RPM and three selectable speeds. It is a direct-drive design suitable for indoor blower or condenser use and supports reversible rotation for installation flexibility.

• 1/3 hp motor, 120 V, single phase, 60 Hz, 1075 RPM nominal speed
• Three-speed direct drive with reversible rotation; sleeve bearing design
• Shell-band or thru-bolt mounting; full load amps 5 FLA; capacitor requirement noted as 10 µF

Product Highlights

Universal 1/3 hp HVAC blower motor, 120 V, 1075 RPM, 3-speed, reversible, direct drive

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: W51-13BAA3-02
