Rheem W51-12CJA1-02 Protech Universal Condenser Motor 1/2 hp (1075 rpm 1 speed) W51-12CJA1-01

Product Description

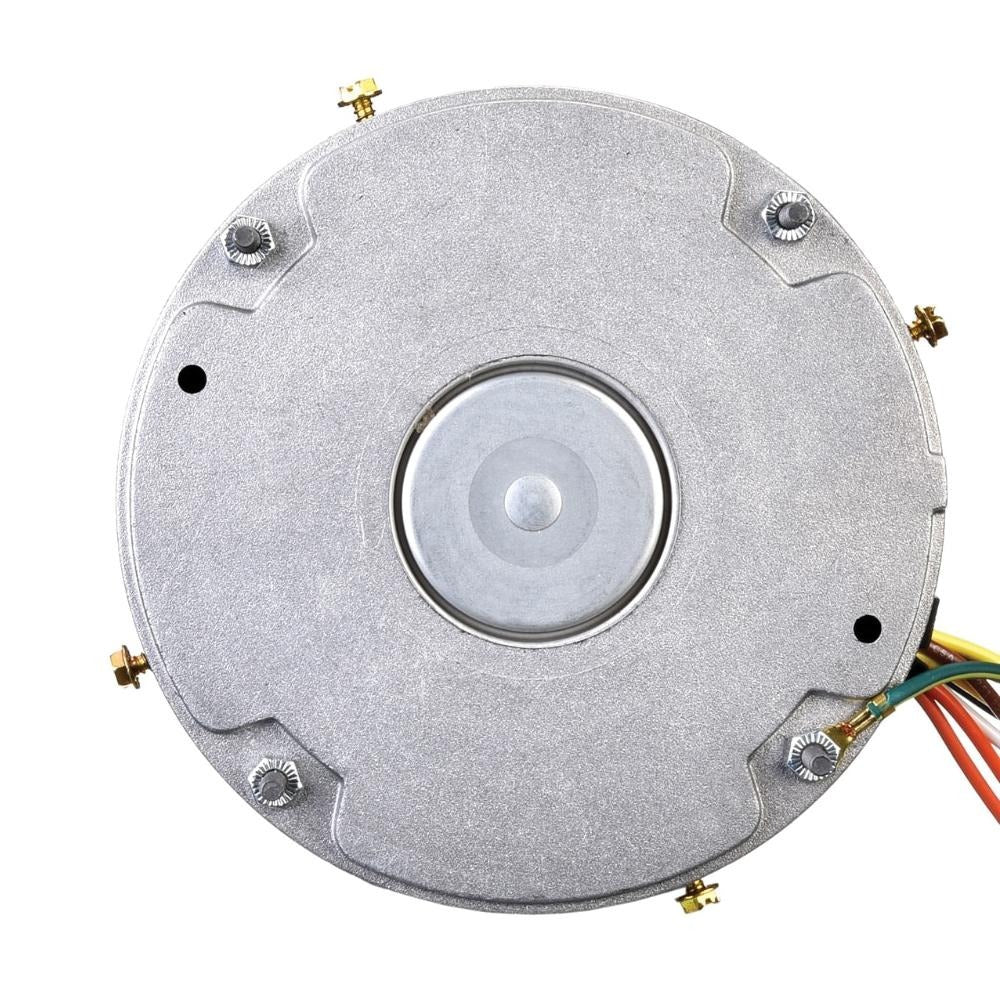

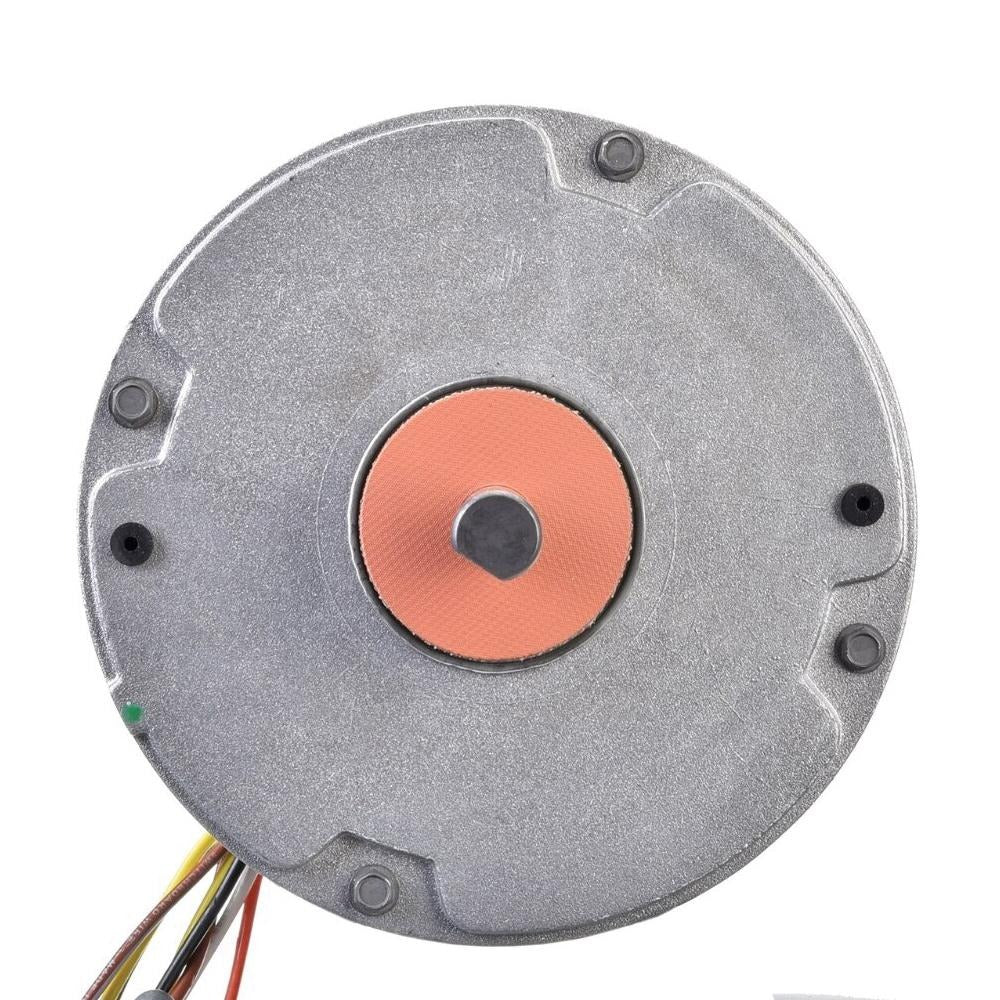

Rheem W51-12CJA1-02 is a Protech universal condenser motor rated 1/2 hp, 208-230 V, single-phase, 60 Hz, delivering 1075 rpm at a single speed. The motor uses a sleeve bearing and direct-drive configuration with reversible rotation and accepts a 15 µF / 370 VAC run capacitor. It fits 48-frame applications with a 1/2 in diameter by 5 in shaft and offers through-bolt, shell-band, and shell-screw mounting options for condenser and HVAC equipment replacement.

• 1/2 hp, 208-230 V, single-phase, 60 Hz, 1075 rpm, single-speed; OEM replacement for W51-12CJA1-01
• 48-frame direct-drive motor with 1/2 in diameter x 5 in shaft; mounting: through-bolt, shell-band, shell-screw
• Sleeve bearing with reversible rotation; configured for 15 µF / 370 VAC run capacitor; rated 2.5 A

Product Highlights

1/2 hp universal condenser motor, 1075 rpm single-speed, 48-frame, 1/2 in shaft, multiple mounting options

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: W51-12CJA1-02
