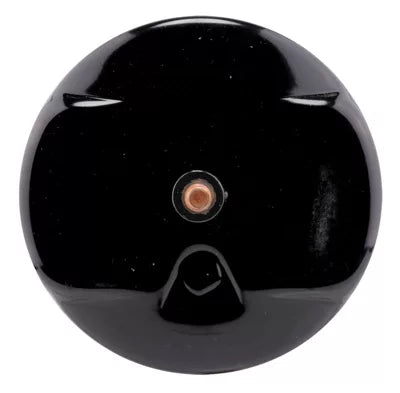

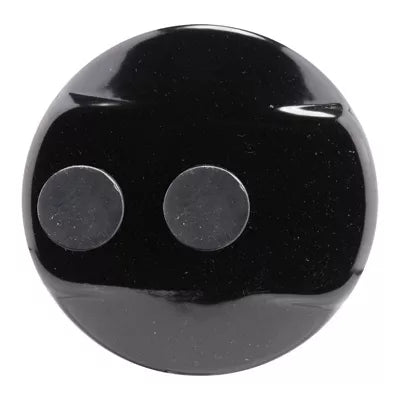

Rheem vpa-589-6srd Refrigerant Accumulator R-22 R-410A

Product Description

The RHEEM vpa-589-6srd is a refrigerant accumulator designed to protect compressors from liquid slugging in split-system and package air conditioning and heat pump equipment. The U-tube design maximizes refrigerant flow while minimizing pressure drop and oil entrapment. An inlet flow deflector guides refrigerant toward the accumulator wall for smooth flow and gradual expansion. A protective screen and orifice assembly blocks foreign particles and contaminants from reaching the metering components. The unit carries a 355 psig design pressure rating and is compatible with both R-22 and R-410A refrigerants. Solid copper connections and a powder paint coating that exceeds ASTM 500-hour salt spray testing round out the construction.

This accumulator is suited for residential and light commercial HVAC applications using TXV or fixed orifice metering systems. For TXV systems, accumulators should be sized to hold at least 50 percent of the total refrigerant charge. For fixed orifice systems, sizing should accommodate at least 70 percent of the charge. Proper sizing ensures consistent liquid refrigerant and oil return to the compressor, which is critical for long-term compressor reliability. An integral 430 degrees F fuse plug is included as a safety feature to release internal pressure if the accumulator is exposed to abnormally high temperatures.

Key Features

• U-tube design minimizes pressure drop and oil entrapment during refrigerant flow
• Inlet flow deflector promotes smooth refrigerant expansion against the accumulator wall
• Protective screen and orifice assembly guards against contaminants entering the metering circuit
• Solid copper connections for reliable, leak-resistant field installation
• Powder paint coating rated beyond ASTM 500-hour salt spray standards for corrosion resistance
• Integral 430 degrees F fuse plug provides automatic pressure relief under extreme temperature conditions
• Compatible with R-22 and R-410A at a 355 psig design pressure

Compatibility

Compatible with R-22 and R-410A refrigerant systems. Suitable for both TXV and fixed orifice metering systems. Designed as an OEM-style replacement accumulator for residential and light commercial split-system and package HVAC equipment.

Installation Notes

Installation should be performed by an EPA Section 608 certified HVAC technician. Recover all refrigerant and de-energize the system before removing the existing accumulator. Ensure the replacement unit is properly sized for the system refrigerant charge before installation. Braze copper connections using nitrogen purge per standard industry practice to prevent oxidation scale inside the refrigerant circuit.

Technical Specifications

• Design Pressure: 355 psig
• Refrigerant Compatibility: R-22, R-410A
• Connection Type: Solid copper
• Fuse Plug Rating: 430 degrees F
• Coating: Powder paint, exceeds ASTM 500-hour salt spray
• Metering System Compatibility: TXV and fixed orifice

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: vpa-589-6srd
