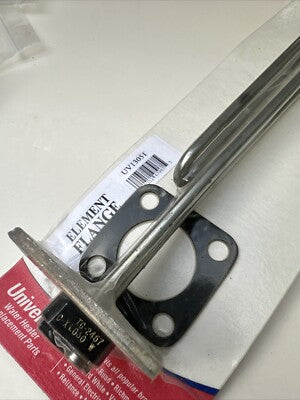

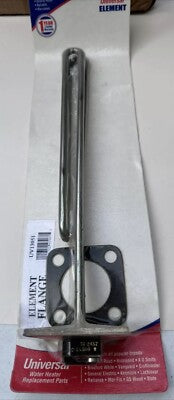

RHEEM UV13051 4500W Copper Non-Resistored Flat Flange Element MWD 240V

Product Description

The Rheem UV13051 is a one-inch 4500W copper non-resistored flat flange element designed for water heaters. It operates at two hundred forty volts and offers efficient heat transfer. Its construction includes a durable copper outer sheath, which may include plating, ensuring longevity in water heating applications.

• Wattage: 4500 Watts
• Voltage: 240V
• Material: Copper

Product Highlights

This element is suitable for various Rheem water heaters, making it a versatile option for HVAC and plumbing professionals.

Product Information

Standard Information

• Voltage: 240
• Watt Density Classification: MWD

Technical Specifications

• Watt Density at 240V: 131 W/sq. in.
• Outer Sheath Material: Copper (with Plating)
• Resistored: No
• Configuration: Foldback
• Element Diameter: .260 inches
• Element Length - Flange to Tip: 11.75 inches
• Mounting Type: Flat Flange
• Flange Hole Diameter - Four Places: .407 inches
• Flange Bolt Circle Diameter: 2.500 inches
