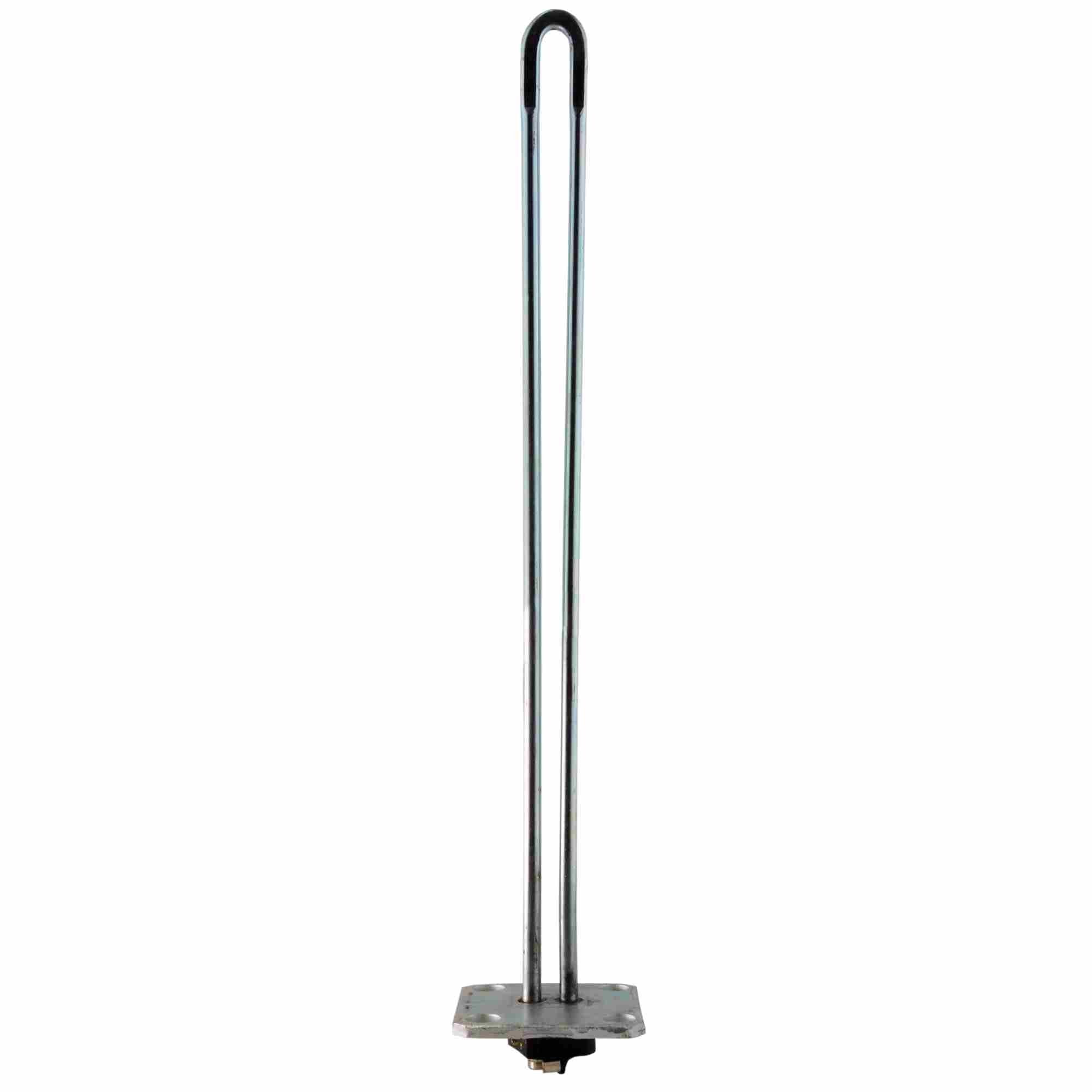

Rheem UV12907 Rheem Element 240V 4500W Copper Non-Resistored HWD Flat Flange

Product Description

The Rheem Element UV12907 is a 240V/4500W copper non-resistored hot water dispenser element featuring a flat flange. This element serves as a direct replacement for Rheem, Ruud, Friedrich, and Richmond water heaters. It provides uniform heat distribution for extended performance. Made from durable copper, this element meets UL and CSA safety standards. Compatibility includes popular brands using screw-in type elements such as Kenmore, A. O. Smith, and Bradford White.

• Wattage: 4500 Watts
• Voltage: 240V
• Material: Copper

Product Highlights

This element is designed for reliable performance in various water heater brands.

Product Information

Standard Information

• Type: Hot Water Element
• Material: Copper

Technical Specifications

• Watt Density Classification: HWD
• Input Voltage: 240V
• Wattage at 240V: 4500W
• Watt Density at 240V: 203 W/sq. in.
• Outer Sheath Material: Copper (with Plating)
• Resistored: No
• Configuration: Straight
• Element Diameter: .260 in
• Element Length (Flange to Tip): 13.50 in
• Mounting Type: Flat Flange
• Flange Hole Diameter (Four Places): .407 in
• Flange Bolt Circle Diameter: 2.500 in
