Rheem turbo200 Universal Motor Run Capacitor 370/440V

Product Description

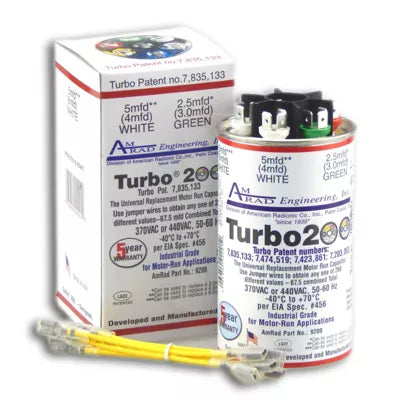

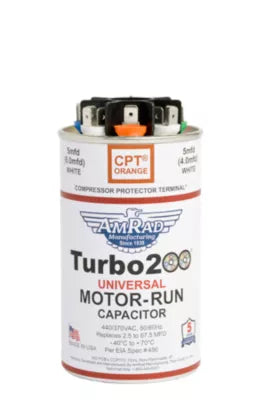

The RHEEM turbo200 is a universal, multi-tap, oil-filled motor run and motor start capacitor designed to replace more than 200 individual single or dual-value capacitors. It operates at voltage ratings up to 440 VAC and covers capacitance values up to 67.5 MFD, making it a single-SKU solution for a wide range of motor capacitor replacements. The metal can construction and oil-filled design deliver reliable performance in residential and commercial HVAC equipment. Licensed HVAC technicians and refrigeration mechanics are the primary installers of this component.

The turbo200 is suited for use in air conditioner condensing units, heat pumps, and air handler fan motors where a failed run or start capacitor needs replacement. Its multi-tap design means a single unit covers a broad range of MFD values, reducing the number of individual capacitors a service technician needs to carry on a service vehicle. It is appropriate for both residential split systems and light-commercial packaged equipment operating on standard single-phase power.

Key Features

• Replaces more than 200 individual single or dual-value capacitor SKUs
• Multiple-tapped design covers capacitance values up to 67.5 MFD
• Rated for 370 VAC and 440 VAC operation
• Oil-filled, metal can construction for durable field performance
• Manufactured in the USA
• 5-year warranty

Compatibility

Designed as a universal OEM-style replacement for single-phase motor run and motor start capacitor applications in residential and light-commercial HVAC systems.

Installation Notes

Capacitor replacement is performed by licensed HVAC technicians. Always disconnect and lock out power to the unit before handling capacitors, and discharge the existing capacitor fully before removal, as capacitors retain a lethal charge even after power is removed. Select the correct tap on the turbo200 to match the original MFD rating specified on the motor or equipment nameplate. Follow all applicable NEC requirements and local codes when servicing electrical components in HVAC equipment.

Technical Specifications

• Voltage Rating: 370/440 VAC
• Maximum Capacitance: 67.5 MFD
• Capacitor Type: Oil-filled, multi-tap motor run and motor start
• Construction: Metal can
• Country of Origin: USA
• Warranty: 5 years

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: turbo200
