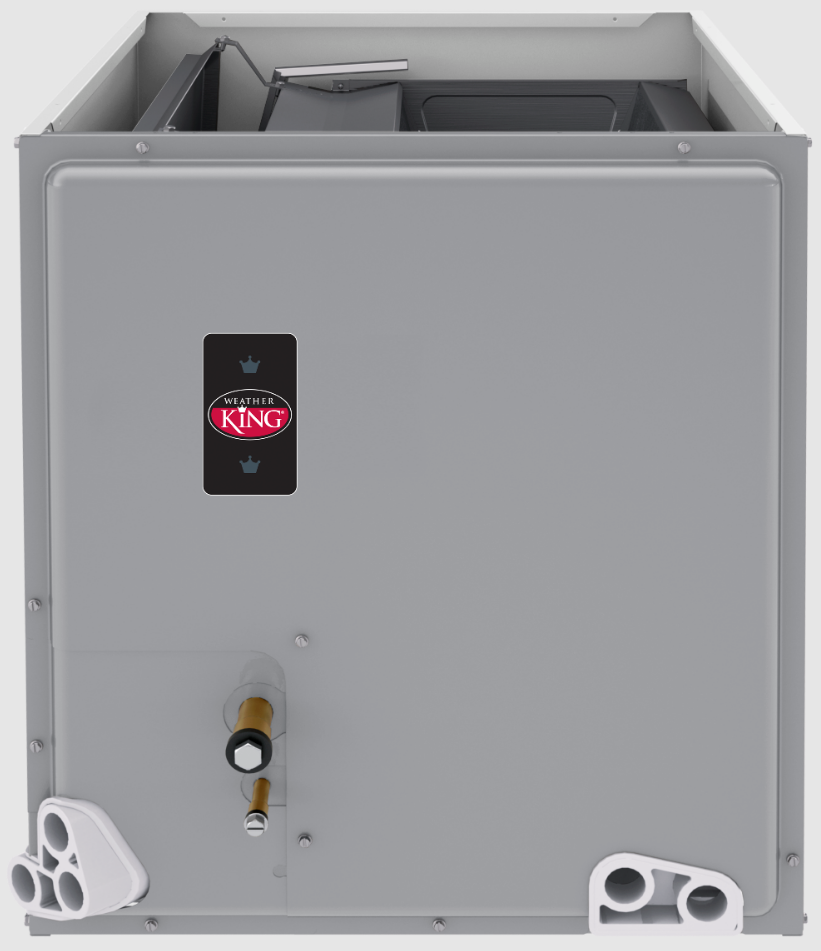

Rheem TCF3617STAMCA Weatherking Multi-Position Cased Evaporator Coil 3 Ton

Product Description

The Rheem TCF3617STAMCA Weatherking multi-position cased evaporator coil is designed for use with WeatherKing outdoor units. The TCF coils feature aluminum fins bonded to internally grooved aluminum tubing with copper sweat refrigerant connections. Its unique "N" design maximizes performance. Each TCF coil is factory tested to ensure it meets WeatherKing's highest standards.

• Evaporator constructed of aluminum fins bonded to internally grooved aluminum tubing
• Includes thermal expansion valve with a metering device
• Features two 3/4" NPT condensate drain connections

Product Highlights

The Rheem Weatherking evaporator coil maximizes performance and optimizes heat transfer for efficient comfort. Compatible with R-22 and R-410A refrigerants.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: TCF3617STAMCA

Technical Specifications

• Type: Evaporator Coil
• Product Line: WeatherKing
• Product Sub-line: TCF
• Refrigerant Type: R-410A
• Casing: Cased
• Style: N Coil
• Configuration: Multi-Position
• Capacity: 3.0 Tons
• Cooling BTU: 36000
• Suction Connection Size: 3/4 Inch
• Liquid Connection Size: 3/8 Inch
• Cabinet Width: 17 1/2 Inches
• Product Height: 20 Inches
• Product Width: 17 1/2 Inches
• Product Depth: 19 7/8 Inches
• UL Listed: Yes
• AHRI Certified: Yes
• Parts Warranty: 5 Years
• Efficiency: 13 SEER - 14 SEER
• Height (inches): 20
• Width (inches): 17.50
• Depth (inches): 21.6875
• BTU: 36000
• Nominal Capacity (Tons): 3
• Inlet Size: 3/8
• Outlet Size: 3/4
• Rows: 2
• Approximate Weight (pounds): 54
• Material: Aluminum
