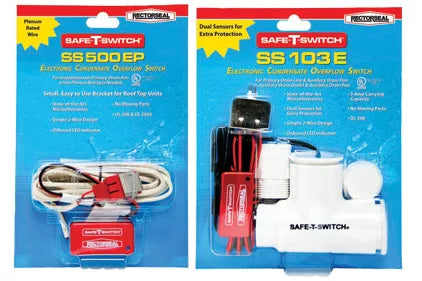

RHEEM SS500EP Electronic Condensate Overflow Switch

Product Description

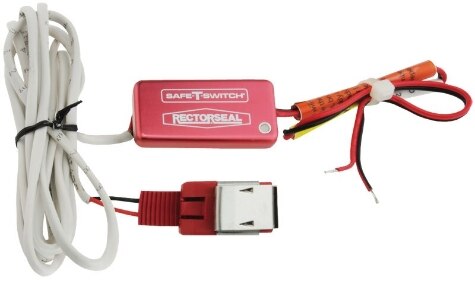

The RHEEM SS500EP is an electronic condensate overflow switch suitable for primary drain pans. It is used in commercial rooftop downflow units where a plenum rating is required. This switch detects clogs in air conditioner condensate drains and automatically shuts off the cooling system to mitigate the risk of water damage.

• Electronic probe sensor for accurate detection.
• Onboard LED indicator displays system status.
• 5-wire design enhances functionality.

Product Highlights

The RHEEM SS500EP is designed for reliable operation under various conditions, ensuring safety and efficiency in HVAC systems.

Product Information

Standard Information

• Application: Primary Drain
• Voltage: 24 VAC

Technical Specifications

• Switching Capacity: 5 Amp
• Lead Wire Length: 12 inches
• Tail Length: 72 inches (plenum rated)
• Frequency: 60 Hz
