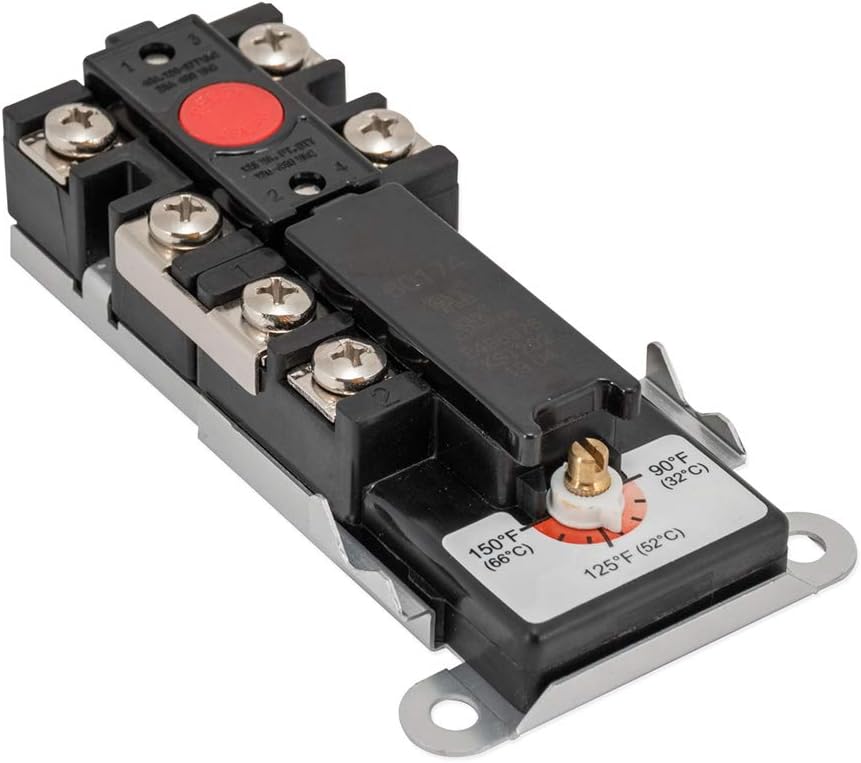

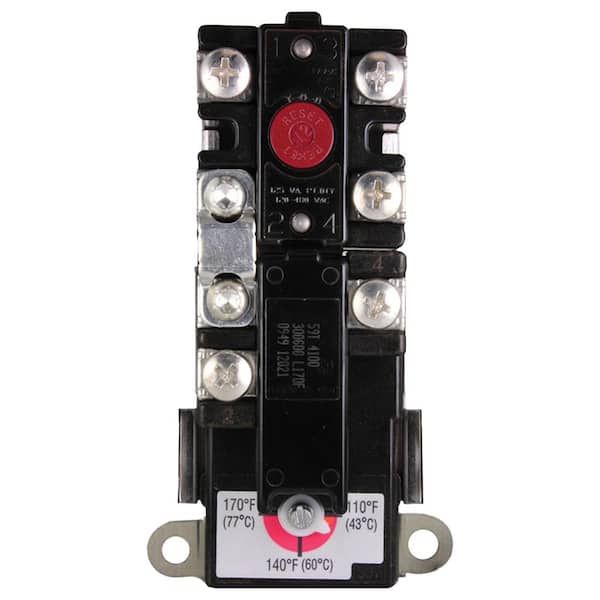

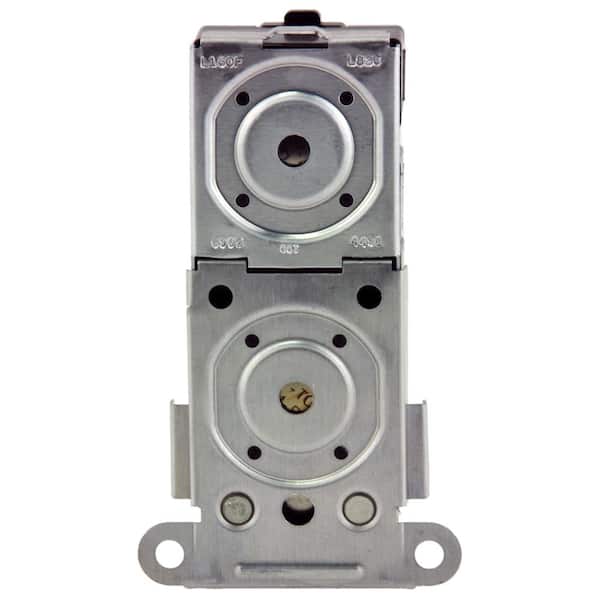

RHEEM SP210246 Electric Thermostat 2-Element

Product Description

The Rheem SP210246 is an electric thermostat designed for effective use in 2-element water heaters. This thermostat activates the heating element when the water temperature in the tank drops below the set level, ensuring a dependable hot water supply. It is compatible with brands such as Rheem and Ruud.

• Thermostat adjustment range is eighty to one hundred forty degrees Fahrenheit.
• Features a manual reset high limit control to prevent overheating.
• Professional installation is recommended to follow safety protocols.

Product Highlights

This thermostat provides precise control over water heating and enhances safety with its high limit feature.

Product Information

Standard Information

• Manufacturer: TOD
• Manufacturer Series: 59T/66T

Technical Specifications

• High Limit Control: Manual Reset
• High Limit Setting (F): 180
• High Limit Tolerance (F): +/- 5
• High Limit Contact Configuration: DPST
• Thermostat Adjustment Range (F): 80 to 140
• Thermostat Tolerance (F): +/- 5
• Thermostat Differential (F): 17 to 27
• Thermostat Contact Configuration: SPDT
