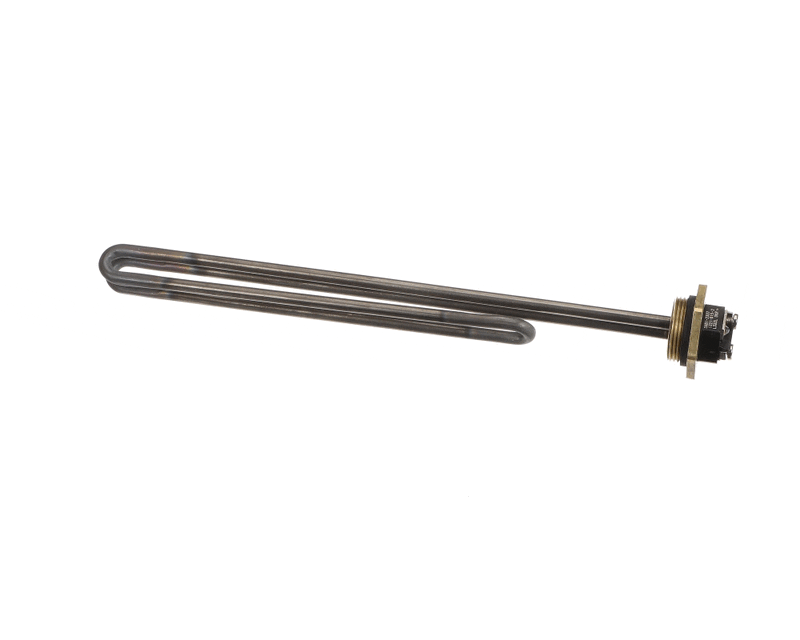

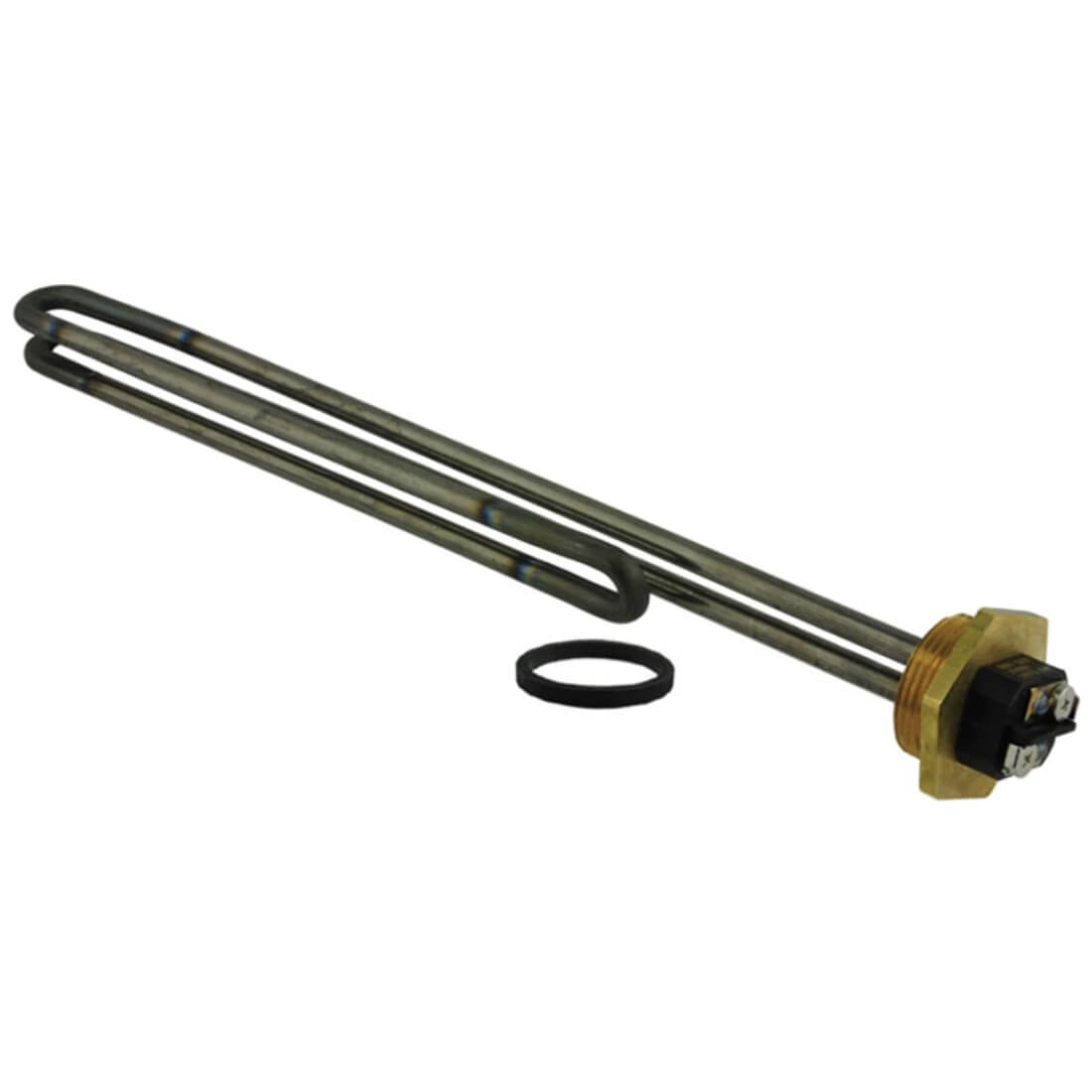

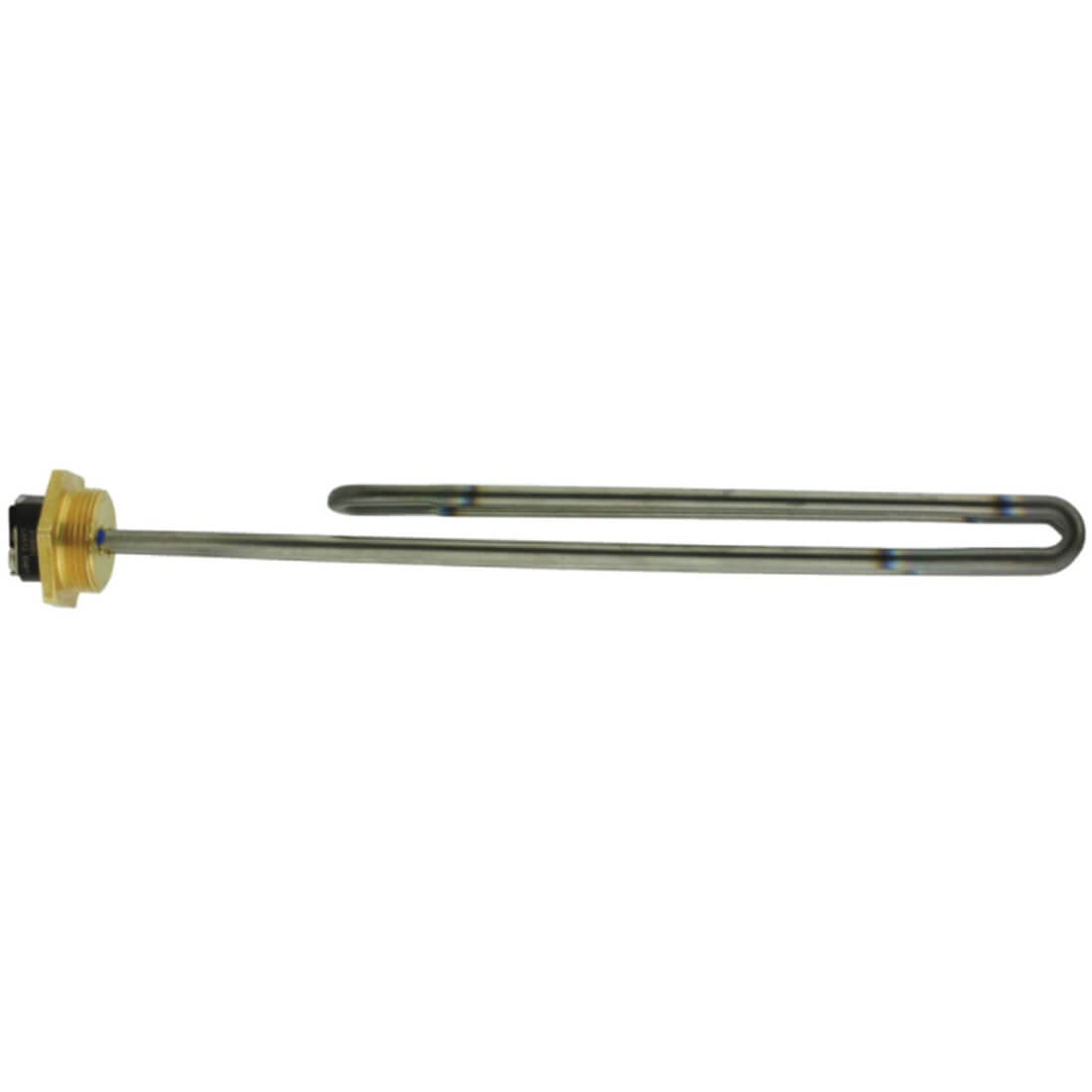

Rheem SP210201 Lower Heating Element 3000W

Product Description

The Rheem SP210201 Lower Heating Element provides reliable electric heating for HVAC and water heating equipment. This heating element ensures optimal heat transfer and long-lasting performance. It is a genuine OEM replacement part. The element features a titanium outer sheath and a foldback configuration.

• Provides reliable electric heating
• Ensures optimal heat transfer
• Long-lasting performance

Product Highlights

Genuine Rheem OEM replacement part ensures optimal heat transfer and long-lasting performance for various HVAC and water heating systems.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: SP210201

Technical Specifications

• MPN: SP210201
• Brand: RHEEM
• Watt Density Classification: LWD
• Input Voltage (V): 240
• Wattage at 240V (W): 3000
• Watt Density at 240V (W/sq. in. ): 63
• Cold Resistance (ohms): 20.30
• Outer Sheath Material: Titanium
• Resistored: No
• Configuration: Foldback
• Element Diameter (in.): .316
• Element Length - Flange to Tip (in.): 13.95
• Mounting Type: Threaded
• Actual Thread Size - Outside Diameter (in.): 1-1/2
• Nominal Thread Size - (in.): 1-1/2
• Threads per Inch: 12
• Thread Type Series Designation: UNF
• Hex Head Size - Across Flats (in.): 1-7/8
• Manufacturer: Rheem
• Manufacturer #: SP210201
• Parts Town #: RHMSP210201
• Voltage: 240v
• Wattage: 3000W
• Material: Titanium
• Resistor: Non-resistored
• Watts: 3000 Watts
• Size: 1"
• Accessories: Gasket
• Key Size Includes: Screw-In
