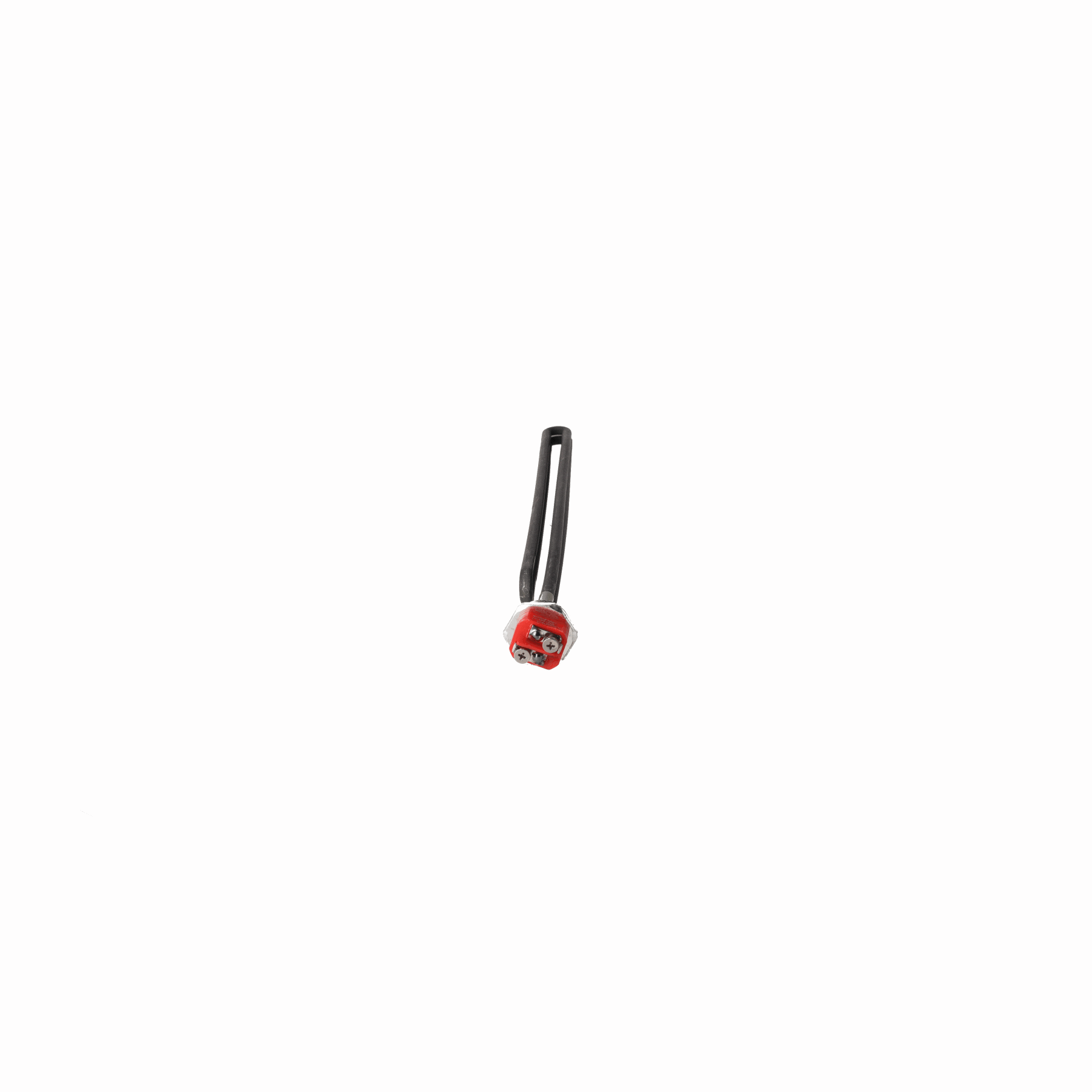

Rheem SP17972QL Stainless Steel LWD Element 415V 6000W 1 inch NPT

Product Description

The Rheem SP17972QL is a heating element suitable for water heaters. It operates at four hundred fifteen volts and six thousand watts, ensuring efficient heating performance. Made from stainless steel, this element provides durability and resists corrosion, which helps increase its lifespan.

• Operates at four hundred fifteen volts and six thousand watts.
• Features stainless steel construction for resilience.
• Includes a one-inch NPT thread for installation ease.

Product Highlights

The low-watt density (LWD) design helps distribute heat evenly, improving longevity for the element and the water heater.

Product Information

Standard Information

• Manufacturer: Rheem
• Part Number: SP17972QL

Technical Specifications

• Voltage: 415V
• Wattage: 6000W
• Thread Size: 1 inch NPT
• Element Material: Stainless Steel
• Watt Density: Low Watt Density (LWD)
• Mounting Type: Threaded
• Actual Thread Size - Outside Diameter: 1-9/32
• Configuration: Foldback
• Element Diameter: 0.32
• Element Length - Flange to Tip: 16.75
• Hex Head Size - Across Flats: 1-1/2
• Nominal Thread Size: 1
• Outer Sheath Material: Stainless Steel (Incoloy)
• Resistored: Yes
• Thread Type Series Designation: NPSM
• Threads per Inch: 11-1/2
• Watt Density Classification: LWD
