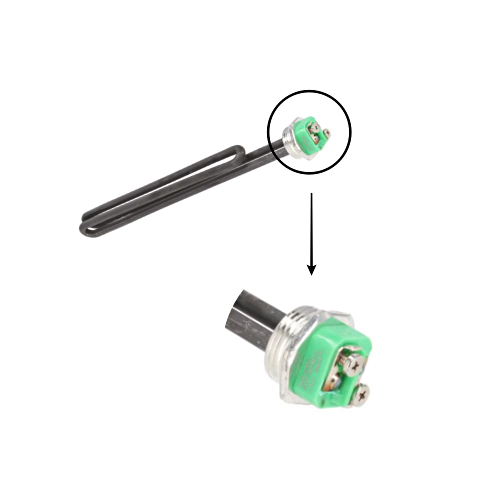

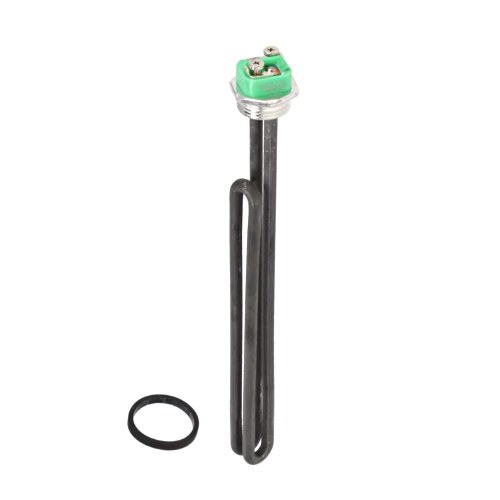

Rheem SP17618FM 240V 3500W 1 Inch Screw-In Stainless Steel Heater Element

Product Description

The Rheem SP17618FM is a threaded heating element specifically designed for water heaters. This item converts electricity to heat, efficiently transferring warmth into the water. The element features a durable stainless steel (Incoloy) outer sheath, ensuring corrosion resistance for long-lasting use. Its total length is eleven point thirty-one inches from flange to tip, with a diameter of zero point thirty-two inches. This heater element operates at a wattage of three thousand five hundred at two hundred forty volts and two thousand six hundred thirty at two hundred eight volts. It is UL and CSA certified for safe operation.

• Threaded heating element for water heaters
• Stainless steel (Incoloy) outer sheath
• Rated for 3,500W at 240V and 2,630W at 208V

Product Highlights

This heating element is ideal for quick water heating and is suitable for various standard water heaters.

Product Information

Standard Information

• Nominal Thread Size: 1 inch
• Flange to Tip Length: 11.31 inches

Technical Specifications

• Diameter: 0.32 inches
• Hex Head Size: 1-1/2 inches
• Input Voltage: 240V | 208V
• Cold Resistance: 16.46 ohms
• Outer Sheath Material: Stainless Steel
• Mounting Type: Threaded
• Wattage at 208V: 2630W
• Wattage at 240V: 3500W
