Rheem SP10873QH 1inch 6000W Copper Resistored Screw-in Element MWD (480V)

Product Description

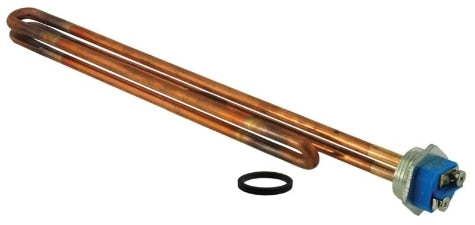

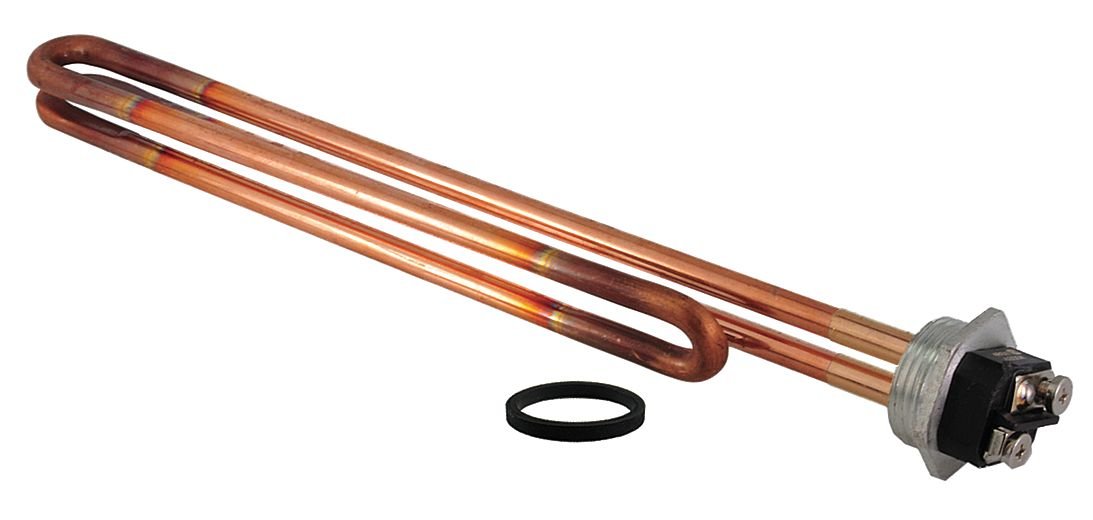

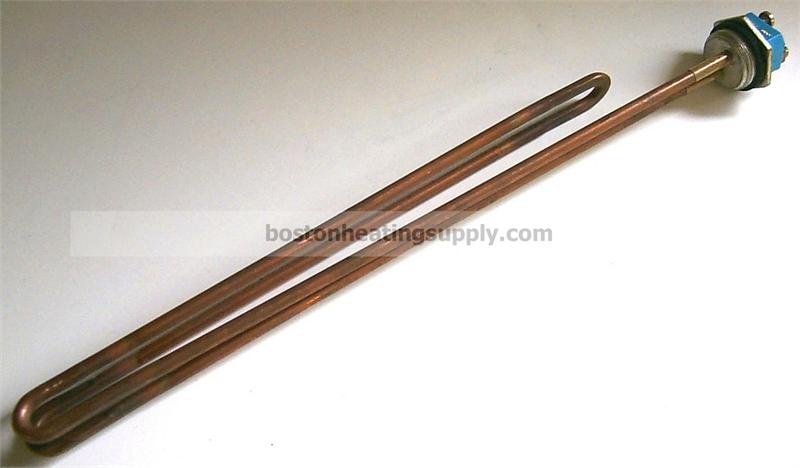

The Rheem SP10873QH is a one-inch, 6000W copper resistored screw-in element designed for water heaters operating at 480V. This essential component converts electricity to heat, transferring energy into the water. It serves as a direct replacement for Rheem, Ruud, and Richmond water heaters, fitting most units that utilize screw-in type elements. Regular replacement of this element is necessary due to corrosion caused by minerals commonly found in water systems.

• Wattage: 6000 Watts
• Voltage: 480V
• Outer Sheath Material: Copper

Product Highlights

Efficient heating performance for water systems with durability and resistance to corrosion.

Product Information

Standard Information

• Brand: Rheem
• Country of Origin: Mexico

Technical Specifications

• Watt Density Classification: MWD
• Input Voltage (V): 480
• Watt Density at 480V (W/sq. in.): 147
• Cold Resistance (ohms): 38.40
• Resistored: Yes
• Configuration: Foldback
• Element Diameter (in.): 0.316
• Element Length - Flange to Tip (in.): 11.83
• Mounting Type: Threaded
• Actual Thread Size - Outside Diameter (in.): 1.28125
• Nominal Thread Size (in.): 1
• Threads per Inch: 11.5
• Thread Type Series Designation: NPSM
• Hex Head Size - Across Flats (in.): 1.5
