RHEEM SP10872DL Screw-in Element 1000W 1 inch 208V

Product Description

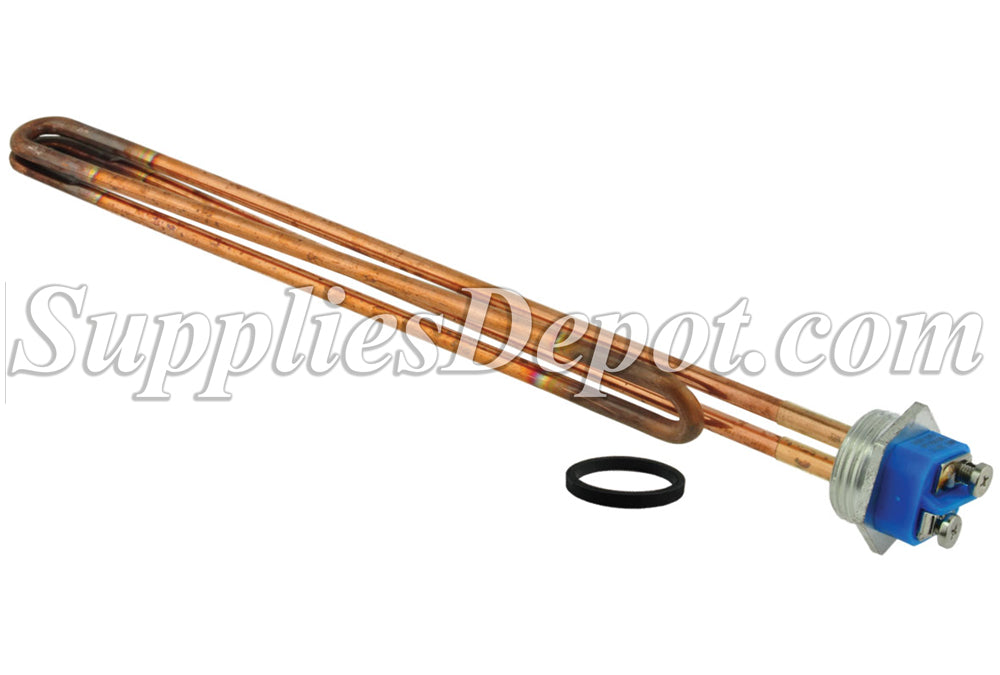

The Rheem SP10872DL is a screw-in heating element with a wattage of 1000 Watts, specifically designed for low watt density applications. It operates at a voltage of 208V, making it suitable for various water heaters.

• Constructed with a copper outer sheath.
• Designed for efficient heating performance.
• Requires professional installation for safety.

Product Highlights

This heating element is essential for maintaining optimal performance in your heating system.

Product Information

Standard Information

• Wattage: 1000 Watts
• Voltage: 208V

Technical Specifications

• Watt Density Classification: LWD
• Watt Density at 208V: 86 W/sq. in.
• Cold Resistance: 43.30 ohms
• Outer Sheath Material: Copper
• Configuration: Straight
• Element Diameter: 0.260 inches
• Element Length - Flange to Tip: 7.56 inches
• Mounting Type: Threaded
• Actual Thread Size - Outside Diameter: 1-9/32 inches
• Nominal Thread Size: 1 inch
• Threads per Inch: 11-1/2
• Thread Type Series Designation: NPSM
• Hex Head Size - Across Flats: 1-1/2 inches
