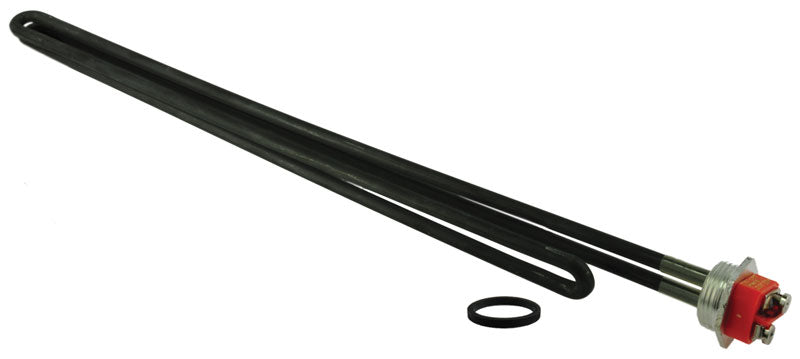

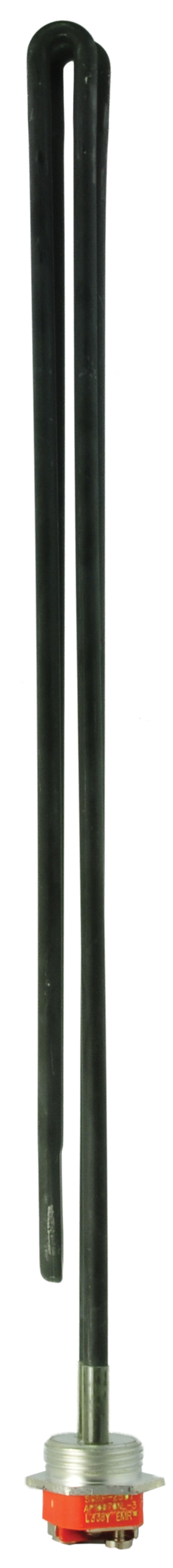

Rheem SP10870NL Element 480V/5000W Stainless Steel Resistored LWD 1 Inch Screw-in

Product Description

The Rheem SP10870NL is an element designed for water heating applications. Operating at 480 volts with a power output of 5000 watts, this stainless steel resistored element is suitable for various heating systems.

• Voltage: 480V
• Wattage: 5000W
• Material: Stainless Steel

Product Highlights

This product offers reliable performance in water heating, featuring a threaded mount for easy installation. Its construction ensures durability and efficient operation in demanding environments.

Product Information

Standard Information

• Brand: Rheem
• Part #: 1227786

Technical Specifications

• Type: Element
• Input Voltage: 480V
• Watt Density: 70 W/sq. in.
• Cold Resistance: 46.10 ohms
• Outer Sheath Material: Stainless Steel (Incoloy)
• Configuration: Foldback
• Element Diameter: .316 inches
• Element Length: 19.28 inches
• Mounting Type: Threaded
• Actual Thread Size: 1-9/32 inches
• Threads per Inch: 11-1/2
• Thread Type Designation: NPSM
• Hex Head Size: 1-1/2 inches
