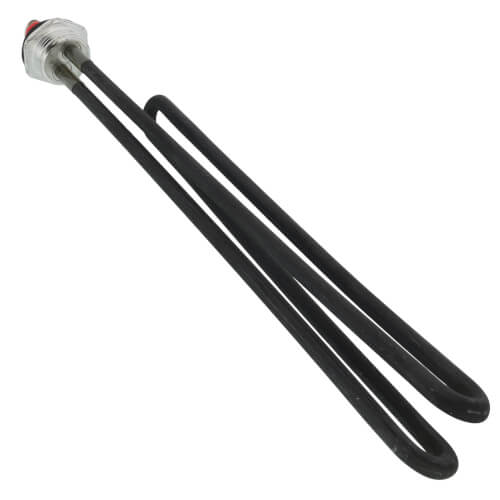

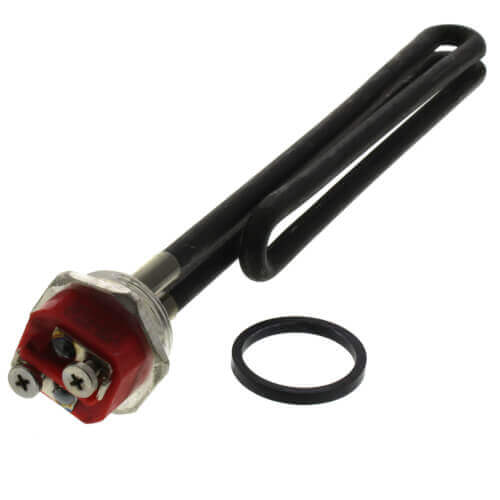

Rheem-Ruud SP10869MM 4500 Watt 240V S.S. Element

Product Description

The Rheem-Ruud SP10869MM is a 4500 Watt, 240V stainless steel heating element. It is suitable for commercial and industrial water heating applications. This element is built with high-quality materials for reliable performance. The stainless steel sheath ensures corrosion resistance while also having a high-temperature rating for demanding environments.

• 4500 Watt, 240V rating for efficient heating.
• Durable stainless steel construction for longevity.
• Compatible with various water heating systems including boilers and heat exchangers.

Product Highlights

This heating element provides excellent heat transfer and quick heating times, making it ideal for situations that require rapid heating. Its compact design allows for straightforward installation across a range of heating systems.

Product Information

Standard Information

• Brand: Rheem-Ruud
• MPN: SP10869MM

Technical Specifications

• Wattage at 240V: 4500W
• Watt Density at 240V: 93 W/sq. in.
• Element Length - Flange to Tip: 13.44 inches
• Outer Sheath Material: Stainless Steel (Incoloy)
• Cold Resistance: 12.80 ohms
• Nominal Thread Size: 1 inch
• Input Voltage: 208-240V
• Thread Type Series: NPSM
