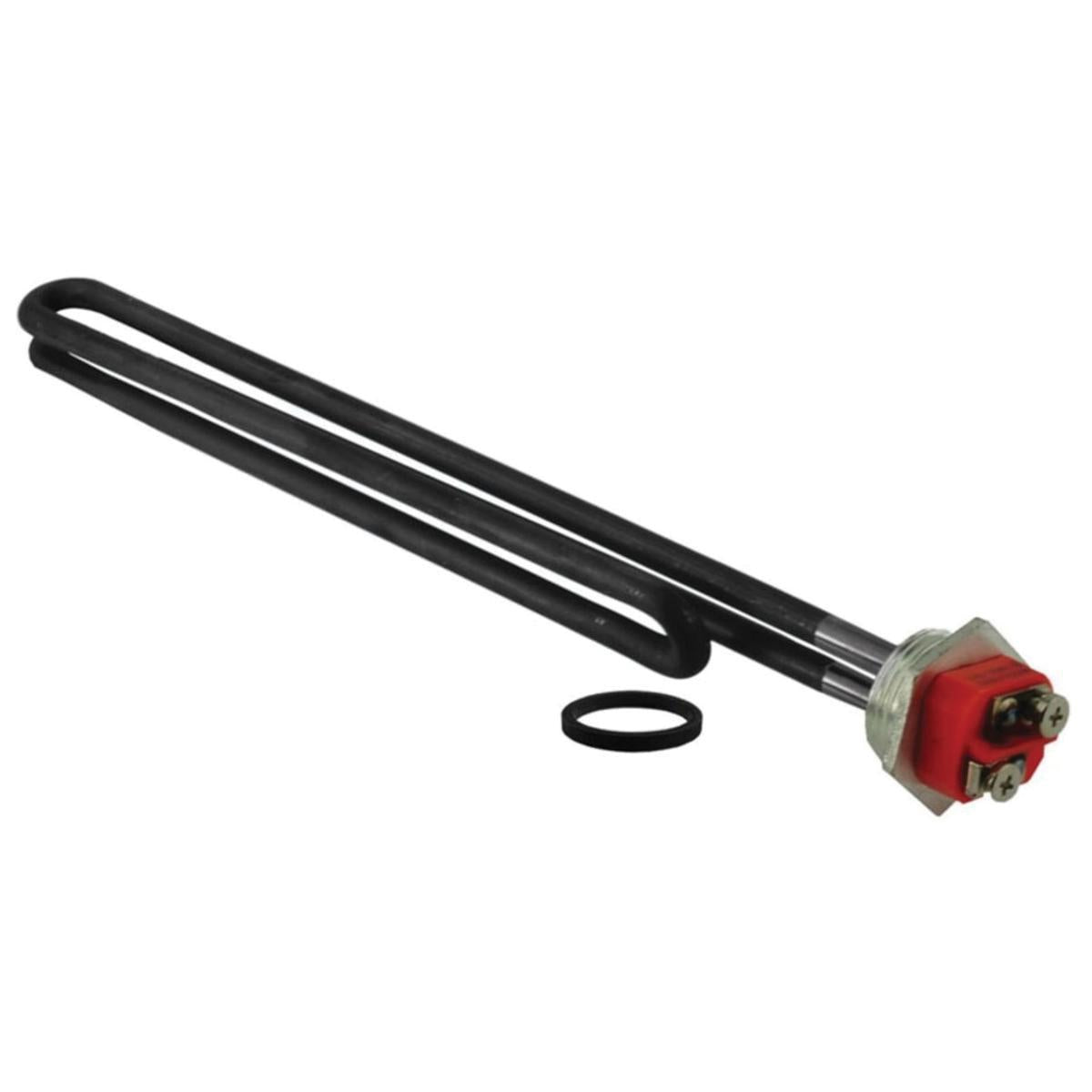

Rheem SP10868FL 1 NPT 120V/1500W Stainless Steel Resistored LWD Element

Product Description

The Rheem SP10868FL is a heating element for water heaters. This model is powered by 120 volts with a wattage of 1500 watts. The design uses stainless steel to ensure durability and corrosion resistance. The low-watt density (LWD) feature minimizes lime build-up and extends the service life of this element. It includes a one inch NPT fitting for easy installation.

• Includes gasket
• Provides uniform heat distribution
• Constructed with durable stainless steel

Product Highlights

This heating element is ideal for various water heater applications, ensuring efficient and effective heating while maximizing longevity.

Product Information

Standard Information

• Manufacturer: Rheem
• Part Number: SP10868FL

Technical Specifications

• Input Voltage (V): 120
• Wattage at 120V (W): 1500
• Mounting Type: Threaded
• Element Length - Flange to Tip (in.): 10.44
• Outer Sheath Material: Stainless Steel (Incoloy)
• Resistored: Yes
• Watt Density Classification: LWD
