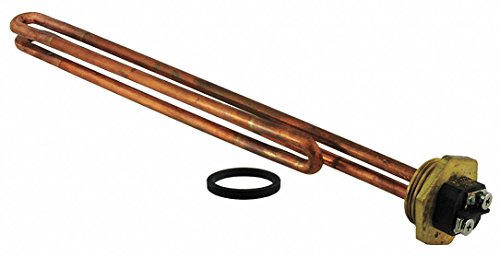

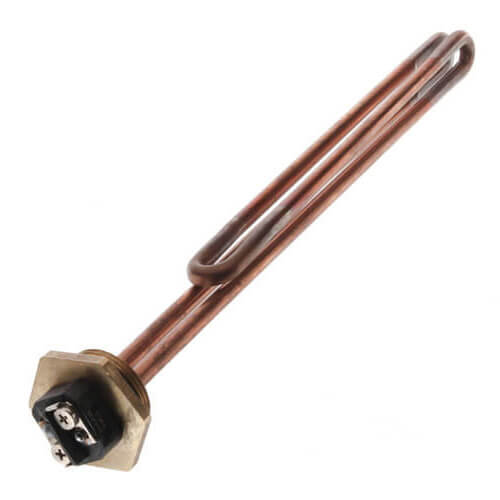

Rheem SP10698PH 5500W Performer Element 240V

Product Description

The Rheem SP10698PH is a 5500W performer element designed for use with water heaters. This element operates at 240 volts and is engineered for efficient performance. The Rheem SP10698PH ensures reliable hot water delivery, making it a crucial component for both residential and commercial water heating systems.

• Powerful 5500W heating element
• Operates at 240V
• Designed for Rheem water heaters

Product Highlights

This 5500W performer element is ideal for maintaining a consistent hot water supply. It is made with durable materials to withstand continuous use in various environments. The foldback configuration allows for even heat distribution and efficient operation.

Product Information

Standard Information

• Brand: Rheem
• Model: SP10698PH
• Wattage: 5500W
• Voltage: 240V

Technical Specifications

• Watt Density Classification: MWD
• Input Voltage: 240
• Watt Density at 240V: 118 W/sq. in.
• Cold Resistance: 10.6 ohms
• Outer Sheath Material: Copper
• Configuration: Foldback
• Element Diameter: 0.316 inches
• Element Length: 12.33 inches
• Mounting Type: Threaded
• Actual Thread Size: 1.5 inches
• Nominal Thread Size: 1.5 inches
• Threads per Inch: 12
• Thread Type Series Designation: UNF
• Hex Head Size: 1-7/8 inches
