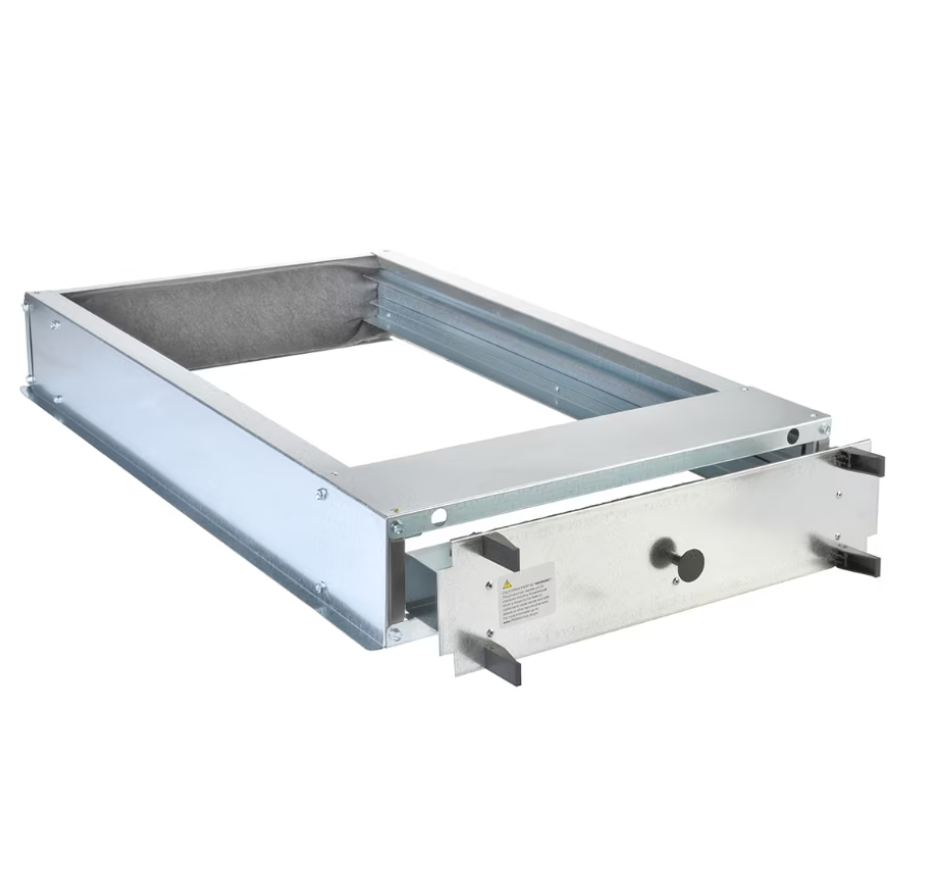

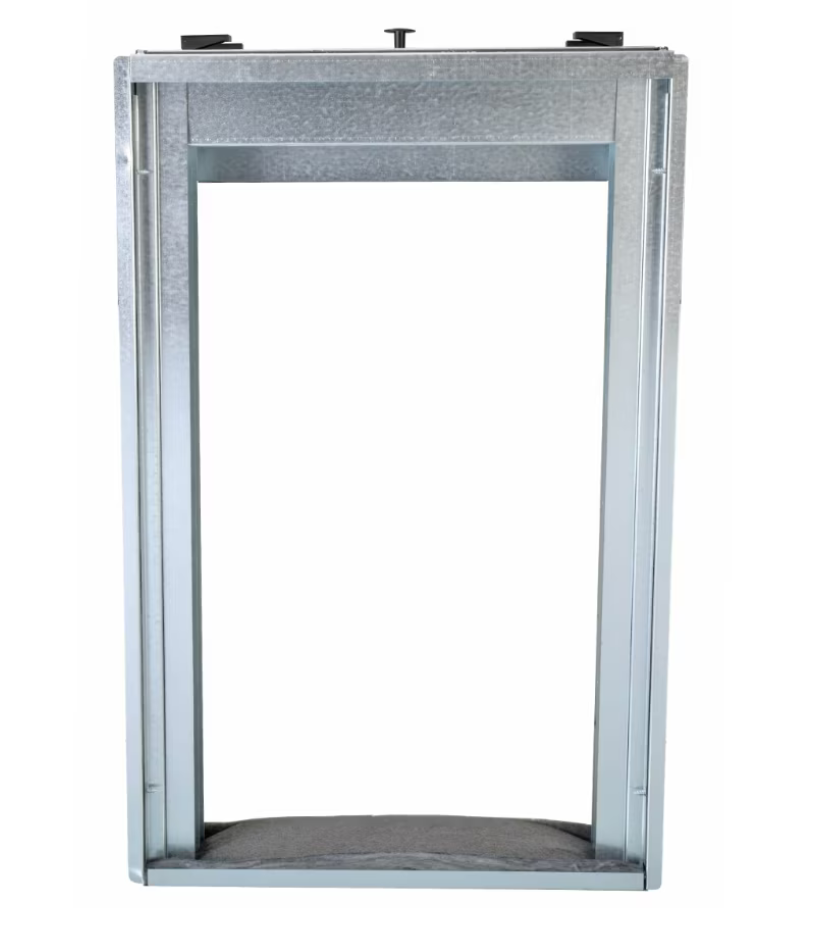

Rheem RXGF-F17 Protech Furnace Filter Rack 17 in

Product Description

The Rheem RXGF-F17 ProTech® furnace filter rack, from the RXGF series, is designed to fit ProTech® furnaces for optimum system performance. These furnace filter holders feature a removable door for easy access to the furnace filters and are insulated for increased efficiency. For use with gas furnaces.

• Removable door for easy furnace filter access
• Insulated for increased efficiency
• Eliminates air restrictions commonly caused by standard-sized furnace filter racks

Product Highlights

The Rheem RXGF-F17 filter rack ensures optimal system performance with easy filter access and increased efficiency.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RXGF-F17

Technical Specifications

• Product Group: Filter Racks
• Door Type: Removable
• Duct Configuration: Through
• Application: Upflow - Gas
• Housing Overall Outside Height: 4 3/16 in
• Housing Overall Outside Length: 28 5/16 in
• Housing Overall Outside Width: 17.50 in
• Number Of Filters Per Unit: 1
• Insulation: Yes
• Air Opening Inlet Length: 23 9/16 in
• Air Opening Inlet Width: 15 in
• Air Opening Outlet Length: 23 9/16 in
• Air Opening Outlet Width: 15 in
• Door Opening Dimension and Location: 17 1/2 in, Side
• Replacement Media Dimensions (Actual): 15-7/8 x 24-11/16 in
• Replacement Media Dimensions Nominal: 16x25 in
• Replacement Media Thickness: 1 in;2 in
• Size: 17 in
• Brand: Rheem
• Model #: RXGF-F17
