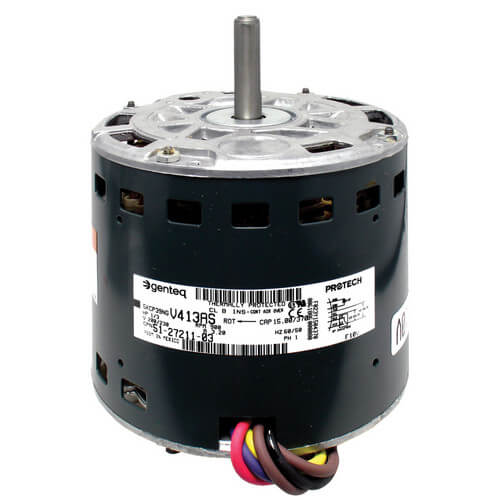

Rheem 51-27211-03 1/3HP 208-230V 825RPM 2-Speed Motor

Product Description

Rheem 51-27211-03 is a robust 1/3 horsepower, 2-speed electric motor designed for HVAC systems. Perfectly suited for industrial applications, this motor operates on 208 to 230 volts and achieves speeds of 825 RPM.

• Supports dual speed operation for flexible usage.
• Engineered for direct drive installations.
• Sleeve bearing type ensures longevity and reliability.

Product Highlights

Constructed from premium materials, the Rheem 51-27211-03 motor is designed to provide exceptional performance and durability. Its features include a shell-band and shell-screw mounting method, and a compact design that fits well in tight spaces.

Product Information

Standard Information

• Brand: Rheam-Ruud
• Frame Size: 48
• Application: Blower
• Drive Type: Direct Drive

Technical Specifications

• Power: 1/3 Horsepower
• Speeds: Two
• Voltage: 208V, 230V
• Rotation: Counter Clockwise
• Frequency: 60 Hz, 50 Hz
• Run Capacitor: 15 uF / 370 V
• FLA at 230V: 3.2 Amps
• LRA at 230V: 3.9 Amps
