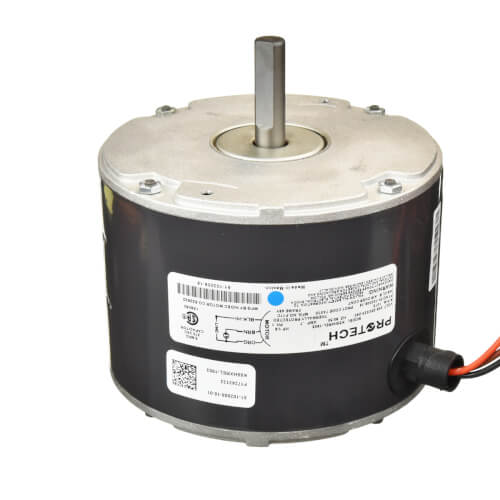

RHEEM RUUD 51-102008-18 Fan Motor 1/8HP 1075RPM 208-230V 48FRAME

Product Description

This Rheem Ruud 51-102008-18 Fan Motor is designed for efficienct operation in HVAC systems. Engineered for reliability, this 1/8HP motor delivers a consistent 1075 RPM at voltages between 208 and 230V. Its 48 frame size ensures compatibility with select HVAC models.

• Designed for seamless integration in specific HVAC systems.
• Operates efficiently with a 1/8 horsepower capability.
• Built to provide long service life under typical industrial conditions.

Product Highlights

The Rheem Ruud fan motor is perfect for replacing motors in HVAC systems that require precise operational efficiency and reliability. The single-speed motor features a standard 1075 RPM and works with a voltage range from 208 to 230V.

Product Information

Standard Information

• Brand: Rheem Ruud
• MPN: 51-102008-18

Technical Specifications

• RPM: 1075
• Voltage Rating: 208 to 230V
• Type: Condenser Fan Motor
• Frame: 48
• Phase: 1-Phase
• Shaft Diameter: 1/2 inch
• Shaft Length: 1-3/4 inch
• No Load RPM: 1075
• Capacitor: 5/370 uF/V
• Amperage Rating: 0.7A Full Load at 230V
