Rheem RTG20280-1 Horizontal Vent-Straight Termination Kit

Product Description

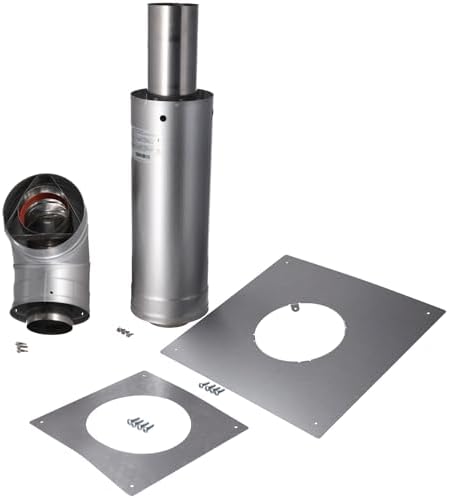

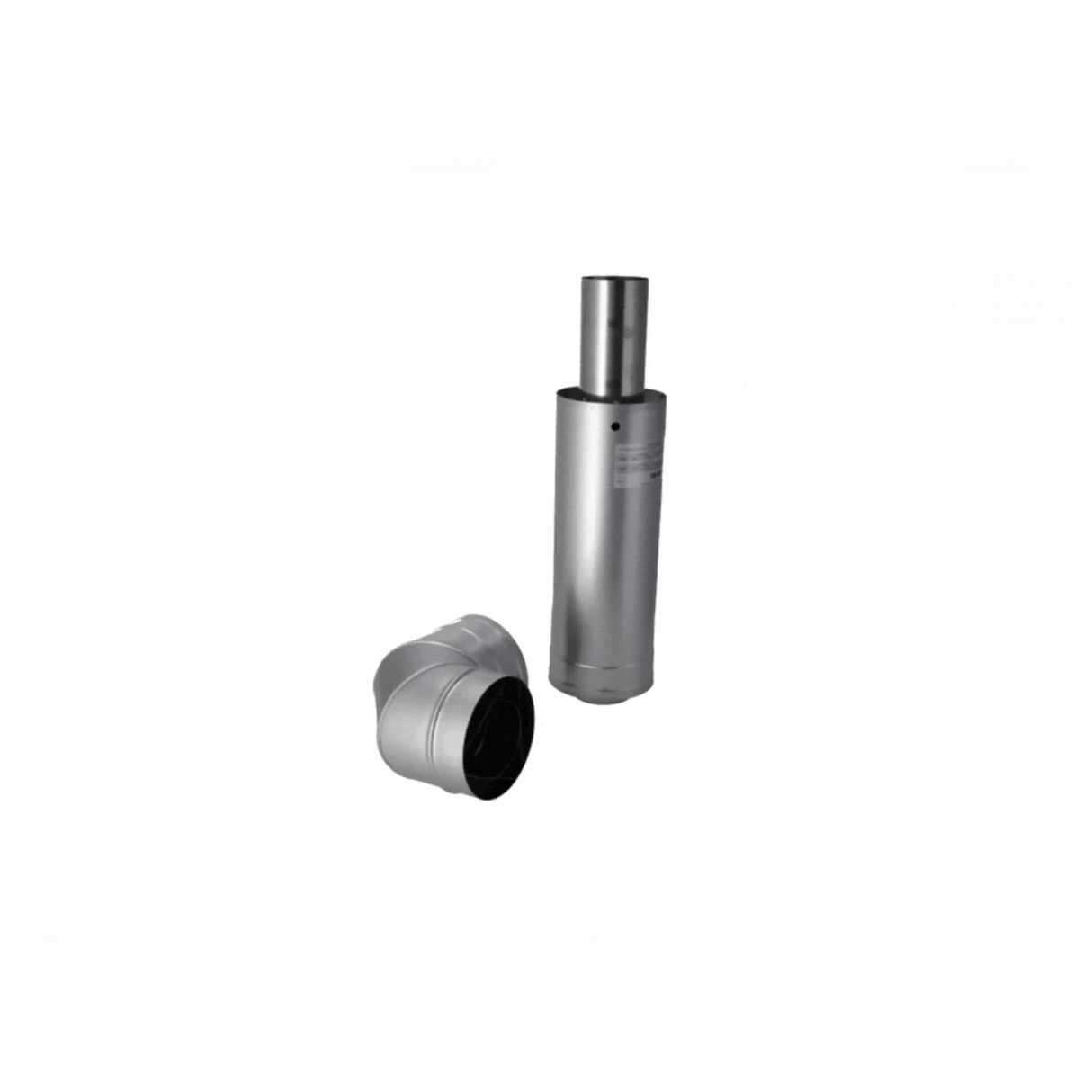

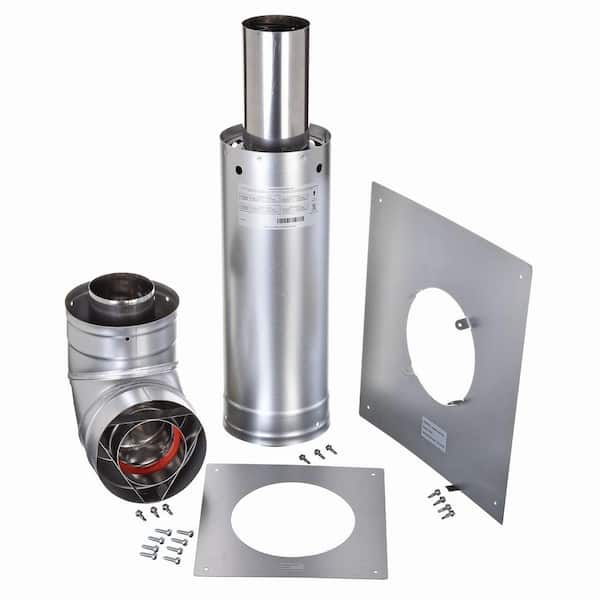

The Rheem RTG20280-1 Horizontal Vent-Straight Termination Kit is designed for use with Rheem EcoSense Mid Efficiency tankless gas indoor direct vent Units. Constructed of durable stainless steel, the kit includes the components required to construct a typical through-the-wall venting system with horizontal termination.

• Durable stainless steel components
• 12-inch wall plate included with screws

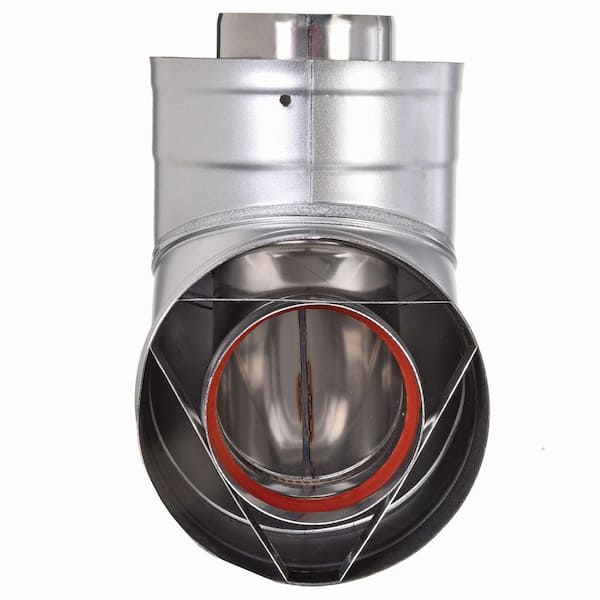

• 94-degree elbow included

Product Highlights

This kit can be extended for up to 10-inch walls and is compatible with Rheem EcoSense tankless gas units.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RTG20280-1

Technical Specifications

• Product Type: Termination Kit
• Vent Type: Concentric
• Brand: Rheem
• Efficiency: Mid Efficiency
• Mounting Type: Wall
• Is Electric: No
• Manufacturer: Rheem
• Model: Rheem ProTech Horizontal Vent Straight Termination Kit for Tankless Gas Non-Condensing Water Heaters (Max Wall Thickness 10") - RTG20280-1
• Item model number: RTG20280-1
• Manufacturer Part Number: RTG20280-1
• Dimensions: H: 20.85 in
• W: 11.25 in
• D: 21 in
• Power Source: Gas
• Items Included: Screws
• Compatible Product: Tankless Water Heater/Boiler
• Compatible Brand: Rheem
• Style: Straight
• Features: High Quality Coating to Prevent Corrosion
• Material: Stainless Steel
• Type: Water Heater Venting Part
• Item Height: 20.85 in
• Item Diameter: 5 in
• MPN: RTG20280-1
