Product Description

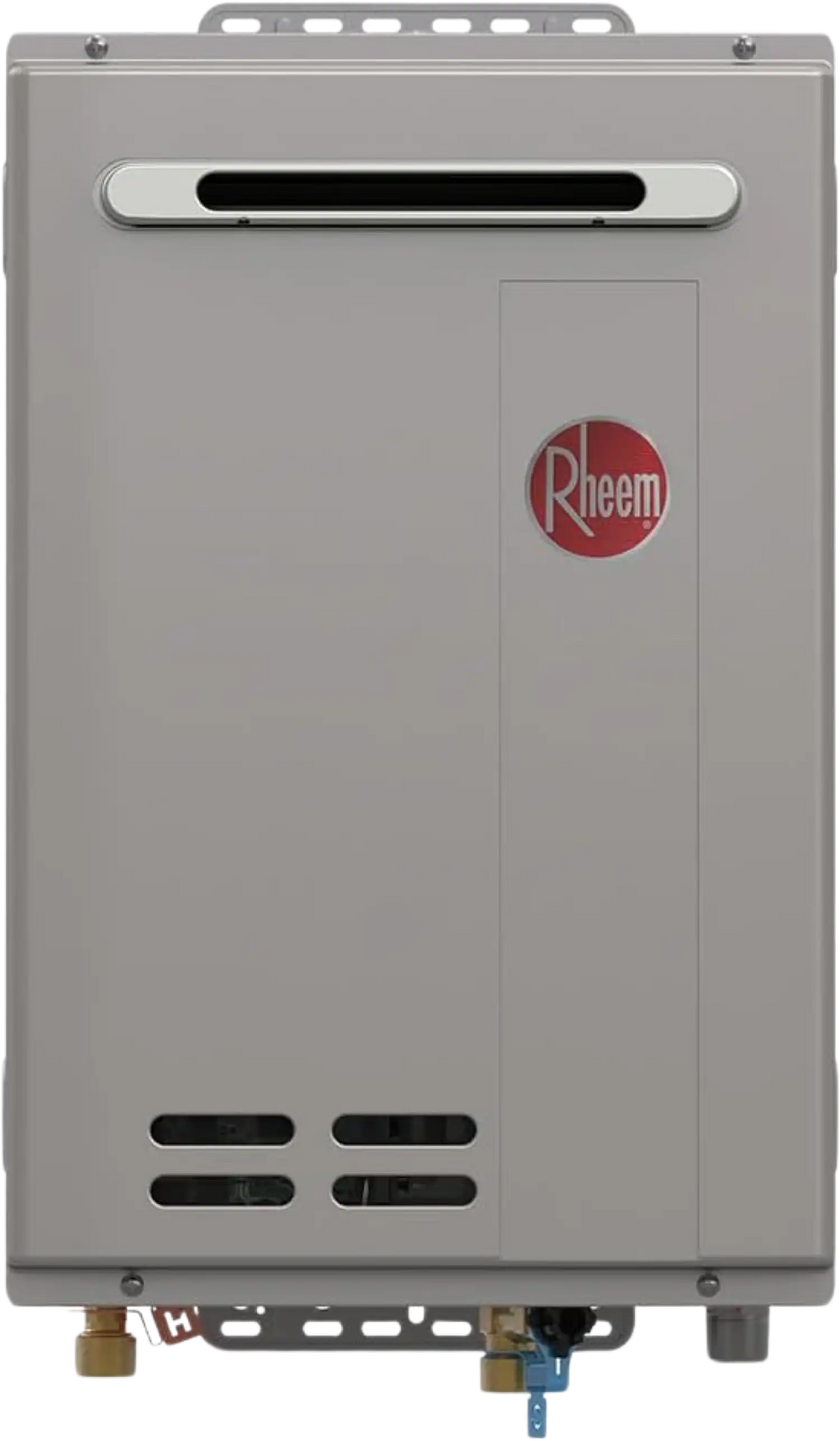

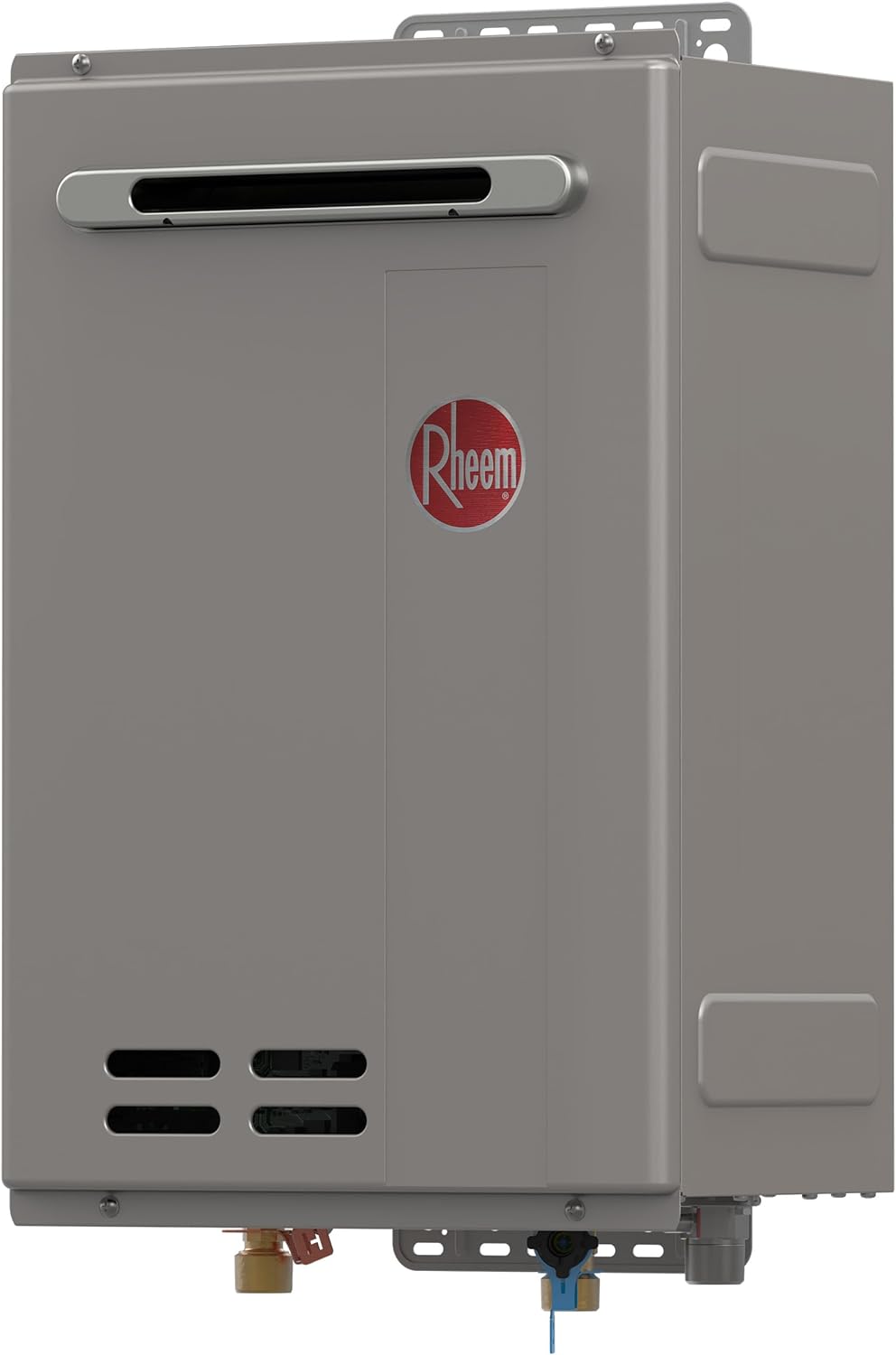

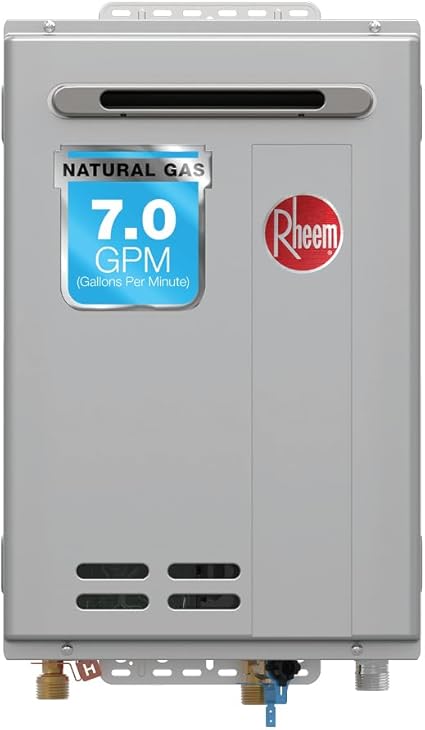

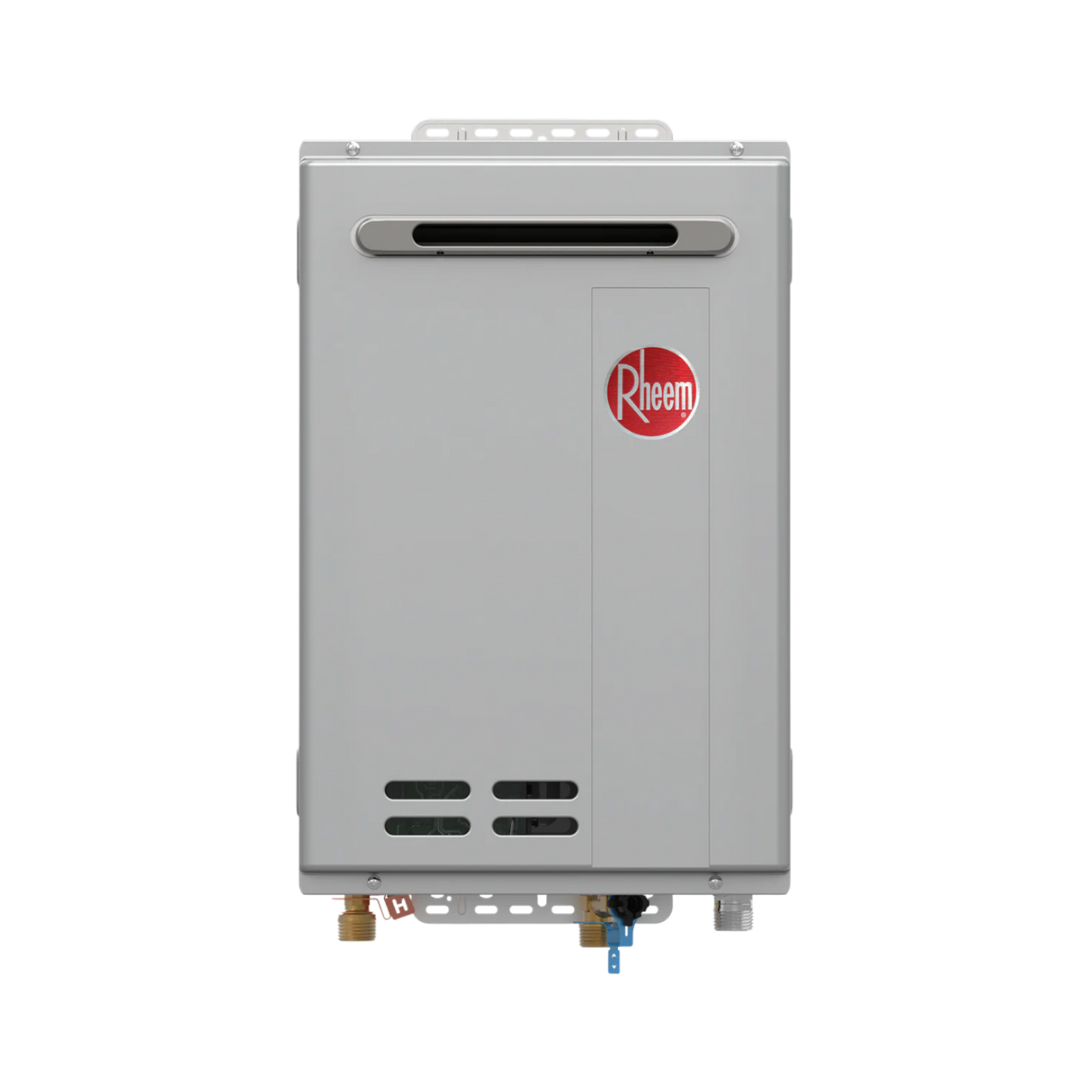

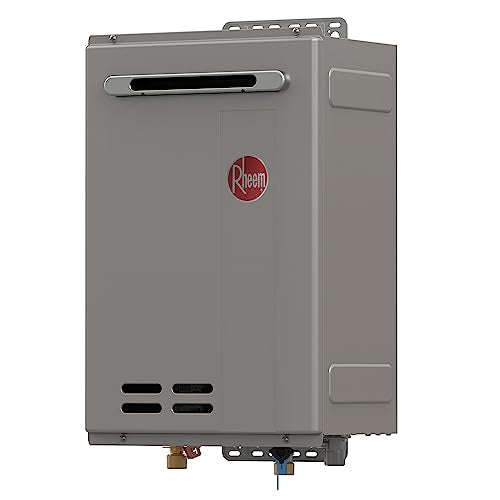

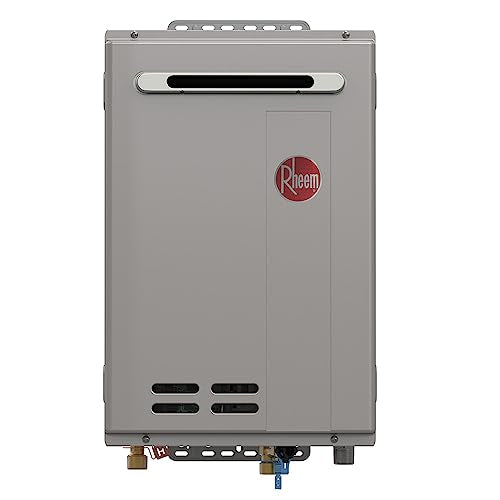

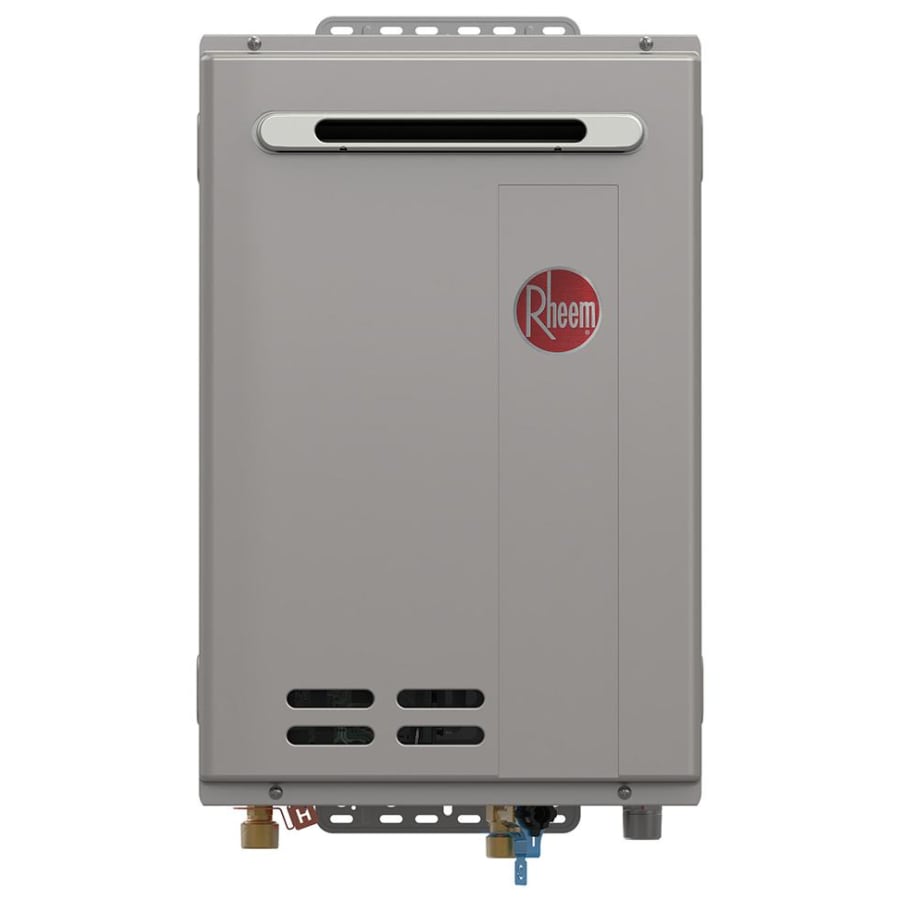

The Rheem RTG-70XLN-3 is a high-efficiency outdoor tankless natural gas water heater. It features exclusive Hot Start Programming, which keeps the water heater in a ready state, eliminating cold water bursts. This non-condensing water heater delivers continuous hot water with a maximum flow rate of 7.0 GPM and a maximum gas input of 160,000 BTU.
- Delivers up to 7.0 GPM, suitable for homes with multiple bathrooms.
- Powered by natural gas with 160,000 BTUs for fast and reliable hot water.
- Features Overheat Film Wrap for heat exchanger overheat protection.
Product Highlights
High-efficiency, space-saving design for continuous hot water. Ideal for outdoor installation with easy wall mounting. Compact size saves valuable floor space.
Product Information
Standard Information
-
Brand: RHEEM
-
Manufacturer Part Number: RTG-70XLN-3
-
Country of Origin: Japan
Technical Specifications
-
Brand: Rheem
-
Model / MPN: RTG-70XLN-3
-
Fuel Type: Natural Gas
-
Max GPM: 7
-
BTU: 160,000 BTU
-
Efficiency: 0.82
-
Height: 20.75"
-
Width: 13.5"
-
Depth: 9.4"
-
Gas Connection: 3/4"
-
Connection Size: 3/4"
-
Water Pressure (Min): 14 psi
-
Water Pressure (Max): 150 psi
-
Temperature (Min): 100°F
-
Temperature (Max): 140°F
-
Voltage: 120V
-
Amperage: 1.1A
-
Maximum Flow Rate: 7 GPM
-
Maximum Gas Input: 160000
-
Minimum Flow Rate: 0.4 GPM
-
Liquid Propane Pressure (Max): 13.0 WC
-
Liquid Propane Pressure (Min): 8.0 WC
-
Ignition Type: Electric
-
Energy Factor: 0.81
-
Max BTU Input: 160000
-
Default Temperature: 120 °F
-
Wattage: 132
-
Series: RTG
-
Vent Type: Vent Free
-
Water Connection Type: NPT
-
Heating Technology: Non-Condensing
-
Display Type: LED
-
Special Feature: Self diagnostic program, hot-start programming, freeze protection, low activation flow rate, EZ-link cable, digital display
-
Gas Input BTU/H (min-max): 11,000-160,000
-
Max Gallons Per Minute (GPM): 7.0
-
Number of Bathrooms: 2.5
-
Uniform Energy Factor (UEF): 0.82
-
Installation Type: Outdoor
-
Sustainable: Yes
-
Leak Detection Enabled: Yes
-
Tankless Type: Non-Condensing
-
Energy Source: Natural Gas
-
Max Heating BTU: 160,000
-
Heating Capacity: 160 KBtu/hr
-
Indoor/Outdoor: Outdoor
-
Condensing/Non Condensing: Non-Condensing
-
Ultra Low NOx: Yes
-
Manufacturer Part Number: RTG-70XLN-3
