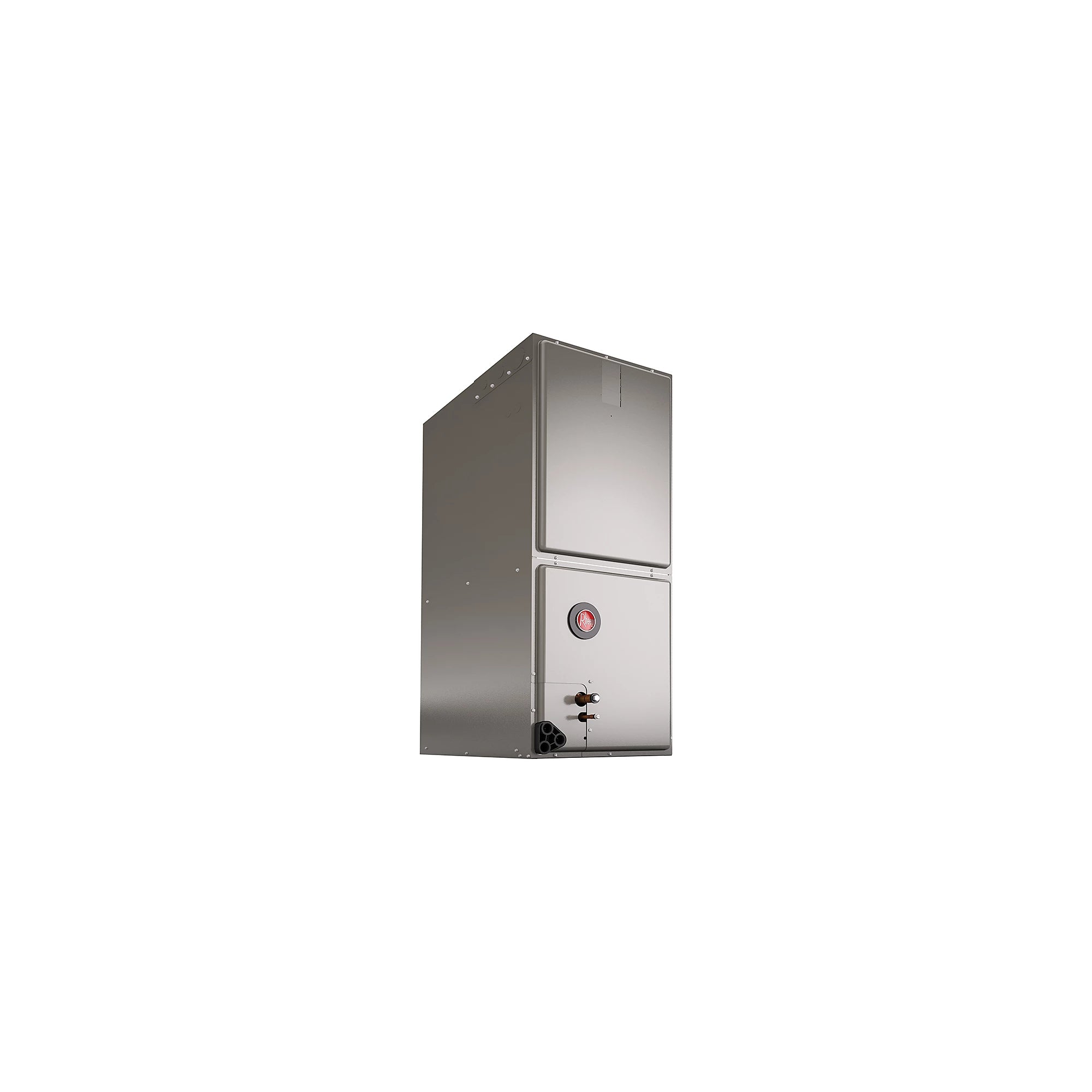

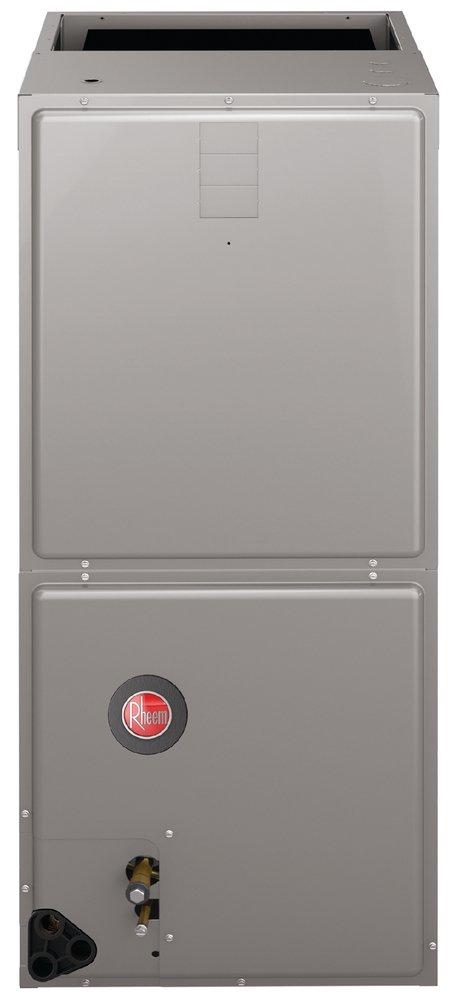

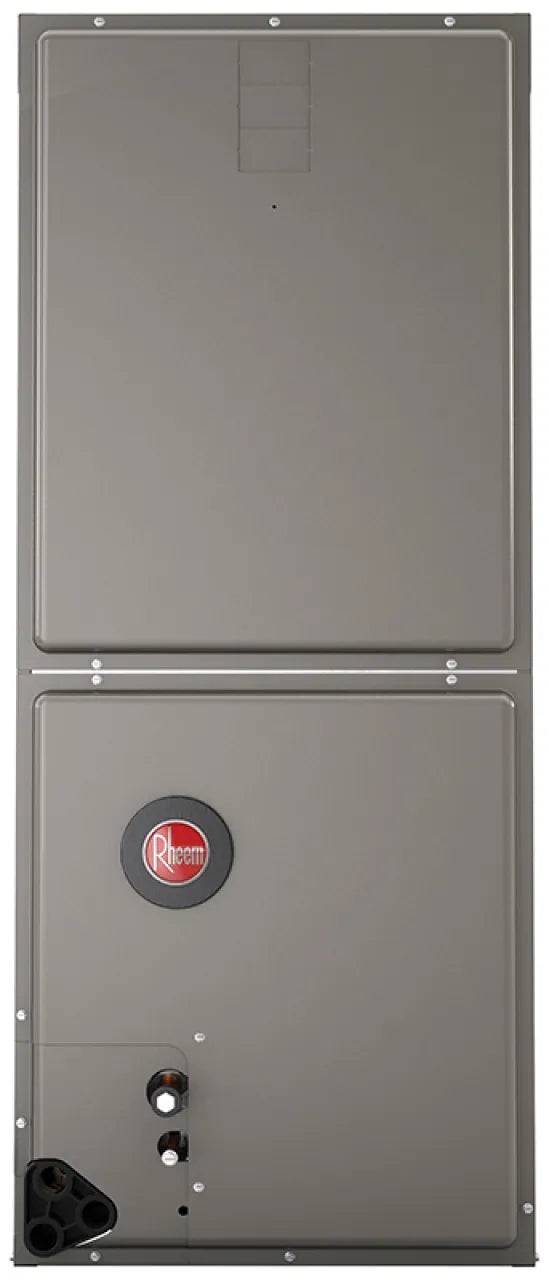

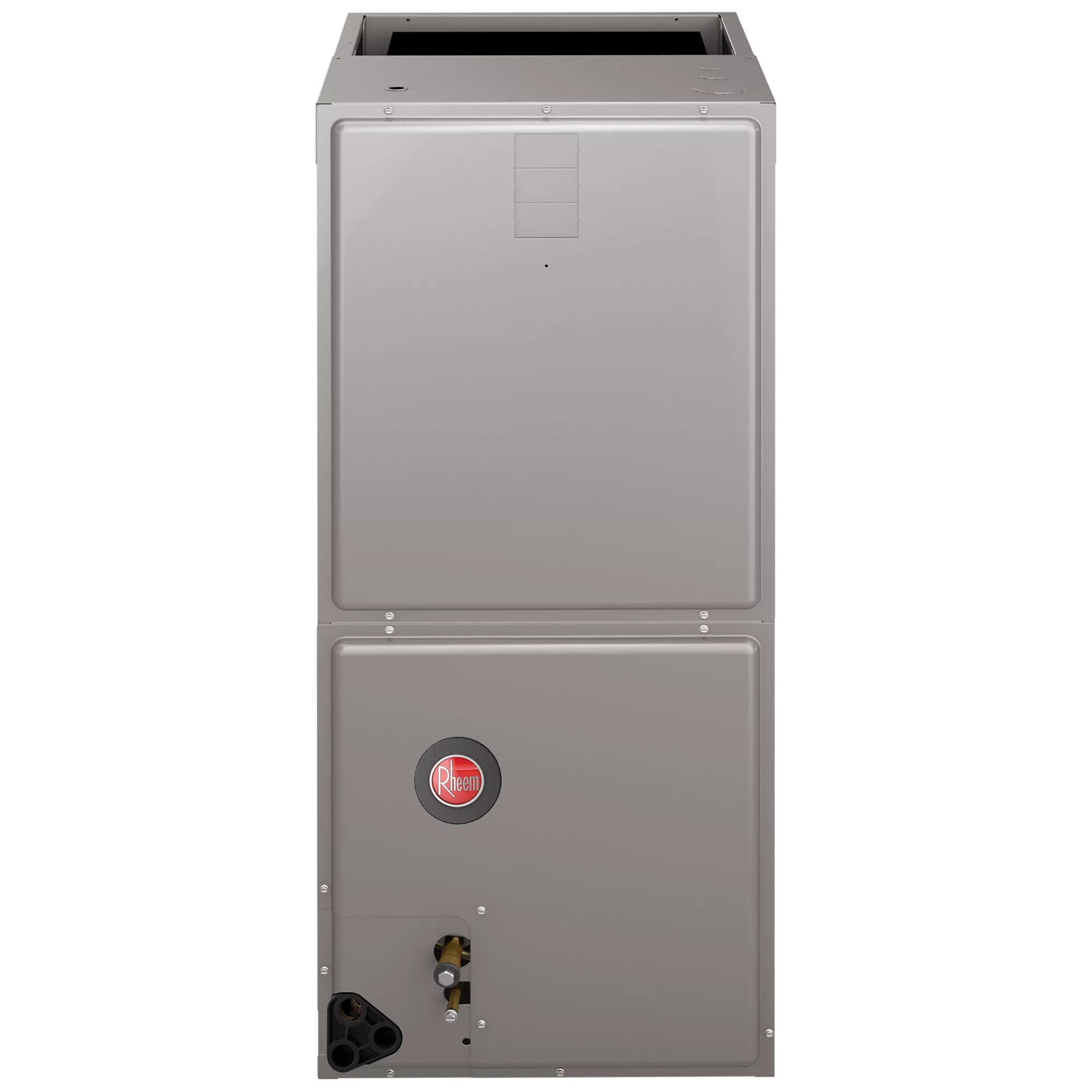

Rheem RH2TZ4824STANNJ 4 Ton Air Handler 208-240/1/60 Convertible R-410A

Product Description

The RHEEM RH2TZ4824STANNJ is a 4 ton air handler designed for indoor use. This unit features a 2-stage constant torque motor (ECM) and is compatible with R-410A refrigerant. The convertible design allows for versatile 4-way airflow: upflow, downflow, horizontal left, and horizontal right applications. It operates at 208-240 VAC and 60 Hz.

• Utilizes R-410A refrigerant.
• Features a 2-stage constant torque air handler.
• Offers a versatile 4-way convertible design.

Product Highlights

This RHEEM air handler provides enhanced SEER2 performance and is suitable for mobile home applications. It features a factory-installed indoor coil and sturdy cabinet construction.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RH2TZ4824STANNJ
• Country of Origin: MEX

Technical Specifications

• AHRI - Usage: Indoor AHU
• Air Flow Direction: Convertible
• Blower Motor HP: 3/4 HP
• Blower Motor Speeds: 4 (Four)
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Rheem
• Cabinet Width: 24.5"
• CFM: 1050-1400
• Cooling Capacity: 48000
• Cycle/Hertz: 60 Hz
• Drain Connection Quantity: 3
• Drain Connection Size: 3/4"
• Electric Heat Range [kW]: 0
• Energy Star Rated: No
• Equipment Type: Straight Cool
• ETL Listed: No
• Filter Size: 25" x 20"
• Heat Pump Compatible: Yes
• Includes Filter Rack: No
• Liquid Line Fitting Type: Sweat or Braze
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• Phase: Single
• Product Family: RH2TZ
• Prop 65: Yes
• Refrigerant: R-410A
• Stage: Two
• Tonnage: 4
• UL Listed: Yes
• Voltage: 208-240 VAC
• Maximum Overcurrent Protection (MOCP): 15
• Country of Origin: MEX
• Motor Type: Constant Torque (ECM)
• Airflow Stages: Two - Stage
• Expansion Device: Thermal Expansion Valve (TXV)
• Efficiencies: 13.4 to 16 SEER2
• Approvals: UL Listed
• Substantial Commodity: Steel; Copper; Aluminum
