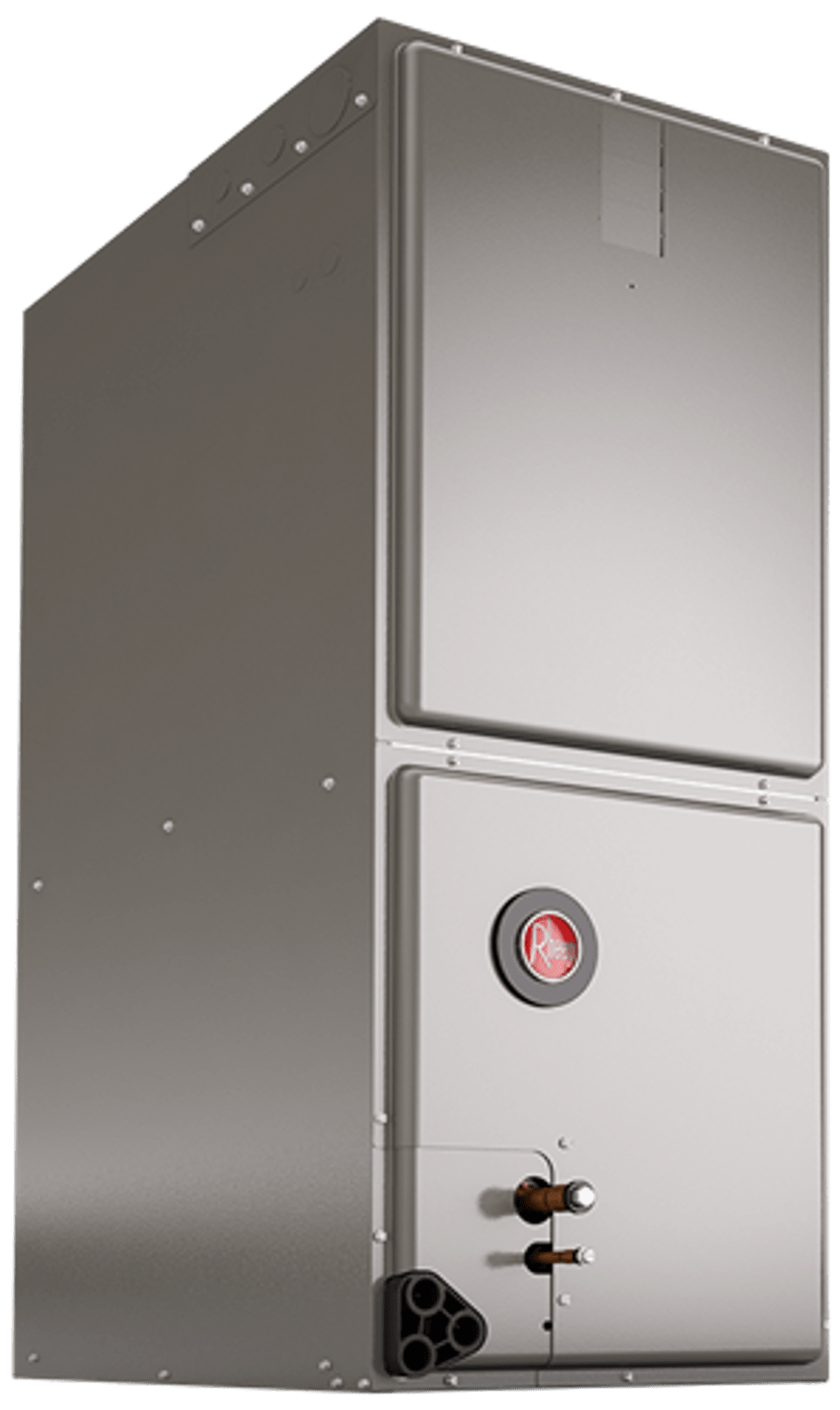

Rheem rh2ty6024stannj 5 Ton Two Stage Air Handler Ecm

Product Description

The RHEEM rh2ty6024stannj is a 5-ton, two-stage residential air handler built for split-system cooling with R-454B refrigerant. It uses a constant torque ECM blower motor rated at 3/4 horsepower and 559 watts, delivering airflow between 1,200 and 1,600 CFM across a speed range of 300 to 1,100 RPM. The unit is SEER-rated between 13.4 and 16 and carries a nominal cooling capacity of 60,000 BTU/h. A factory-installed TXV metering device and N-coil drain configuration come standard. AHRI Certified and cULus Listed. Licensed HVAC technicians perform installation on new construction and retrofit residential projects.

This air handler is suited for residential split-system applications requiring a multi-position, non-communicating indoor unit compatible with R-454B refrigerant. The two-stage operation provides improved humidity control and part-load efficiency compared to single-stage units. The RH2TY Series supports downflow, upflow, horizontal left, and horizontal right configurations, making it adaptable to attic, closet, basement, and utility room installations. Electric heat capability is included. The unit accepts a 25 x 20 inch filter and operates on a single-phase, 208-240 volt, 60 Hz power supply.

Key Features

• Two-stage operation with constant torque ECM blower motor for improved part-load efficiency and humidity control
• Compatible with R-454B low-GWP refrigerant
• Multi-position cabinet supports upflow, downflow, horizontal left, and horizontal right installations
• Factory-installed TXV metering device for precise refrigerant control
• Electric heat compatible with AHRI Certified and cULus Listed ratings
• SEER rating range of 13.4 to 16 depending on matched outdoor unit

Compatibility

Designed for use in residential split-system configurations paired with a compatible R-454B outdoor condensing unit. Non-communicating controls interface with standard thermostat wiring. Consult AHRI certification directory to confirm matched system ratings for your specific outdoor unit pairing.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation instructions. Disconnect and lock out all electrical power before servicing or installing the unit. Refrigerant handling requires EPA Section 608 certification. Verify suction line size of 7/8 inch and liquid line size of 3/8 inch are matched at the line set before commissioning.

Technical Specifications

• Nominal Cooling Capacity: 5 ton (60,000 BTU/h)
• SEER Rating: 13.4 to 16
• Stages: 2
• Voltage Rating: 208-240 volts
• Phase: 1
• Frequency: 60 Hz
• Amperage Rating: 7 amps
• Circuit Amperage: 6 amps
• Motor Amps: 5.6 amps
• Maximum Fuse Size: 15 amps
• Motor Type: Constant Torque ECM
• Horsepower: 3/4 hp
• Wattage Rating: 559 watts
• Airflow: 1,200 to 1,600 CFM
• Motor Speed Range: 300 to 1,100 RPM
• Refrigerant: R-454B
• Metering Device: TXV
• Configuration: Upflow, Downflow, Horizontal Left, Horizontal Right
• Suction Line Size: 7/8 inch
• Liquid Line Size: 3/8 inch
• Filter Size: 25 x 20 inches
• Return Air Opening Width: 22-7/8 inches
• Return Air Opening Depth: 19-3/4 inches
• Width: 24-1/2 inches
• Height: 55-1/2 inches
• Depth: 21-11/16 inches
• Weight: 161 pounds
• Material: Steel
• Coil Drain Configuration: N-Coil
• Controls: Non-Communicating
• Electric Heat Compatible: Yes
• Standards and Approvals: AHRI Certified, cULus Listed
• Warranty: 10 years, Limited

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: rh2ty6024stannj
