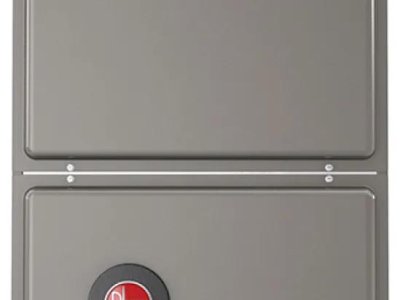

Rheem rh2ty2417stannj 2 Ton 2 Stage Air Handler Ecm Txv R454B

Product Description

The RHEEM rh2ty2417stannj is a 2-ton, two-stage residential air handler designed for use with heat pump and air conditioning systems. It features a constant torque ECM blower motor, a factory-installed TXV, and is rated for 13.4 to 16 SEER2 efficiency depending on the matched outdoor unit. The unit operates on 208/240 volt single-phase power and is compatible with R454B refrigerant, which meets current low-GWP refrigerant standards. Licensed HVAC technicians install this unit in new construction and replacement applications where multi-position flexibility is required.

The rh2ty2417stannj belongs to the Rheem RH2TY series and supports upflow, downflow, and horizontal installation orientations, making it adaptable to a wide range of residential and light commercial duct configurations. The two-stage operation allows the system to run at a lower capacity during mild conditions, reducing short-cycling and improving dehumidification performance. It is suited for split-system heat pump and central air conditioning installations where a high-efficiency, R454B-compatible air handler is needed to meet current efficiency and refrigerant regulations.

Key Features

• Constant torque ECM blower motor for consistent airflow across static pressure variations
• Two-stage operation supports better humidity control and reduced short-cycling
• Factory-installed TXV for accurate refrigerant metering without field add-ons
• Multi-position installation: upflow, downflow, and horizontal orientations supported
• R454B refrigerant compatible, meeting current low-GWP requirements
• 208/240 volt single-phase power supply for standard residential electrical service

Compatibility

Designed for use in split-system heat pump and central air conditioning applications as part of the Rheem RH2TY series. Compatible with R454B refrigerant systems. Specific matched outdoor unit pairings should be confirmed using Rheem's AHRI-certified system matching data to achieve rated SEER2 efficiency.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect and lock out all electrical power before servicing or connecting wiring. R454B is a mildly flammable (A2L) refrigerant — follow applicable handling, storage, and installation procedures required by local codes and ASHRAE 15. Verify duct connections, drain pan, and condensate line are properly secured and pitched before startup.

Technical Specifications

• Series: RH2TY
• Capacity: 2 Ton
• Stages: 2
• SEER2 Rating: 13.4 to 16
• Blower Motor Type: Constant Torque ECM
• Refrigerant Metering: Factory-Installed TXV
• Refrigerant: R454B
• Voltage: 208/240 volts
• Phase: Single Phase
• Installation Orientation: Upflow, Downflow, Horizontal
• Application: Heat Pump and Air Conditioning (HP/AC)

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: rh2ty2417stannj
