Rheem RH1PZ2417STANNJ 2 Ton Air Handler 208-240/1/60

Product Description

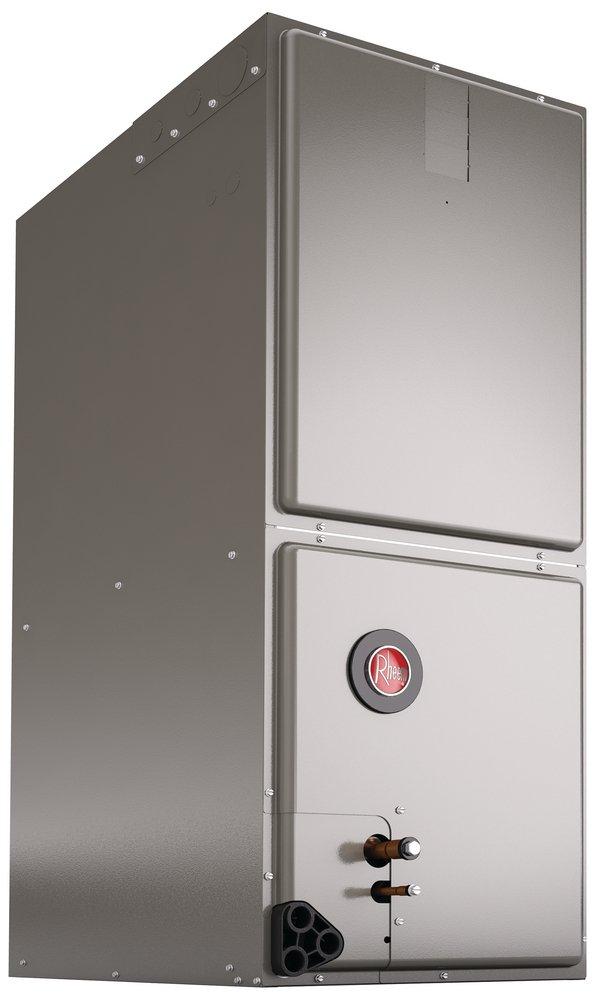

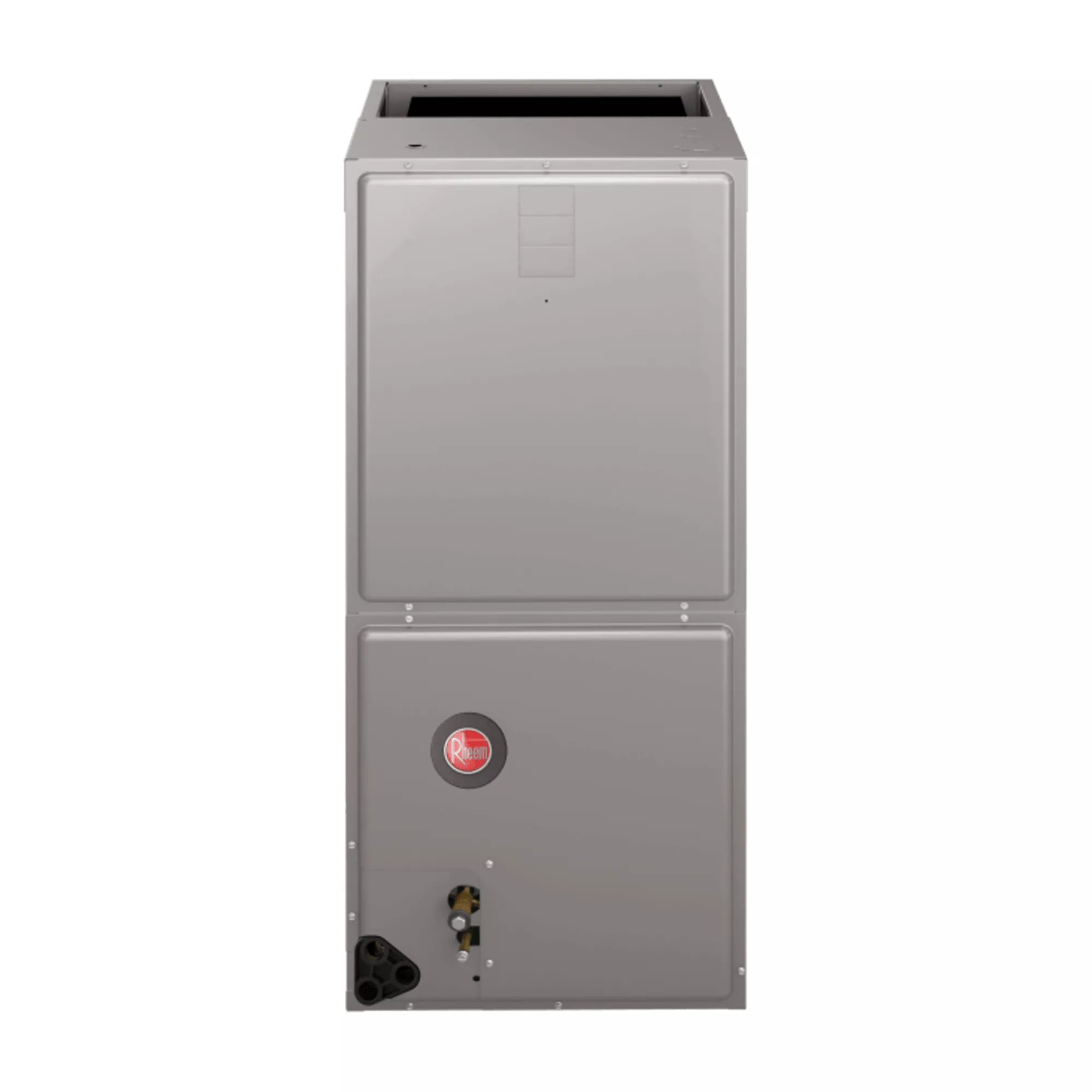

The Rheem RH1PZ2417STANNJ is a 2 ton air handler designed for indoor use. This single-stage unit features an aluminum air handler and a PSC motor. It is compatible with R-410A refrigerant and operates on 208-240 VAC at 60 Hz. The air handler supports both horizontal and vertical air flow directions.

• 2 Ton cooling capacity
• PSC (Permanent Split Capacitor) blower motor
• Multi-positional: supports horizontal and vertical airflow

Product Highlights

The Rheem RH1PZ2417STANNJ air handler is suitable for straight cool equipment types and offers a TXV/TEV metering device.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RH1PZ2417STANNJ
• Country of Origin: MEX

Technical Specifications

• AHRI - Usage: Indoor AHU
• Air Flow Direction: Horizontal / Vertical
• Blower Motor HP: 1/5 HP
• Blower Motor Speeds: 2 (Two)
• Blower Motor Type: PSC (Permanent Split Capacitor)
• Brand: Rheem
• Cabinet Width: 17.5
• CFM: 652-897
• Cooling Capacity: 24000
• Cycle/Hertz: 60 Hz
• Drain Connection Quantity: 3
• Drain Connection Size: 3/4"
• Electric Heat Range [kW]: 2.25-12.5
• Energy Star Rated: No
• Equipment Type: Straight Cool
• ETL Listed: No
• Filter Size: 16" x 20"
• Heat Pump Compatible: Yes
• Includes Filter Rack: No
• Liquid Line Fitting Type: Sweat or Braze
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• Phase: Single
• Product Family: RH1PZ
• Prop 65: Yes
• Refrigerant: R-410A
• Stage: Single
• Tonnage: 2
• UL Listed: Yes
• Voltage: 208-240 VAC
• Width: 17.5
• Maximum Overcurrent Protection (MOCP): 40
• Model: RH1PZ2417STANNJ
