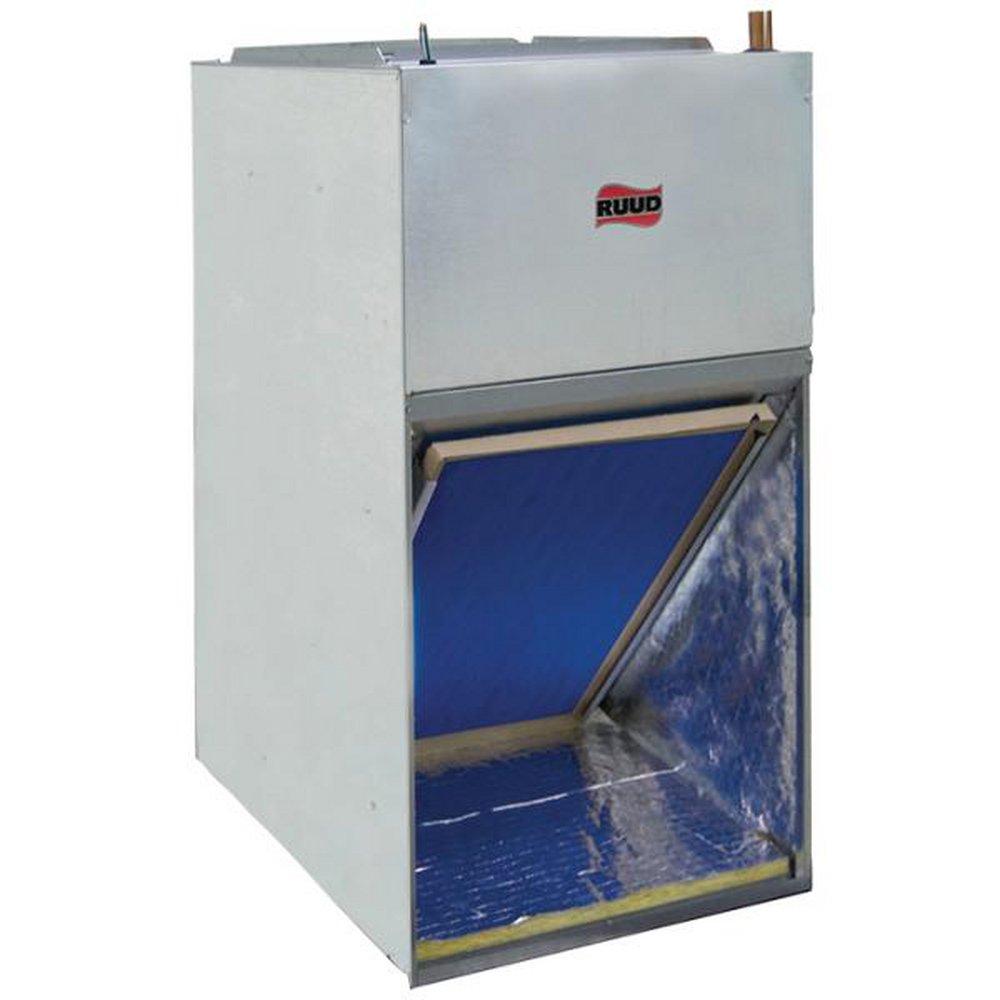

Rheem RF2TY3624STJN00417 RF2TY Series 3 Ton Air Handler - R-454B - 24.5 inches W

Product Description

The Rheem RF2TY3624STJN00417 is an RF2TY Series 3 Ton air handler designed for use with R-454B refrigerant. It features a sturdy cabinet construction with 1 inch of foil-faced insulation for sound dampening. The constant torque motor and two-stage operation provide consistent airflow and humidity control. All standard air handler models are 36" in height.

• A2L compatible
• Sturdy cabinet construction with 1 in of foil faced insulation
• Constant torque motor and two stage operation ensures a steady stream of just right heated airflow

Product Highlights

This Rheem air handler provides efficient and consistent air flow for optimal comfort and humidity control.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RF2TY3624STJN00417

Technical Specifications

• A2L Compatible: Yes
• AMP: 2.7, 4
• BTU: 36000
• BTU Cooling Rating: 36000
• Blower Type: ECM
• CFM: 1200
• Coil Type: Slab Coil
• Collection: RF2TY Series
• Communicating: Non-Communicating
• Configuration: Front
• Depth: 21
• Height: 36
• Horsepower: 1/2 hp
• MBH: 36
• Material: Aluminum
• Maximum Airflow: 1350
• Phase: Single Phase
• Power Source: Electric
• Refrigerant: R-454B
• Refrigerant Control: TXV
• SEER2 Range: 14.3 - 15.1
• Stages: Two
• Tonnage: 3 Ton
• UL Listed: Yes
• Volts: 208/230V
• Width: 24
• Series: RF2TY Series
• Part #: RF2TY3624STJN00417
• Mfr. Part #: RF2TY3624STANSJN00417
• Brand: Rheem
