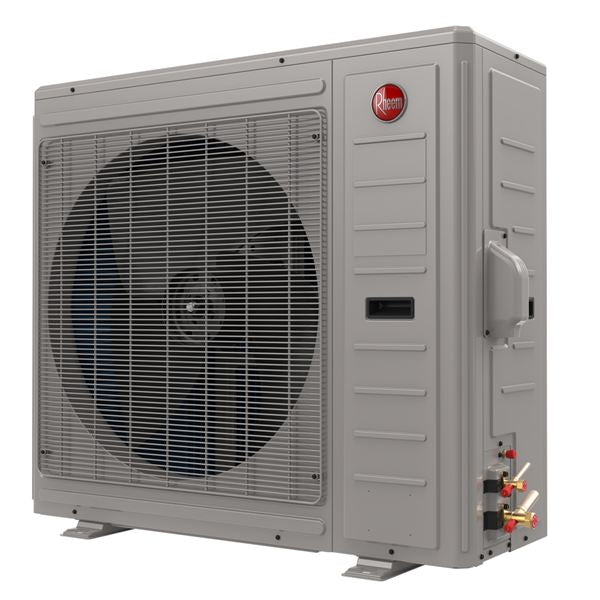

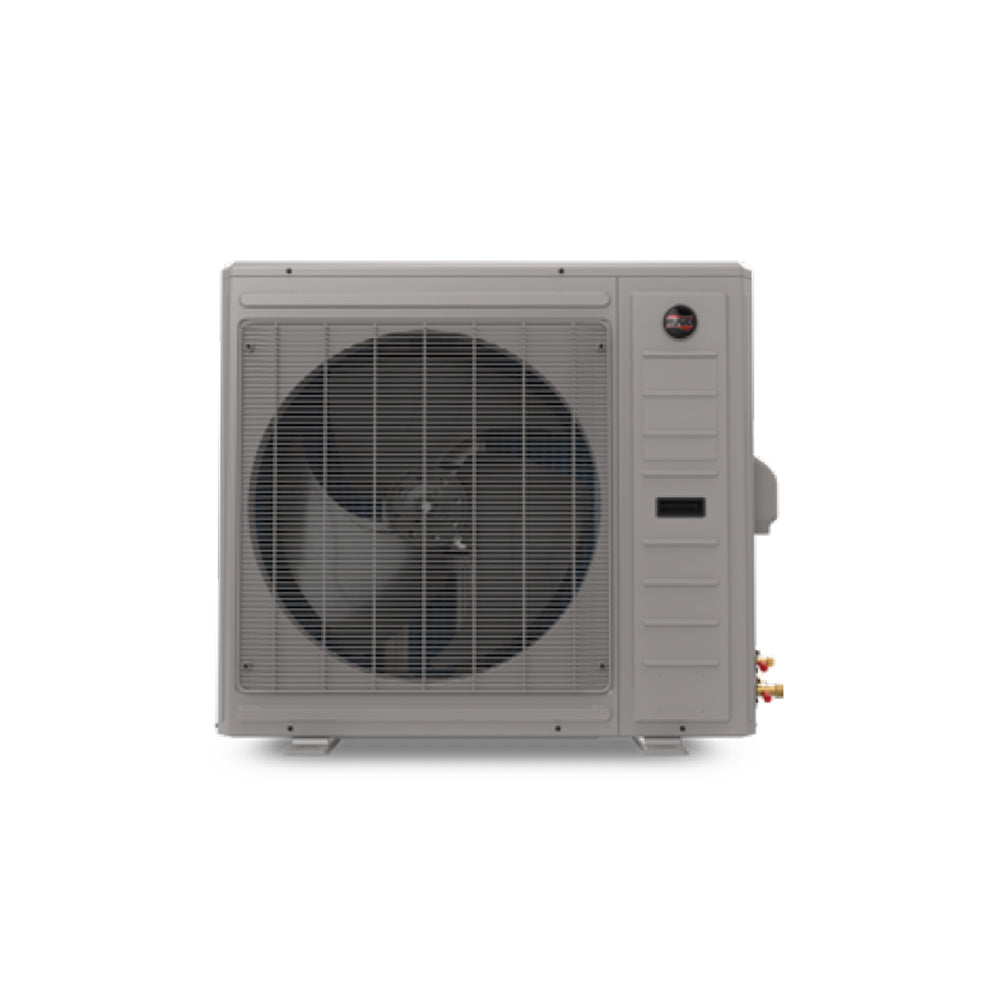

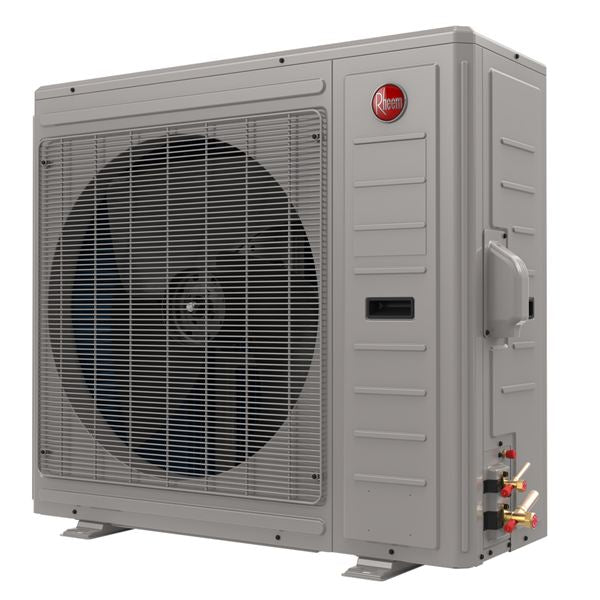

Rheem RD16AY48AJVCA Endeavor Line Classic Plus Series R-454B Inverter Driven Variable Speed Universal Heat Pump 4 Ton

Product Description

The Rheem RD16AY48AJVCA Endeavor Line Classic Plus Series 4 Ton R-454B Inverter Driven Variable Speed Universal Heat Pump is designed for efficient cooling and heating. This ENERGY STAR certified unit features a 17 SEER2/10.5 EER2/8.5 HSPF2 efficiency rating and uses R-454B refrigerant. It incorporates an inverter-driven, variable speed twin rotary compressor for precise temperature control and quiet operation, as low as 50 dBA. The unit includes PlusOne Diagnostics with Bluetooth technology for simplified service.

• High Efficiency: 17 SEER2/10.5 EER2/8.5 HSPF2
• Uses R-454B Refrigerant
• Quiet Operation: As low as 50 dBA

Product Highlights

Integrated PlusOne Diagnostics with Bluetooth and Refrigerant Detection System for enhanced protection and serviceability.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RD16AY48AJVCA

Technical Specifications

• Type: Fully Variable
• Nominal Capacity: 48000 Btu/h (14.07 kW, 4 TR)
• Liquid Line Connection Size: 3/8 in
• Suction Line Connection Size: 7/8 in
• Refrigerant Charge: 113 oz
• Refrigerant Type: R-454B
• Outdoor Coil Net Face Area: 11 ft²
• Outdoor Coil Tube Diameter: 0.276 in
• Outdoor Coil Number of Rows: 2
• Outdoor Coil Fins per Inch: 18
• Outdoor Fan Diameter: 26 in
• Outdoor Fan Number of Blades: 3
• Outdoor Fan Motor HP: 1/2 hp
• Outdoor Fan Number of Fans: 1
• Outdoor Fan CFM: 3718 ft³/min
• Outdoor Fan Motor RPM: 650
• Outdoor Fan Watts: 210 W
• Sound Level: 61 dB
• Operating Weight: 221 lb
• Voltage: 208 to 230 V
• Phase: 1
• Frequency: 60 Hz
• Max Overcurrent Protection: 45.0 A
• Min Circuit Ampacity: 26.0 A
• Compressor Rated Load Amps: 5.1 A
• Compressor Locked Rotor Amps: 58 A
• Condenser Fan Motor Full Load Amps: 3.0 A
• Condenser Fan Motor Locked Rotor Amps: 6.4 A
• Product Type: Heat Pump
• Cooling Capacity: 4 Ton
• Compressor Stage: Inverter
• Heating Capacity: 48,000 Btu
• Height: 36.5 Inches
• Width: 40.5 Inches
• Depth: 19.75 Inches
• SEER2: 17
• EER2: 10.5
• HSPF2: 8.5
