Rheem RCH-3624HTAVUA Uncased Coil R410A 3 TON REPLACEMENT RCSN-HU3624CU

Product Description

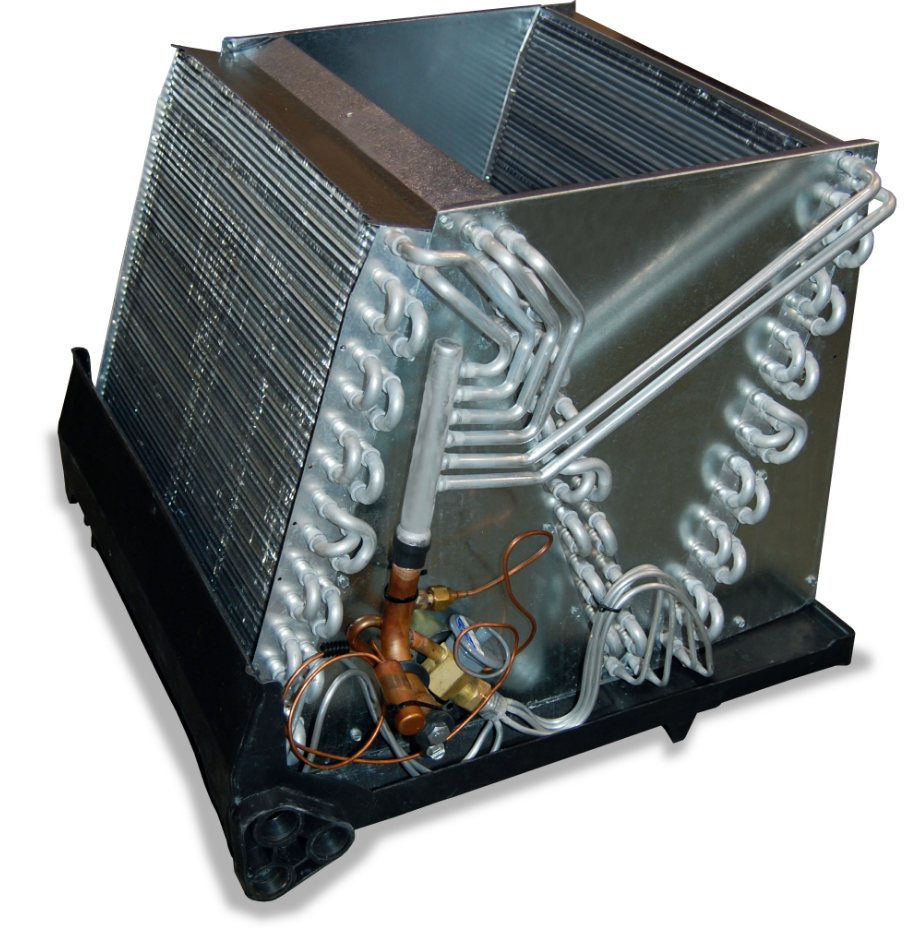

The Rheem RCH-3624HTAVUA is an uncased coil designed for use with R410A refrigerant, with a 3-ton capacity. Constructed with aluminum fins bonded to internally grooved aluminum tubing, this coil is factory tested with an extensive refrigerant leak check. It can be used on air conditioning or heat pumps in vertical applications only.

• Constructed of aluminum fins bonded to internally grooved aluminum tubing
• Features copper sweat refrigerant connections
• Compatible with Germicidal UV Resistant Light System

Product Highlights

This RHEEM uncased coil is designed for vertical air conditioning or heat pump applications and ensures efficient condensate removal. It is compatible with Germicidal UV Resistant Light Systems.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RCH-3624HTAVUA

Technical Specifications

• Material: Aluminum
• Refrigerant: R410A
• Height (inches): 30.9375
• Width (inches): 23.375
• Depth (inches): 21.375
• Cased: No
• BTU: 36000
• Nominal Capacity (Tons): 3
• Configuration: Vertical
• Inlet Size: 3/8
• Outlet Size: 7/8
• Rows: 3
• Type: Cooling
