Rheem RCFZ4821STANMC R-410A TXV N-Coil Multiposition Cased 4 Ton

Product Description

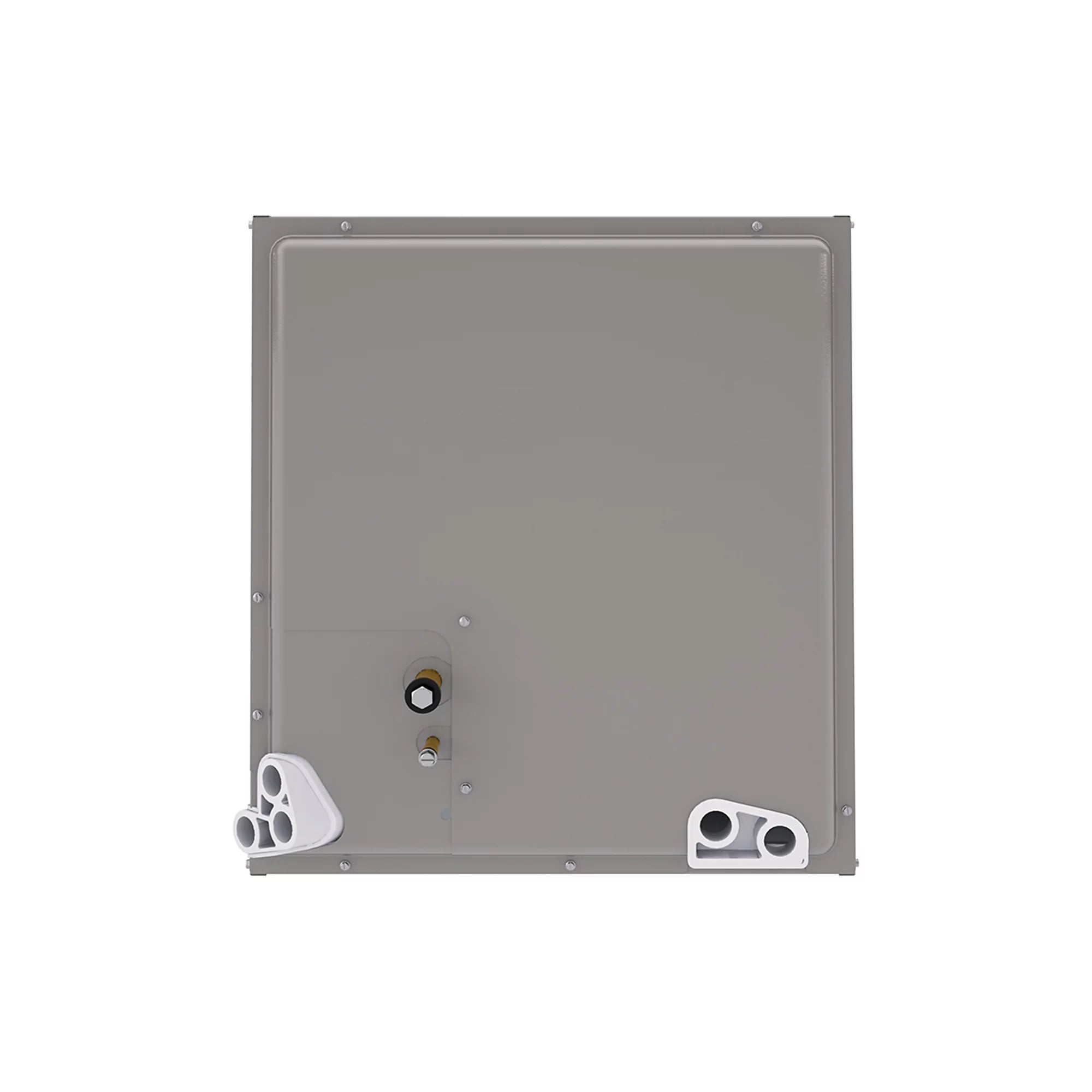

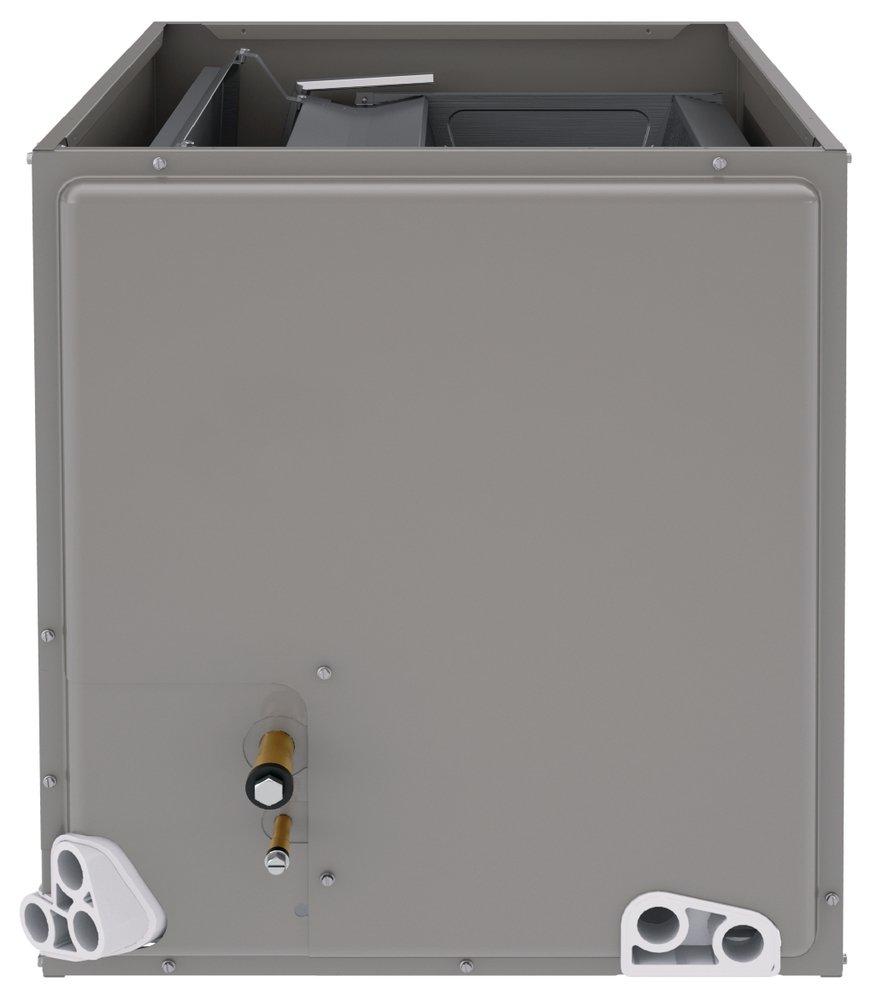

The RHEEM RCFZ4821STANMC is an indoor furnace cased coil designed for use with Rheem outdoor units. It is available for vertical upflow or downflow, and horizontal left or right airflow. Constructed of aluminum fins bonded to internally grooved aluminum tubing and features two 3/4" N.P.T. condensate drain connections. The coil is AHRI certified.

• Designed for use with Rheem outdoor units
• Available for vertical upflow or downflow, and horizontal left or horizontal right airflow
• Constructed of aluminum fins bonded to internally grooved aluminum tubing

Product Highlights

This cased coil features a multi-position design, aluminum fin construction, and is suitable for various airflow configurations. It is designed for use with R-410A refrigerant.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RCFZ4821STANMC
• Country of Origin: MEX

Technical Specifications

• AHRI - Usage: Indoor Coil
• Air Flow Direction: Multi-Position
• Brand: Rheem
• Cabinet Width: 21
• Cased: Yes
• CFM: 1100-1800
• Coil Fin Material: Aluminum
• Coil Pipe Material: Copper
• Coil Shape Designation: N-Coil
• Coil Type: Cased
• Cooling Capacity: 48000
• Corrosion Protected Coil: No
• Drain Connection Quantity: 2
• Drain Connection Size: 3/4"
• Height: 28.5
• Length: 21.6875
• Liquid Line Fitting Type: Sweat or Braze
• Liquid Line Size (OD): 3/8"
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• Product Family: RCFZ
• Refrigerant: R-410A
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 7/8"
• Tonnage: 4
• UL Listed: No
• UL Recognized: No
• BTU Cooling Rating: 48000 Btu/h
• Casing: Cased
• Configuration: Multi-Position
• Liquid Line (OD): 3/8 in
• Material: Aluminum
• Max CFM: 1900 cfm
