Rheem RCFZ3617STANMC R-410A Txv N-Coil Multiposition Cased 3 Ton

Product Description

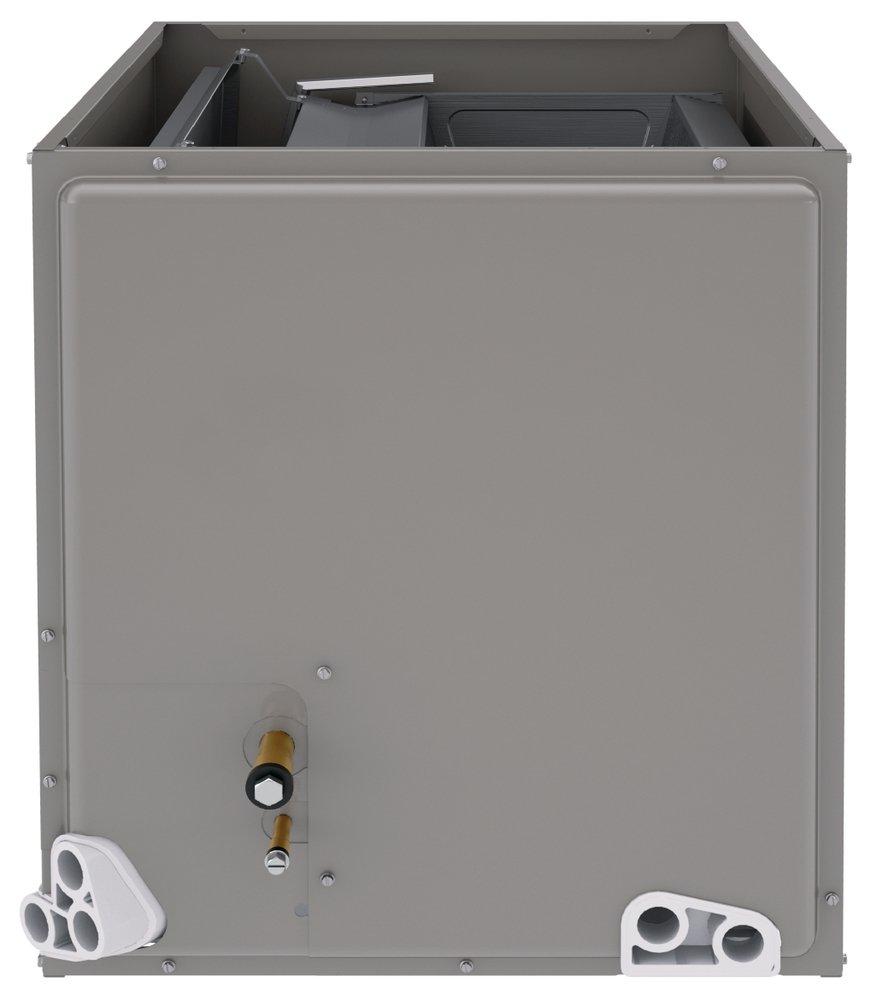

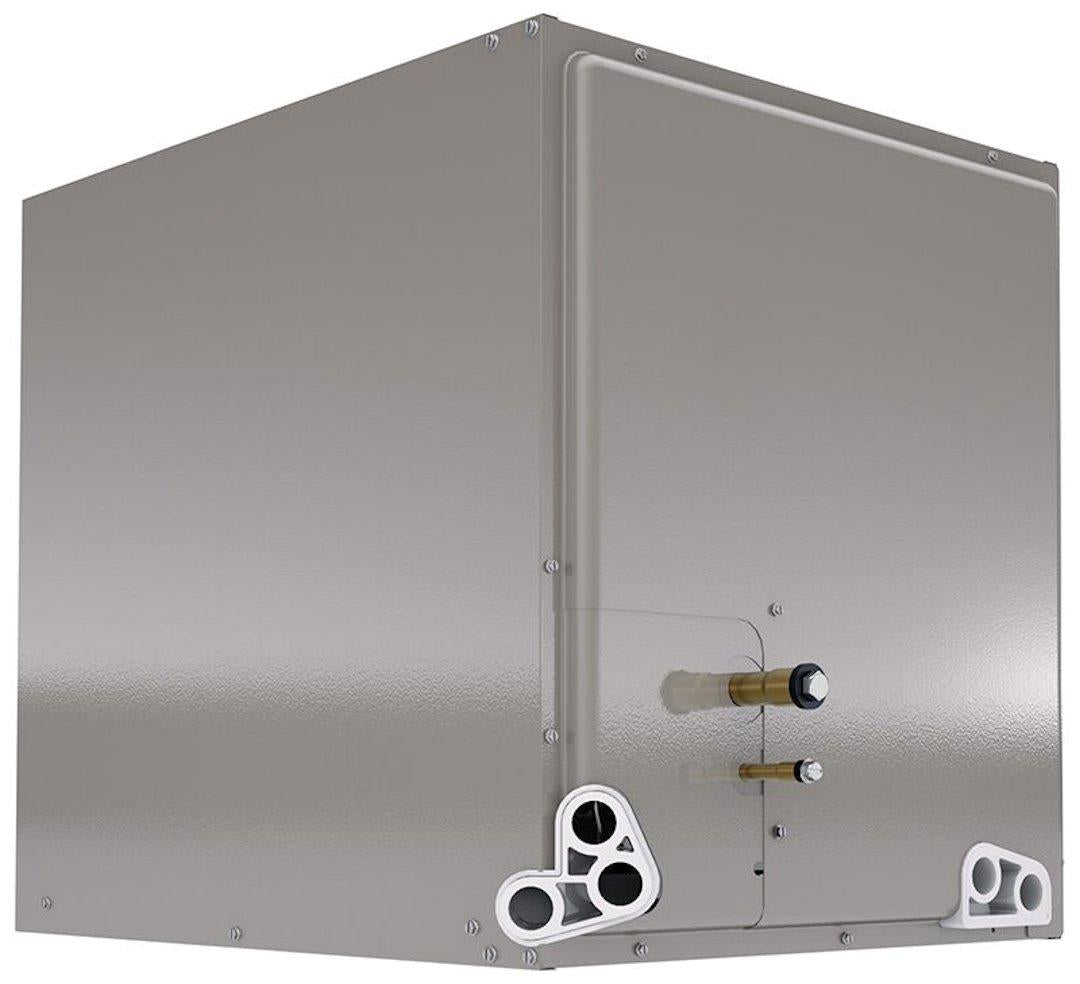

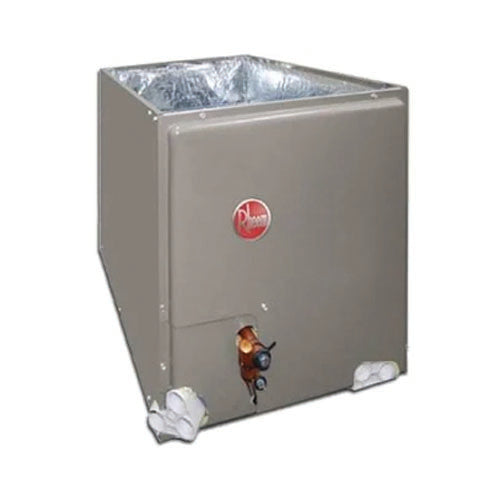

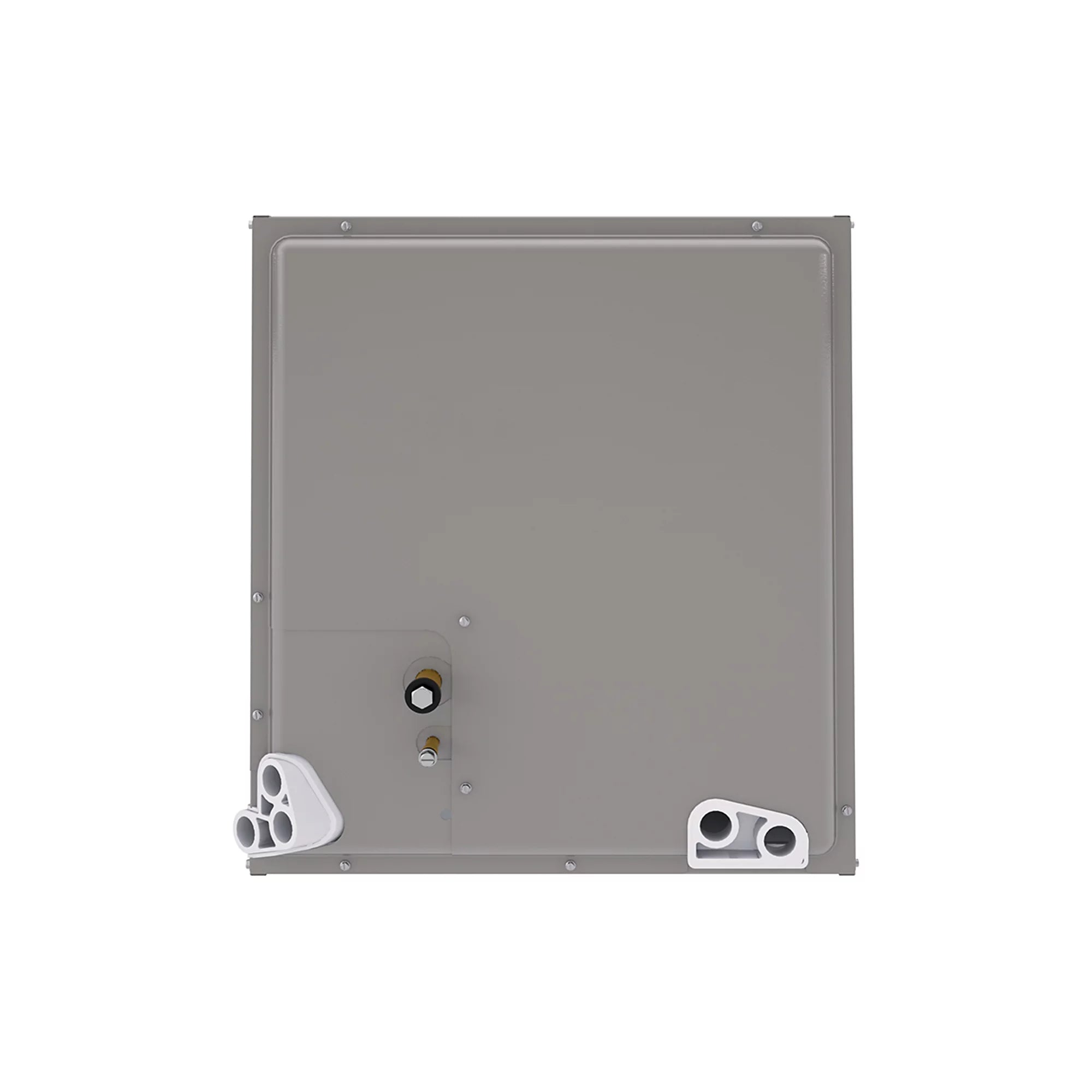

The Rheem RCFZ3617STANMC is a cased coil designed for use with Rheem outdoor units. It is available for vertical upflow or downflow, and horizontal left or horizontal right airflow. Constructed of aluminum fins bonded to internally grooved aluminum tubing. The coil provides a nominal cooling capacity of 36000 BTU/HR and utilizes R-410A refrigerant.

• Designed for use with Rheem outdoor units
• Constructed of aluminum fins bonded to internally grooved aluminum tubing
• Features two 3/4" N.P.T. condensate drain connections

Product Highlights

The Rheem RCFZ3617STANMC is AHRI certified and features a bi-directional airflow, a unique drain pan design, and an N-Coil design.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RCFZ3617STANMC
• Country of Origin: MEX

Technical Specifications

• AHRI Usage: Indoor Coil
• Air Flow Direction: Multi-Position
• Brand: Rheem
• Cabinet Width: 17.5
• Cased: Yes
• CFM: 700-1300
• Coil Fin Material: Aluminum
• Coil Pipe Material: Copper
• Coil Shape Designation: N-Coil
• Coil Type: Cased
• Cooling Capacity: 36000
• Corrosion Protected Coil: No
• Drain Connection Quantity: 2
• Drain Connection Size: 3/4"
• Height: 20.5
• Length: 21.6875
• Liquid Line Fitting Type: Sweat or Braze
• Liquid Line Size (OD): 3/8"
• Metering Device: TXV/TEV - Thermostatic Expansion Valve
• Product Family: RCFZ
• Prop 65: Yes
• Refrigerant: R-410A
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 3/4"
• Tonnage: 3
• Application: Cased Furnace Coil
• Efficiency: Standard
• Connections Liquid/Suction (Inch): 3/8 / 3/4
• Additional Information: Standard Efficiency, TXV Metering Device, Multi-Poise Orientation
• BTU Rating: 36000 Btu/hr
• Series: RCFZ Series
• Suitable For Use With: UV-Resistant Germicidal Light Systems
