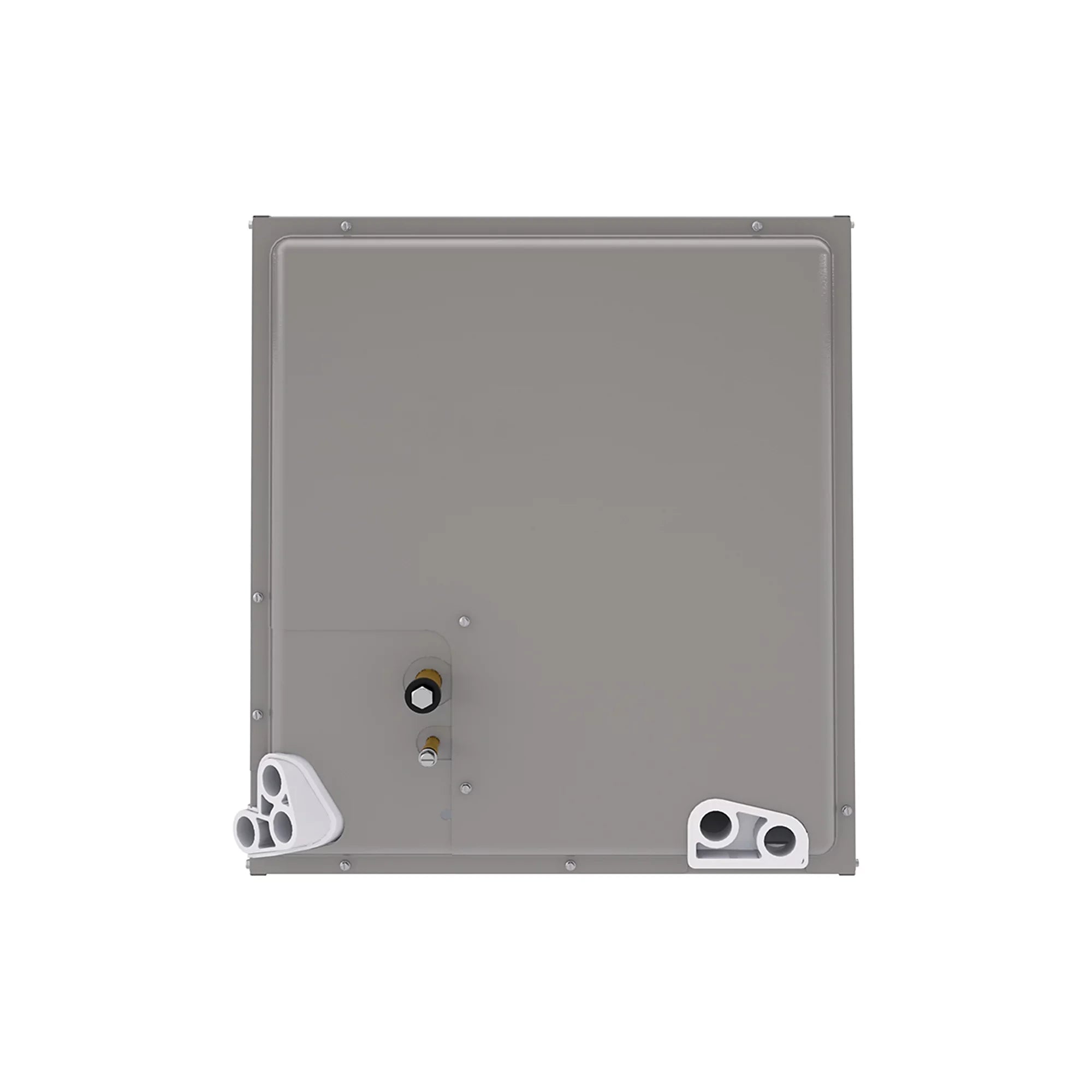

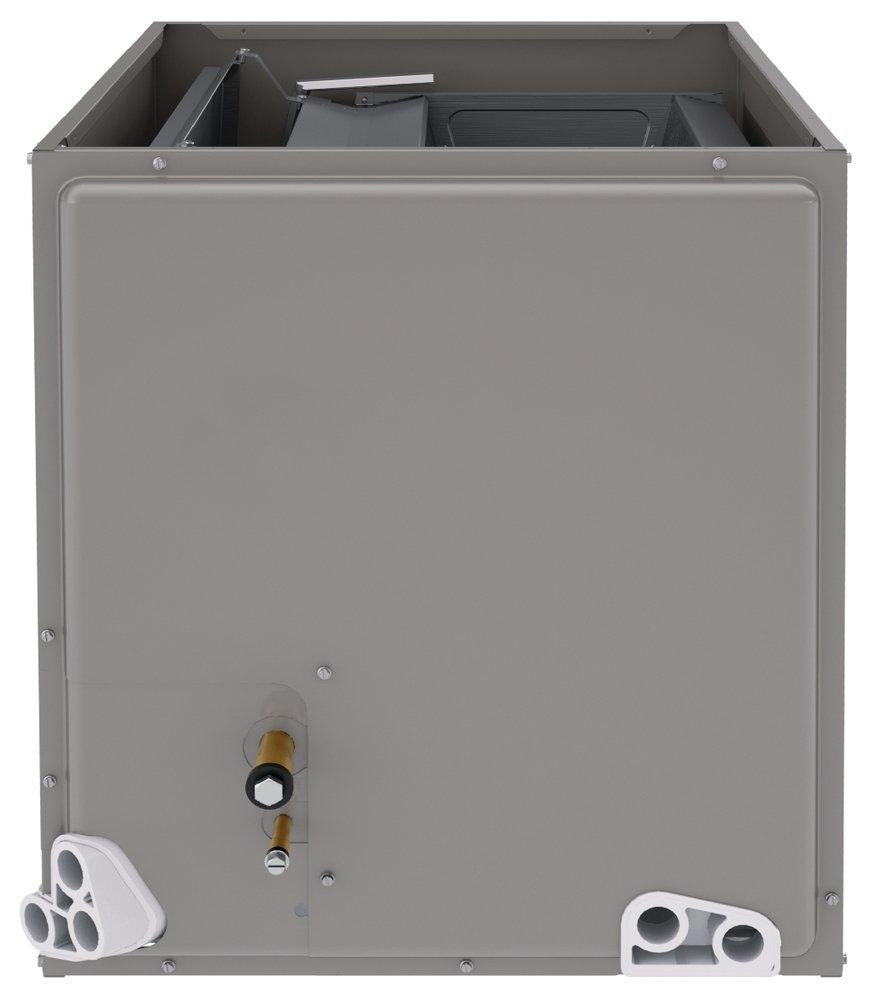

Rheem RCFZ2417MTANMC R-410A TXV N-Coil Multiposition Cased 24k BTU/hr (17.5 in) RCFZ2417MTANMC

RHEEM
Brand: RHEEM
SKU: RCFZ2417MTANMC
Availability: In Stock

Ships via freight in 1-3 business days
$832.08
$832.08
LTL Delivery

This product weighs 60 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Rheem RCFZ2417MTANMC is a multiposition cased evaporator coil designed for R-410A systems and compatible with thermostatic expansion valves (TXV). It provides a nominal cooling capacity of 24,000 BTU/hr (2 ton) and uses an N-coil configuration with aluminum fins bonded to internally grooved aluminum tubing. The coil includes dual 3/4" N.P.T. condensate drains, copper sweat refrigerant connections, and is AHRI certified for use with Rheem outdoor units.

  • Multiposition cased design with bi-directional airflow for vertical upflow/downflow and horizontal left/right installations
  • N-coil construction with aluminum fins bonded to internally grooved aluminum tubing; medium efficiency, TXV compatible
  • Dual 3/4" N.P.T. condensate drains, copper sweat or braze refrigerant connections (3/8" liquid, 3/4" suction)

Product Highlights

2 ton (24,000 BTU/hr) R-410A cased N-coil, multiposition installation, TXV compatible, dual 3/4" condensate drains

Product Information

Standard Information

  • Brand: RHEEM
  • Manufacturer Part Number: RCFZ2417MTANMC
  • Country of Origin: United States
Technical Specifications
Brand
Rheem
MPN
RCFZ2417MTANMC
Product Family
RCFZ (Endeavor Line)
Model/Designation
RCFZ2417MTANMC M1
Refrigerant
R-410A
Metering Device
TXV/TEV (Thermostatic Expansion Valve)
Coil Type
N-Coil
Casing
Cased
Capacity (BTU/hr)
24000
Capacity (tons)
2
CFM
600-900
Orientation
Multi-position (multipose)
Air Flow Direction
Bi-directional
Coil Fin Material
Aluminum
Tube Material
Internally grooved aluminum tubing
Width
17.5 in
Height
20.5 in
Length
21.6875 in
Cabinet Width
19.5 in
Weight
60 lbs
Drain Connection Size
3/4" N.P.T.
Drain Connection Quantity
2
Liquid Line Size (OD)
3/8"
Suction Line Size (OD)
3/4"
Liquid Line Fitting Type
Sweat or Braze
Suction Line Fitting Type
Sweat or Braze
Condensate Drain Pan Material
Heat-resistant corrosion-free thermal-set material
Compatibility
Designed for use with Rheem outdoor units
AHRI Certification
Yes
UPC
662021586590
Prop 65
Yes
Coil Shape Designation
N-Coil
Application
For gas and oil furnaces
