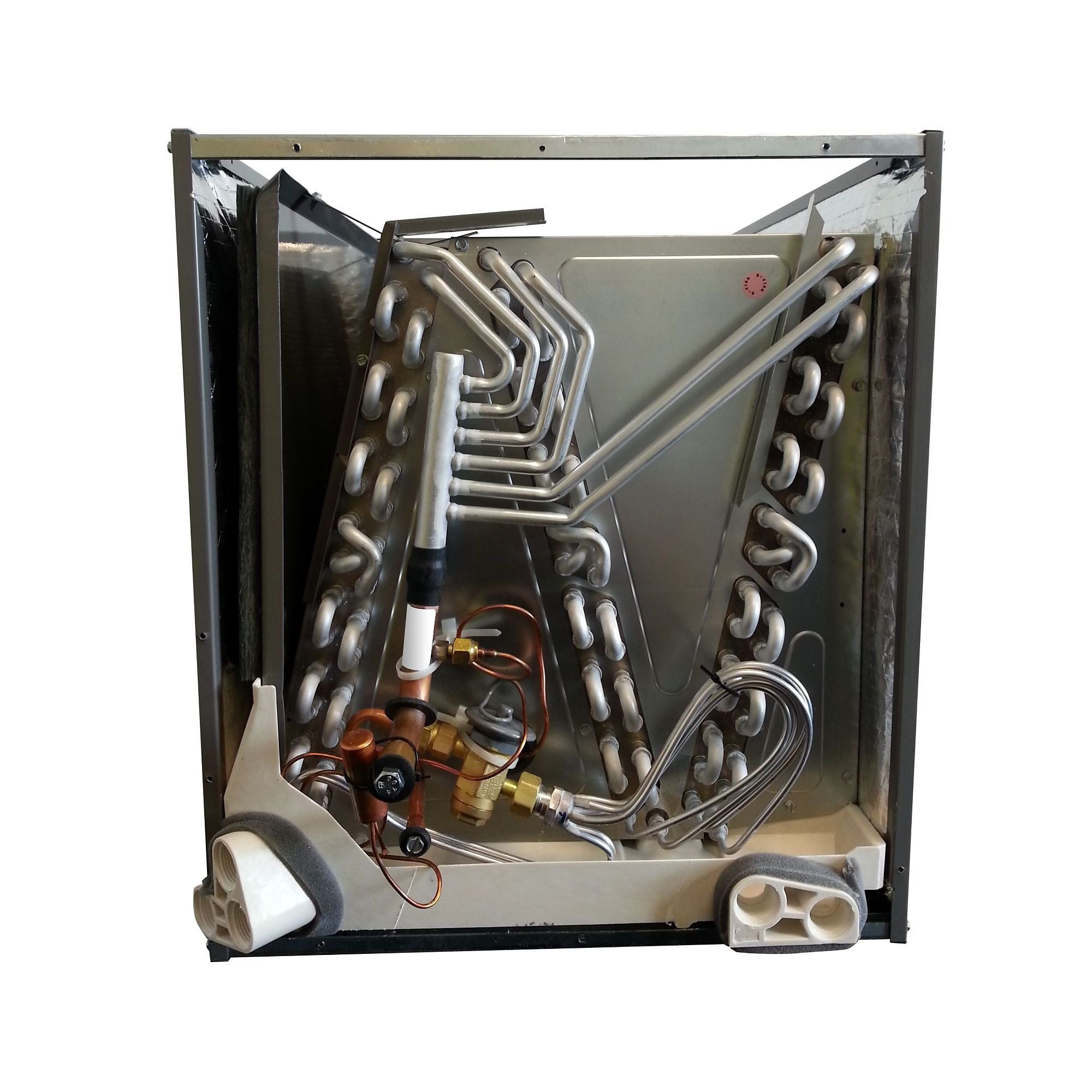

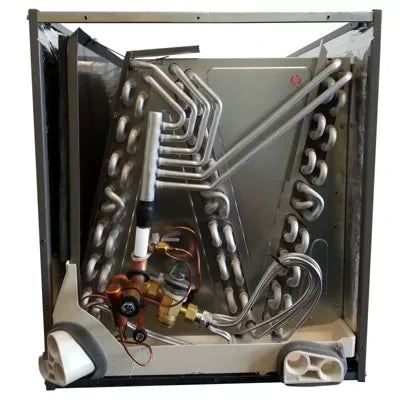

Rheem RCF6024HTAMCA 5 Ton Cased Evaporator Coil 60000 BTU/hr (5 Ton)

Product Description

Rheem RCF6024HTAMCA is a 5 ton (60,000 BTU/hr) cased evaporator coil designed for multi-position indoor installations with vertical upflow/downflow and horizontal left/right airflow. The coil uses aluminum fins bonded to internally grooved aluminum tubing, copper sweat refrigerant connections, and is factory tested for refrigerant leaks. It features Chatleff metering device connections, dual 3/4" N.P.T. condensate drain sets, a thermal-set condensate pan, UV compatibility, and AHRI certification.

• Multi-position airflow for vertical upflow/downflow and horizontal left/right installations; nominal capacity 60,000 BTU/hr (5 ton); rated CFM 1400-1800.
• Constructed with aluminum fins bonded to internally grooved aluminum tubing; copper sweat or braze refrigerant connections; N-Coil design to minimize installation height.
• Two sets of 3/4" N.P.T. condensate drain connections, Chatleff metering device connections (TXV inlet/outlet and equalizer), thermal-set corrosion-resistant drain pan, UV resistant.

Product Highlights

5 ton R-410A cased evaporator coil, multi-position airflow, aluminum internal construction, two 3/4" NPT drain sets, AHRI certified for use with Rheem outdoor units.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RCF6024HTAMCA
• Country of Origin: USA
