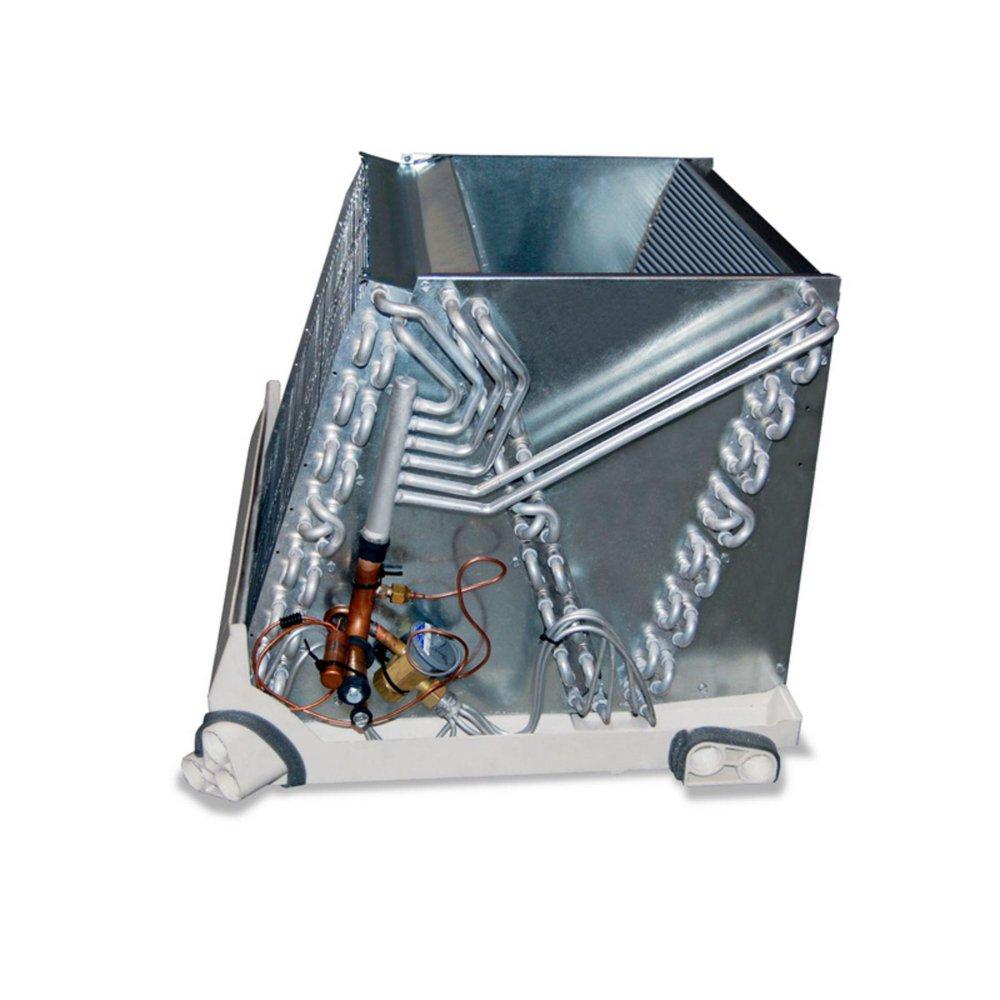

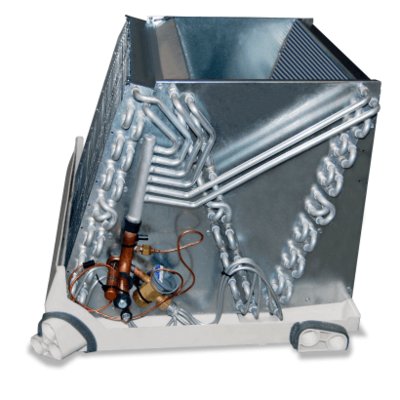

Rheem RCF3617STAVUA RCF Series 2.5 - 3 Ton Convertible Aluminum and Copper Uncased Coil

Product Description

The Rheem RCF3617STAVUA RCF Series 2.5 - 3 Ton Convertible Aluminum and Copper Uncased Coil is constructed of aluminum fins bonded to internally grooved aluminum tubing. This evaporator coil is tested at the factory with an extensive refrigerant leak check and features copper sweat refrigerant connections. Approved for system application with a variety of Rheem outdoor units.

• Constructed of aluminum fins bonded to internally grooved aluminum tubing
• Coils are tested at the factory with an extensive refrigerant leak check
• Coils have copper sweat refrigerant connections

Product Highlights

Aluminum and copper coil with refrigerant leak check. Approved for Rheem outdoor unit system applications. Features NPT condensate drain connections.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RCF3617STAVUA
• Country of Origin: USA

Technical Specifications

• A2L Compatible: No
• BTU: 36000
• BTU Cooling Rating: 36000 Btu/h
• CFM: 1900 ft3/min
• Coil Type: Evaporator
• Collection: RCF Series
• Configuration: Convertible, Vertical
• Depth: 21.375 in
• Height: 17.875 in
• Indoor Outdoor: Indoor
• Liquid Line (OD): 3/8 in
• MBH: 36
• Material: Aluminum, Copper
• Max CFM: 1900 cfm
• Refrigerant: R-410A
• Refrigeration Control Type: TXV
• SEER: 20.5
• Suction Line (OD): 3/4 in
• Tonnage: 3 Ton
• UPC: 662021306693
• Width: 17-1/2 in
• Nominal Tonnage (Tons): 3
• Refrigerant Type: R410A
• Cabinet Width (Inches): 17.5
• Efficiency: Standard
• Casing: Uncased
• Connections Liquid/Suction (Inch): 3/8 / 3/4
• Metering Device: TXV
• Make: Rheem
• Manufacturer: Rheem Manufacturing
• Category: Cooling > Evaporator Coils
• Model code: RCF3617STAVUA
• Additional info: R-410A, Airflow Capacity 600-1,900 CFM, Up to 20.5 SEER AC, HP, and Furnace applications
• Air Flow Direction: Upflow~Downflow~Horizontal~Multi-Position
• BTU Rating: 36,000 BTU/h
• Coil Casing: Uncased
• Coil Material: Aluminum Fin~Aluminum Tube
• Liquid Line Size: 3/8 in
• Model Number: RCF
• Number of Rows: 2
• Product Family: RCF
• Suction Line Size: 3/4 in
• Unit Cooling: Yes
• Coil Fin Material: Aluminum
• Coil Pipe Material: Aluminum
• Coil Shape Designation: N-Coil
• Corrosion Protected Coil: No
• Evaporator Coil Fins per Inch (FPI): 16
• EAN: 0662021306693
• Liquid Line Size (OD): 3/8"
• Cooling Capacity: 36,000
