Rheem RCF-3617SEAMCA Cased Coil R410A 2.5 Ton - 3 Ton

Product Description

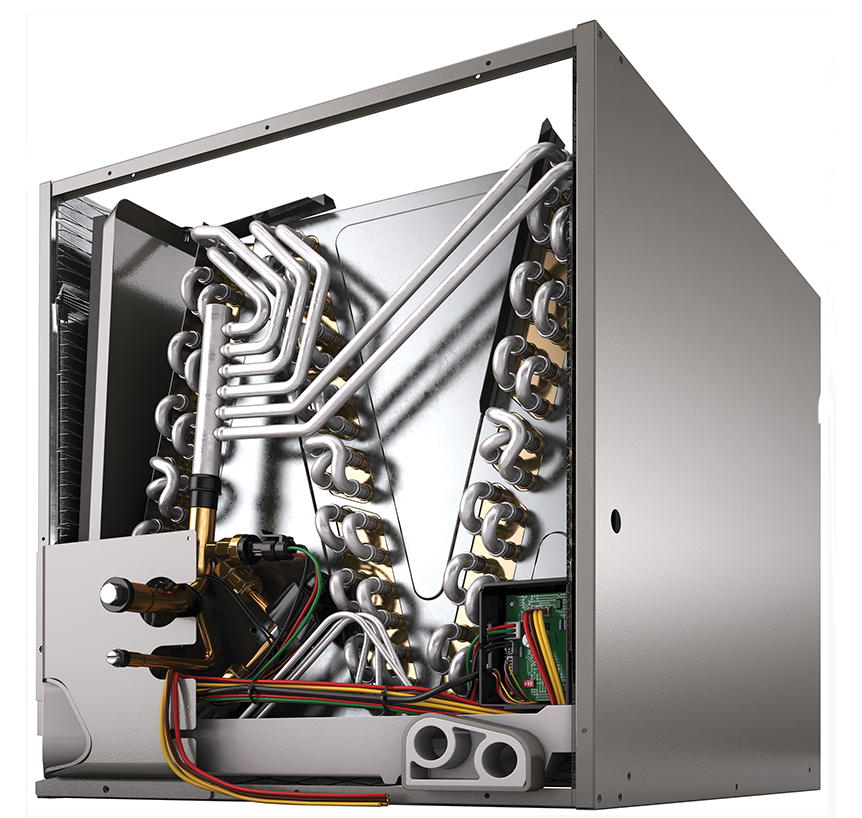

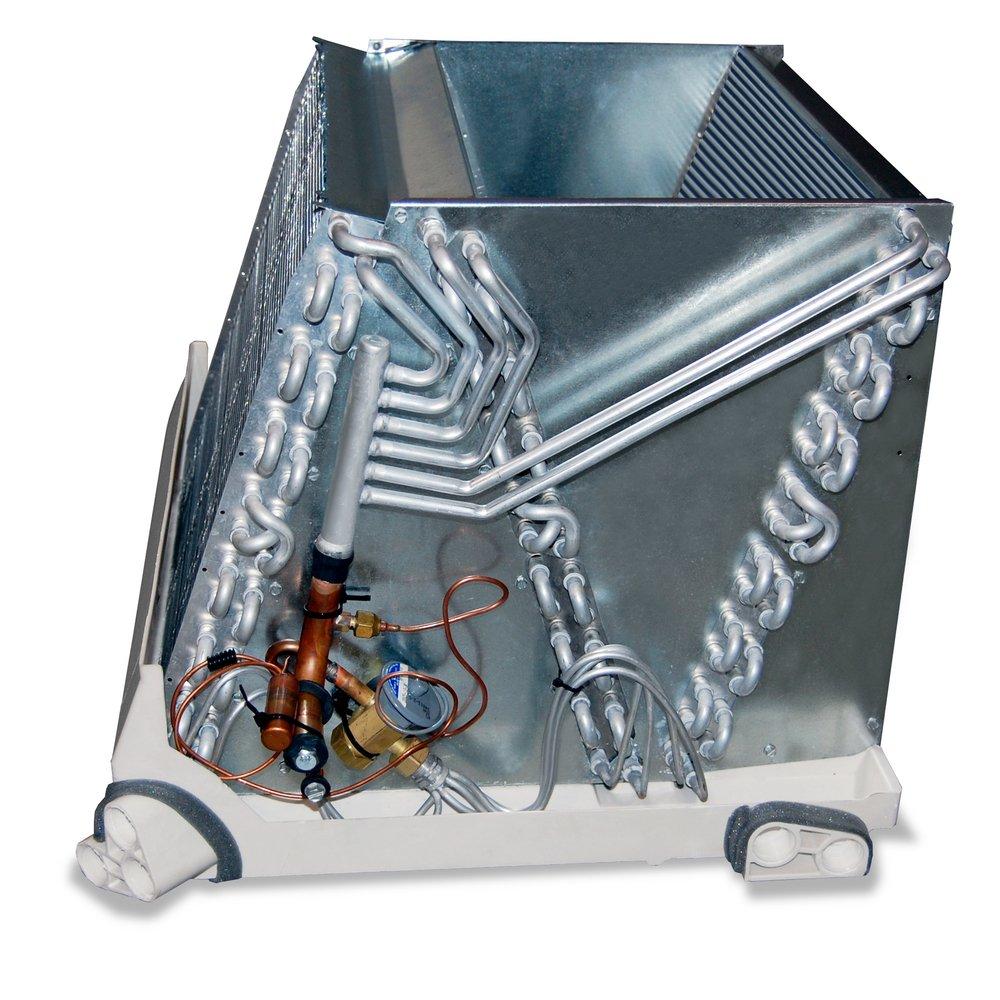

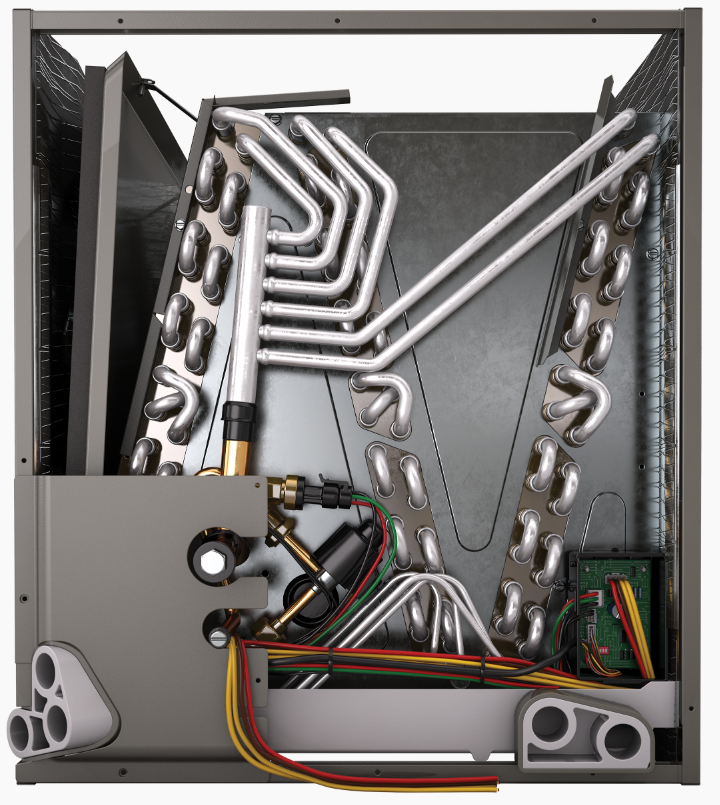

The Rheem RCF-3617SEAMCA cased coil is designed for R410A refrigerant systems. This coil is compatible with a range of Rheem outdoor units and furnaces. It features aluminum fins bonded to internally grooved aluminum tubing. The coil is factory tested for refrigerant leaks and has copper sweat refrigerant connections.

• Constructed of aluminum fins bonded to internally grooved aluminum tubing.
• Coils are tested at the factory with an extensive refrigerant leak check.
• Features two sets of 3/4 in NPT condensate drain connections for ease of connection.

Product Highlights

This multi-position coil is suitable for upflow, downflow, and horizontal airflow configurations. It features an EEV for precise cooling control and a corrosion-free drain pan.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RCF-3617SEAMCA

Technical Specifications

• Type: Coil
• SubType: Cased Coil
• MPN: RCF3617SEAMCA
• ABRPN: RCF3617SEAMCA
• Size: 2.5 Ton - 3 Ton
• Series: RCF Series
• Efficiency: 17 SEER - 20 SEER
• Brand: Rheem
• Refrigerant: R-410A
• SKU: 93885
• BTU: 36000
• BTU Cooling Rating: 36000 Btu/h
• CFM: 1900 ft3/min
• Coil Type: Evaporator
• Configuration: Multi-Position
• Depth: 21-11/16 in
• Height: 20 in
• Indoor Outdoor: Indoor
• Liquid Line (OD): 3/8 in
• MBH: 36
• Material: Aluminum, Copper
• Max CFM: 1900 cfm
• Power Source: Electric
• Refrigeration Control Type: EEV
• SEER: 20.5
• Suction Line (OD): 3/4 in
• Tonnage: 3 Ton
• Width: 17-1/2 in
• BTU Rating: 36000 Btu/hr
• CFM Rating: 700 to 1300 cfm
• Coil Casing: Cased
• Coil Material: Aluminum Fin~Aluminum Tube
• Drain Pan Material: Composite / Polymer
• Liquid Line Size: 3/8 in
• Number of Rows: 2
• Product Family: RCF Series
• Air Flow Direction: Upflow~Downflow~Horizontal~Multi-Position
• Suction Line Size: 3/4 in
• Nominal Capacity (Tons): 3
• Inlet Size: 3/8
• Outlet Size: 3/4
