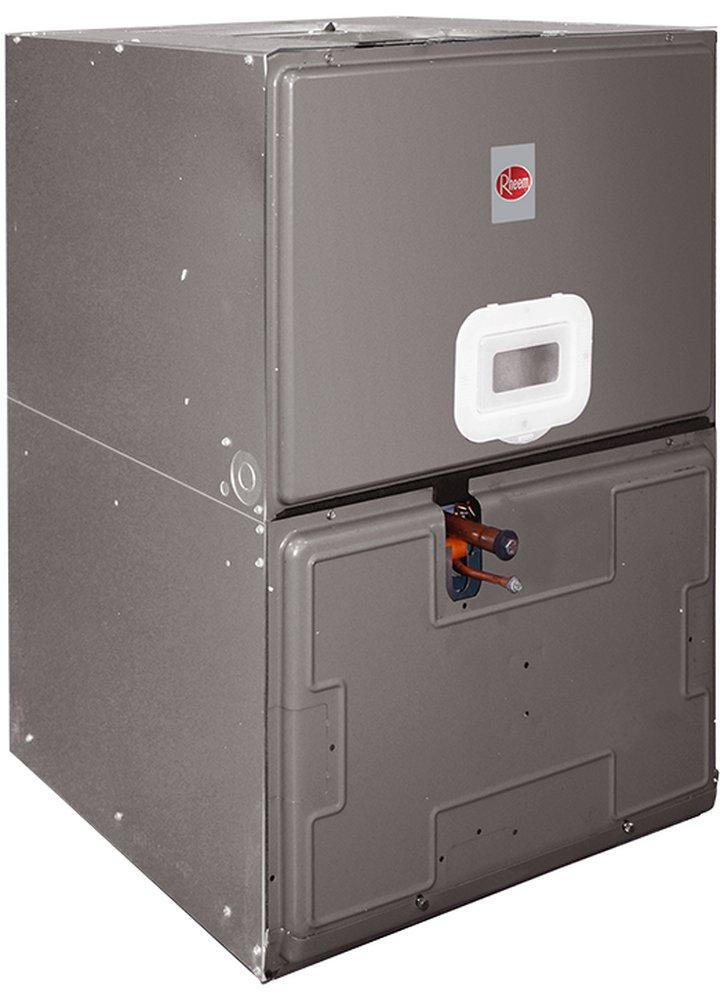

Rheem RB2TY6024STANMJB10 Endeavor® Line Air Handler 5 Ton

Product Description

The Rheem RB2TY6024STANMJB10 Endeavor® Line air handler features a two-stage operation and quiet performance due to its insulated cabinet. Designed for versatility, it stands 35" tall and offers 4-way field convertible airflow. The rugged steel cabinet ensures added strength, while the integrated PlusOne® Refrigerant Detection System™ enhances commissioning and system protection.

• Quiet operation due to insulated cabinet construction.
• Rugged steel cabinet designed for strength and versatility.
• Compact design with 4-way field convertible airflow.

Product Highlights

This Rheem air handler provides efficient and quiet operation with a focus on sustainability and easy installation.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: RB2TY6024STANMJB10

Technical Specifications

• Type: Multipurpose Air Handler
• Voltage: 208 to 240 V
• Number of Phases: 1
• Frequency: 60 Hz
• Stages of Airflow: Two-Stage
• Motor Type: Constant Torque
• Refrigerant: R-454B
• Nominal Capacity: 60000 Btu/h
• Nominal Capacity kW: 17.58 kW
• Nominal Capacity TR: 5 TR
• Efficiency: Standard
• Metering: TXV
• Controls: Non-communicating
• Coil Series: Multiflex
• Blower Motor: 3/4 hp
• Blower Motor W: 559 W
• Blower Motor - RPM: 300 to 1100
• Motor Amps: 5.0 A
• Minimum Circuit Ampacity: 52 A
• Maximum Overcurrent Protection: 60 A
• Cooling Capacity: 60000 Btu/h
• Cooling Capacity TR: 5 TR
• Air Conditioning Maximum Heat: 2025 ft³/min
• Air Conditioning Maximum Cool: 2250 ft³/min
• Air Conditioning Nominal Heat: 1800 ft³/min
• Air Conditioning Nominal Cool: 2000 ft³/min
• Air Conditioning Minimum Heat: 1620 ft³/min
• Air Conditioning Minimum Cool: 1800 ft³/min
• Maximum Electric Heating: 18 kW
• Minimum Electric Heat CFM: 1460
• Maximum Electric Heat Rise: 43 °F
• Depth: 22 1/2 in
• Width: 24 1/2 in
• Height: 35 in
• Suply Duct: 11 3/4 in
• A2L Compatible: Yes
• BTU Cooling Rating: 60000 Btu/h
• Blower Type: ECM Constant Torque
• CFM: 1800
• Coil Type: MultiFlex
• Collection: Endeavor® Line
• Communicating: Non-Communicating
• Configuration: Multi-Position
• Horsepower: 3/4 hp
• MBH: 60
• Max CFM: 2250
• Phase: Single Phase
• Power Source: Electric
• Tonnage: 5 Ton
• UL Listed: Yes
• Volts: 208/240V
• Air Flow Direction: Upflow~Downflow~Horizontal~Multi-Position
• CFM Airflow (Custom): 2,000 CFM
• CFM Airflow: 2,000 CFM
• Integrated Mitigation Control: Yes
• Liquid Line Size: 3/8 in
• Max Breaker Size: 60 A
• Model Number: RB2TY
• Nominal Supplemental Electric Heat (kW): 10 kW
• Number of Speeds: 2
• Product Family: Endeavor Line
• Refrigerant Type: R-454B
• Refrigeration Control Type: TXV
• Suction Line Size: 7/8 in
• ABRPN: RB2TY6024STANMJB10
• Brand: Rheem
• Product Status: Nonstock
